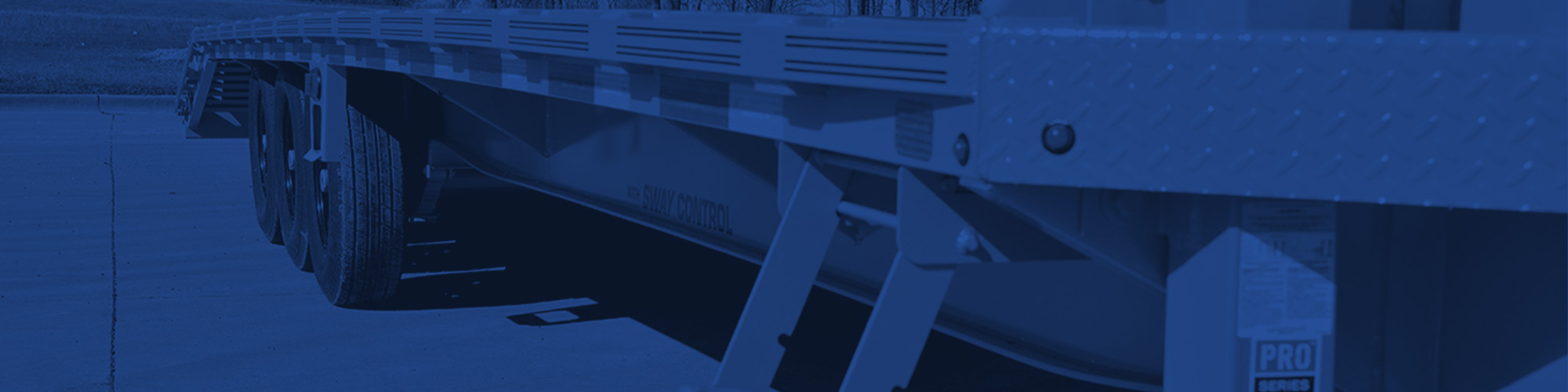

Diamond C
FMAX307
24,000 lb (10,886 kg)
Load capacity
Documents
Full specifications
| Axles | 3 × 7,000 lb Lippert Super Lube axles | ↗ |
| Base MSRP | 22,286 USD | ↗ |
| Bed Width | 102 in (259 cm) | ↗ |
| Empty Weight Range | 6,740–8,180 lbs (3,057–3,710 kg) | ↗ |
| Frame Height | 16" | ↗ |
| GVWR | 24,000 lbs (10,886 kg) | ↗ |
| Lengths Available | 25' – 40' | ↗ |
| Pull Type | Gooseneck | ↗ |
| Standard Tires | 235/80R16 14 Ply All-Steel Radials | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
