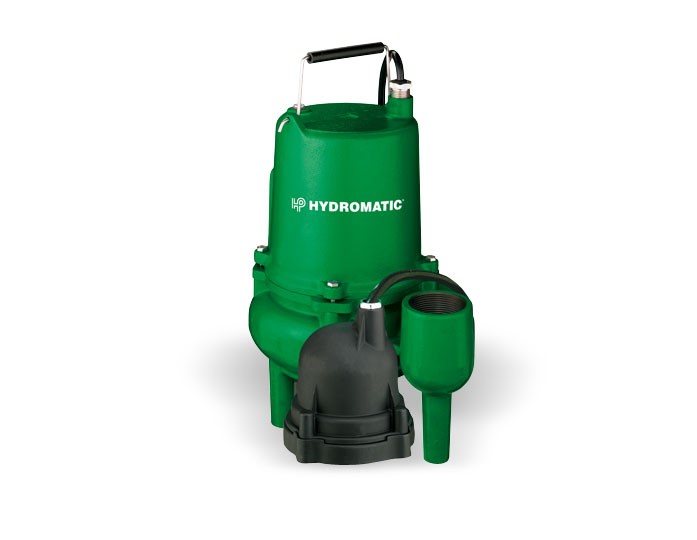

Hydromatic
SP40
130 gpm
Flow rate
26 ft (7.9 m)
Max head
2 in NPT
discharge port diameter
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Flow rate | Max head | discharge port diameter |
|---|---|---|---|---|
| BJM Pumps SV400 | 75% | 70 gpm | 25 ft (7.6 m) | - |
| Grundfos Sololift2 C-3 | 70% | 54 gpm | 26.2 ft (8.0 m) | - |
| Ebara RIGHT | 68% | 79 gpm | 34.4 ft (10.5 m) | - |
| BJM Pumps ALPHA V 2M | 66% | 65 gpm | 32 ft (9.8 m) | - |
| Godwin GSP20SL | 66% | 140 gpm | 65 ft (19.8 m) | - |
| BJM Pumps JX15SS | 65% | 110 gpm | 58 ft (17.7 m) | - |
Documents
Full specifications
| Discharge Size | 2 in NPT | ↗ |
| Full Load Amps (115V) | 7.5 A | ↗ |
| Full Load Amps (230V) | 3.8 A | ↗ |
| Hertz | 60 Hz | ↗ |
| Horsepower | 4/10 HP | ↗ |
| Impeller Material | Thermoplastic | ↗ |
| Insulation Class | A | ↗ |
| Lower Bearing | Single Row Ball Bearing | ↗ |
| Max Capacity | 130 GPM | ↗ |
| Max Head | 26 ft (7.9 m) | ↗ |
| Max Liquid Temperature | 140 °F | ↗ |
| Mechanical Shaft Seal | Carbon/Ceramic | ↗ |
| Motor Housing Material | Cast Iron | ↗ |
| Motor Type | PSC | ↗ |
| NEMA Design | A | ↗ |
| Operation | Continuous Duty | ↗ |
| Phase | 1 | ↗ |
| Power Cord | 10 ft SJTW std (20 ft opt) | ↗ |
| Pump Casing Material | Cast Iron | ↗ |
| RPM | 1650 RPM | ↗ |
| Shaft Material | Stainless Steel | ↗ |
| Solids Handling | 1-1/4 in | ↗ |
| Unit Weight | 47 lbs (21.3 kg) | ↗ |
| Voltage | 115/230 V | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
