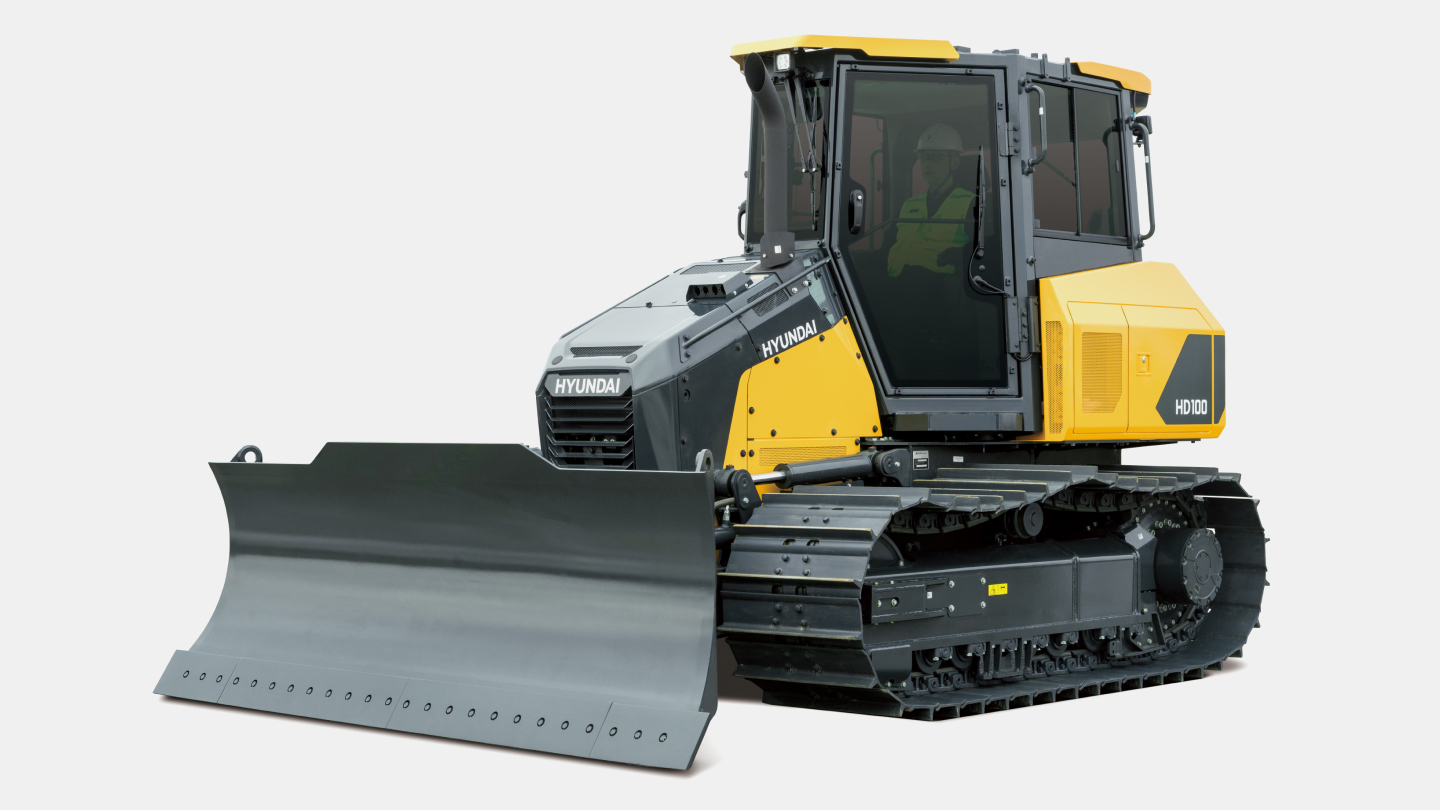

Hyundai Construction Equipment
HD100
121 hp
Engine power
23,589 lb (10,700 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Develon DD100 XL | 97% | 115 hp | 23,287 lb (10,563 kg) |
| Develon DD100 LGP | 96% | 115 hp | 24,286 lb (11,016 kg) |
| Caterpillar D3 | 87% | 104 hp | 20,640 lb (9,362 kg) |
| Develon DD130 XL | 79% | 146 hp | 31,074 lb (14,095 kg) |
| Develon DD130 LGP | 78% | 146 hp | 32,038 lb (14,532 kg) |
| Case 1650L | 68% | 164 hp | 38,257 lb (17,353 kg) |
Documents
Full specifications
| Blade Capacity | 2.58 m³ | ↗ |
| Blade Width | 109 in (2,770 mm) | ↗ |
| Emission Standard | STAGE V | ↗ |
| Engine Model | G2 DM03-LED00 | ↗ |
| Fuel Tank | 190 L | ↗ |
| Max Torque | 54.045 kgf·m | ↗ |
| Operating Weight | 10.7 ton | ↗ |
| Overall Height | 114 in (2,900 mm) | ↗ |
| Overall Length | 221 in (5,618 mm) | ↗ |
| Rated Power | 90 kW | ↗ |
| Track Gauge | 74.4 in (1,890 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
