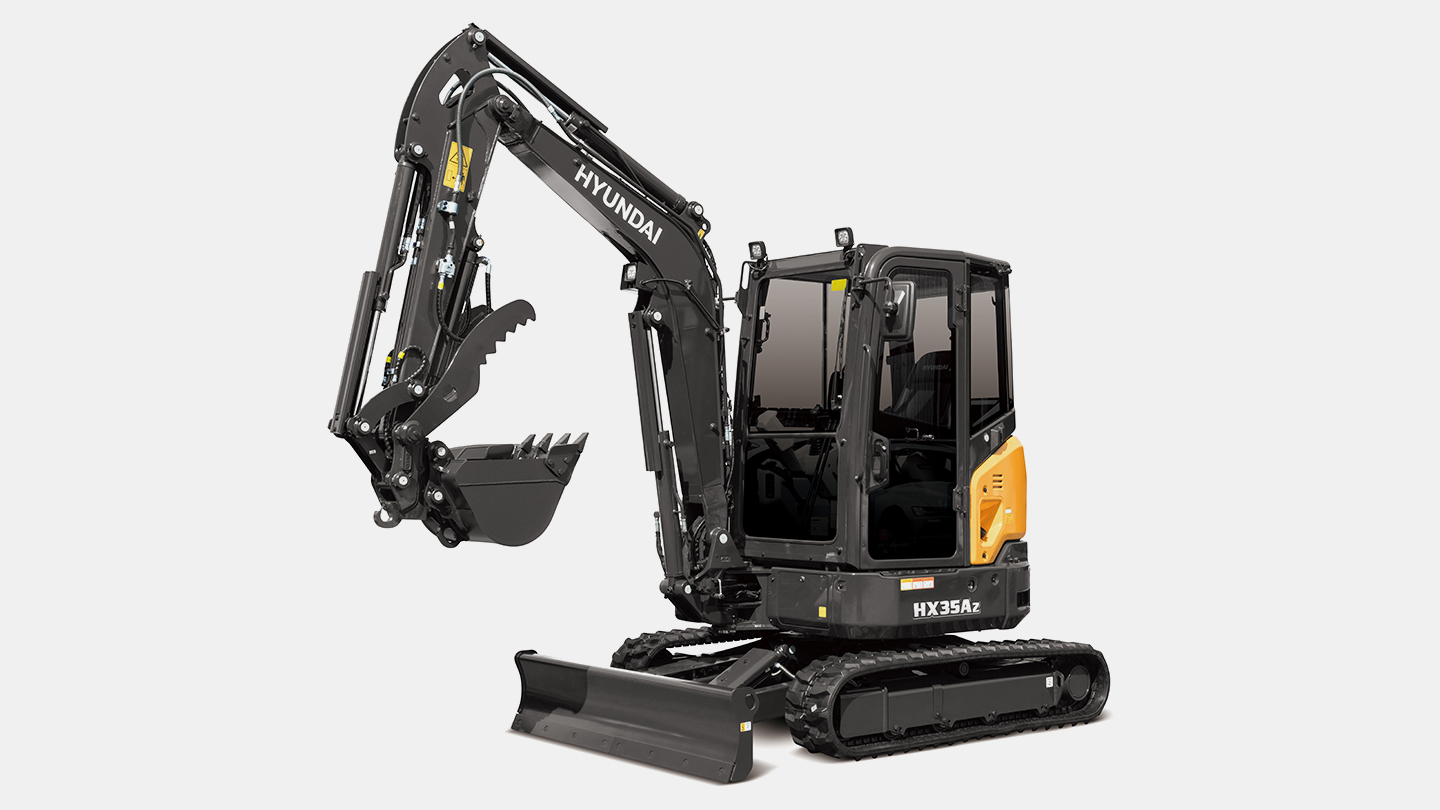

Hyundai Construction Equipment
HX35AZ
25 hp
Engine power
9.8 ft (3.0 m)
Max dig depth
17.4 ft (5.3 m)
Max reach
8,554 lb (3,880 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max dig depth | Max reach |
|---|---|---|---|---|
| Develon DX35Z-7 | 98% | - | 10 ft (3.0 m) | - |
| Hitachi ZX33U-6 | 98% | 25 hp | 10.3 ft (3.1 m) | - |
| Case CX35D | 97% | 24 hp | 9.4 ft (2.9 m) | - |
| John Deere 35P | 96% | 23 hp | 10 ft (3.0 m) | 17.1 ft (5.2 m) |
| Case CX36 | 96% | 23 hp | - | - |
| Case CX36B | 96% | 23 hp | - | - |
Documents
Full specifications
| Bucket Capacity | 0.11 m³ | ↗ |
| Emission Standard | STAGE V | ↗ |
| Engine Model | D1703 | ↗ |
| Fuel Tank | 46.8 L | ↗ |
| Hydraulic Tank | 36 L | ↗ |
| Max Digging Depth | 117 in (2,980 mm) | ↗ |
| Max Digging Reach | 208 in (5,290 mm) | ↗ |
| Max Torque | 9.9 kgf·m | ↗ |
| Operating Weight | 3.880 ton | ↗ |
| Rated Power | 18.5 kW | ↗ |
| Swing Speed | 9.4 rpm | ↗ |
| Travel Speed | 2.6 km/h | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
