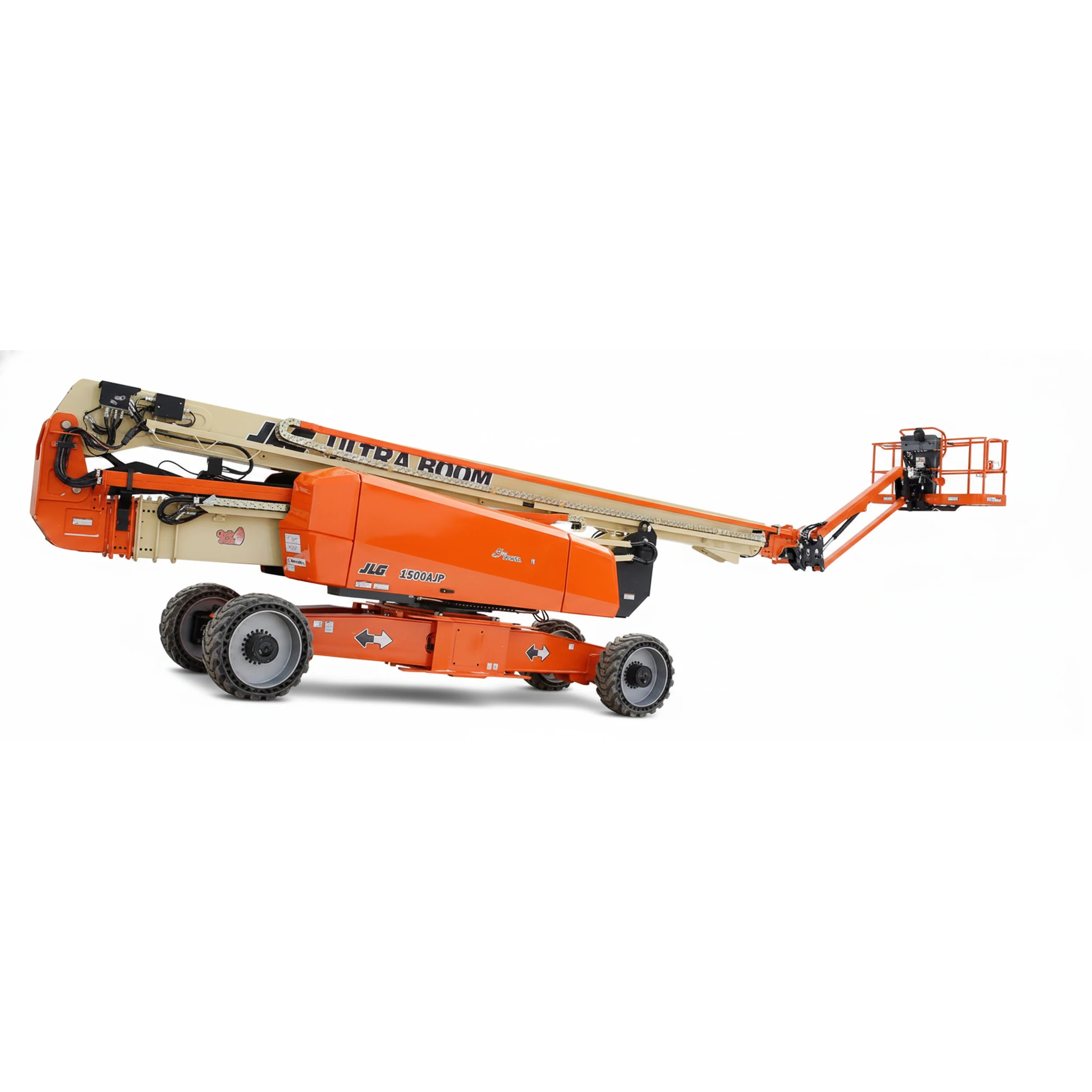

JLG
1500AJP
100 hp
Engine power
75 ft (22.9 m)
Max reach
57,406 lb (26,039 kg)
Operating weight
1,001 lb (454 kg)
Platform capacity
150 ft (45.7 m)
Working height
4.5 km/h
drive speed
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max reach | Operating weight |
|---|---|---|---|---|
| Teupen LEO39GTplus | 86% | - | - | - |
| Genie SX180 | 84% | 74 hp | 80 ft (24.4 m) | 55,001 lb (24,948 kg) |
| MEC 135-RJ | 83% | 74 hp | 80.1 ft (24.4 m) | 44,776 lb (20,310 kg) |
| Genie Z-135 | 83% | 79 hp | 69.8 ft (21.3 m) | 44,899 lb (20,366 kg) |
| Genie ZX-135 | 83% | 74 hp | 69.8 ft (21.3 m) | 46,500 lb (21,092 kg) |
| Genie 180 | 83% | 74 hp | - | 55,001 lb (24,948 kg) |
Documents
Full specifications
| Axle Oscillation | 0 in (0 mm) | ↗ |
| Gradeability | 40 % | ↗ |
| Horizontal Outreach | 75 ft 0 in | ↗ |
| Max Platform Capacity | 1,000 lb (454 kg) | ↗ |
| Max Platform Height | 150 ft 0 in | ↗ |
| Swing | 360 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
