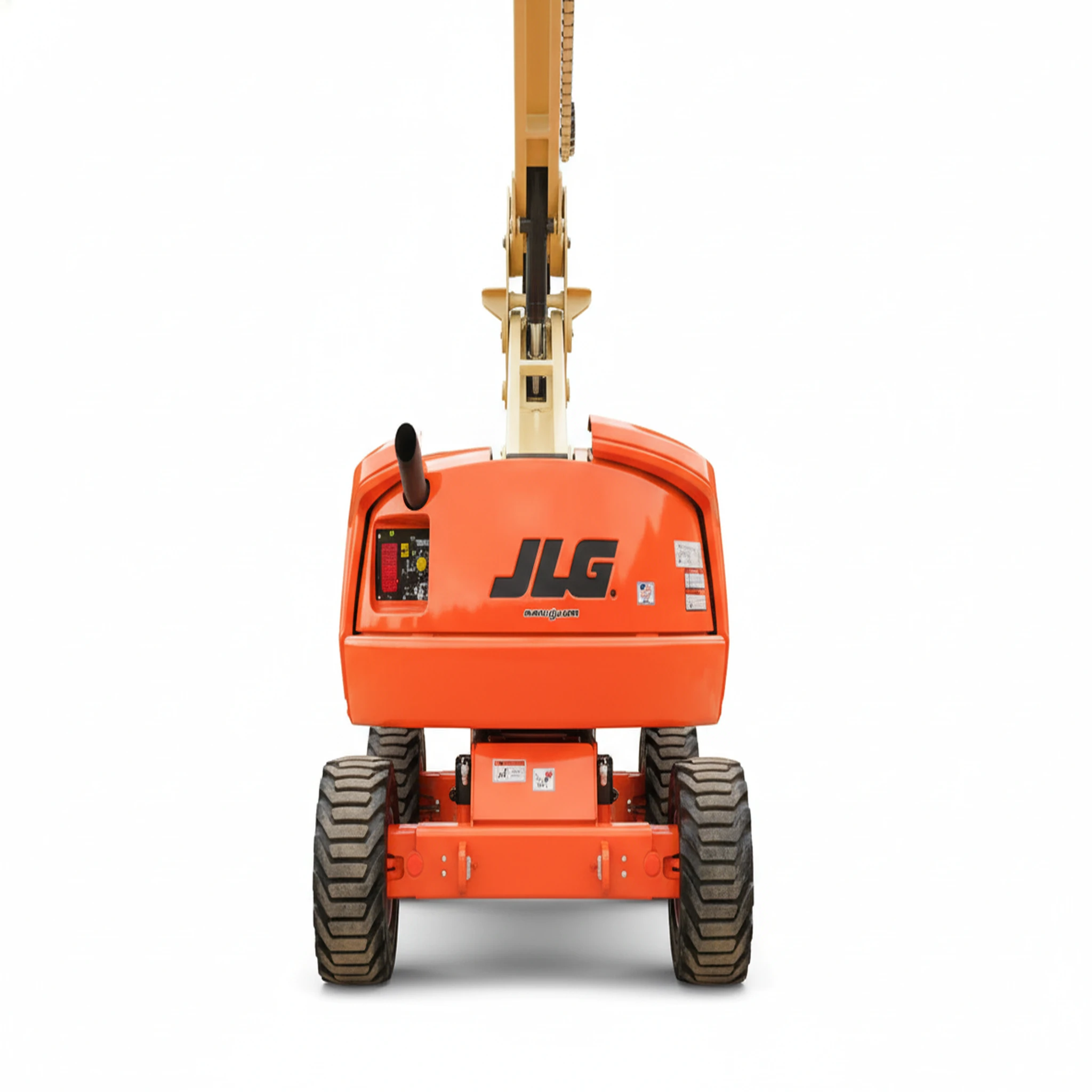

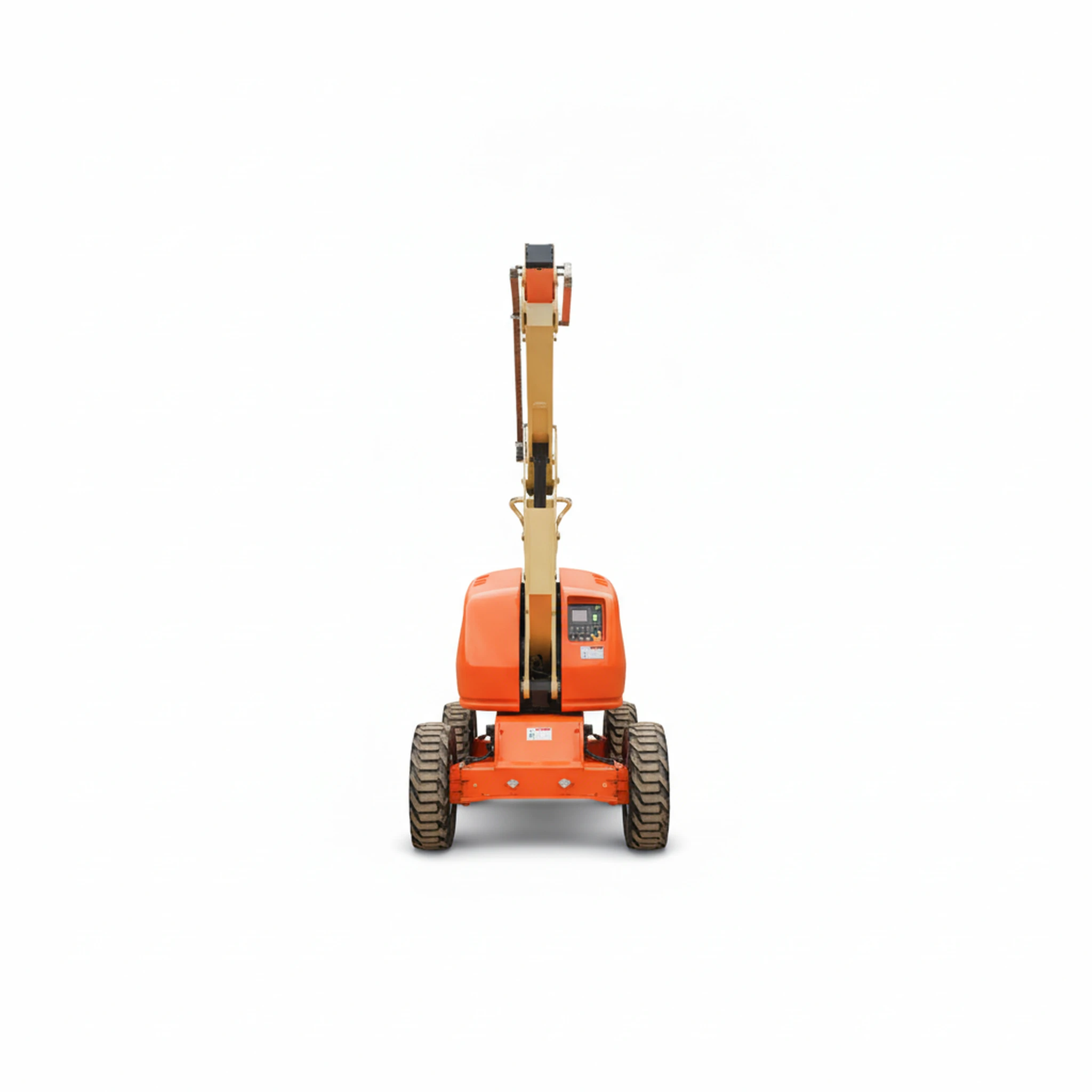

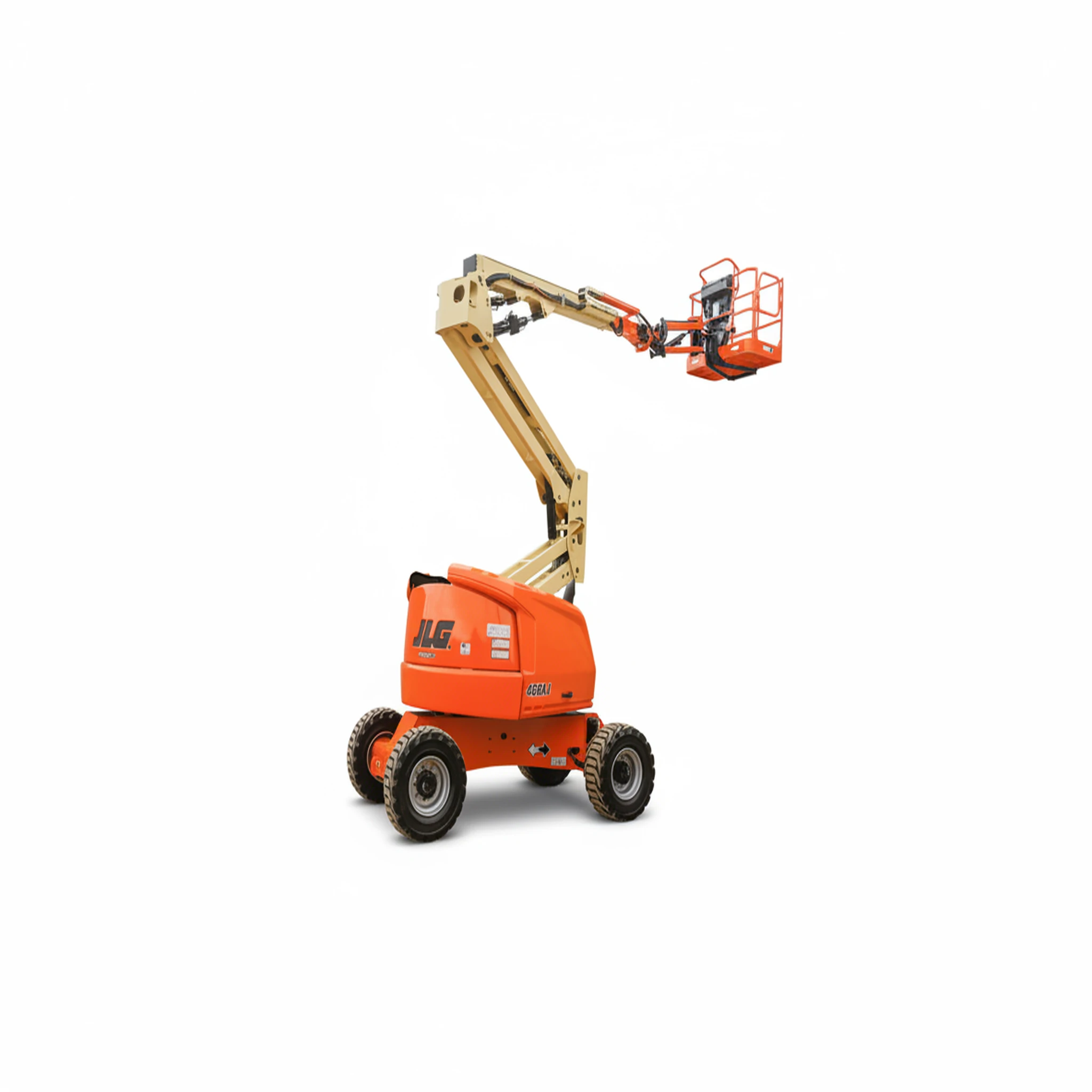

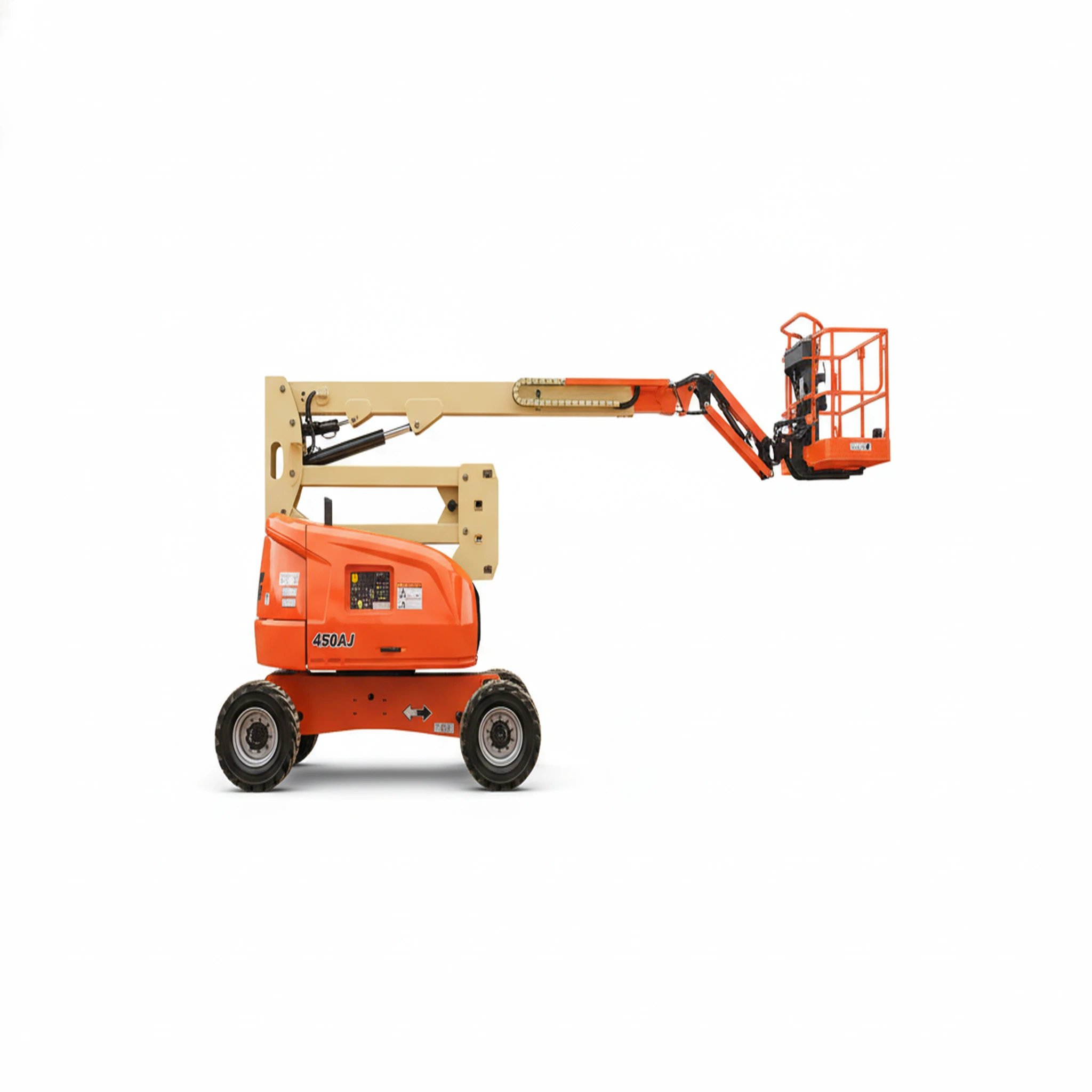

JLG
450AJ
49 hp
Engine power
14,149 lb (6,418 kg)
Operating weight
549 lb (249 kg)
Platform capacity
45 ft (13.7 m)
Working height
6.8 km/hr
drive speed
60.6 L
fuel tank capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight | Platform capacity |
|---|---|---|---|---|
| Genie Z-45DC | 95% | - | 14,063 lb (6,379 kg) | - |
| Haulotte SIGMA16 | 94% | - | 15,212 lb (6,900 kg) | 507 lb (230 kg) |
| Snorkel A46JE | 94% | - | 14,689 lb (6,663 kg) | 500 lb (227 kg) |
| Skyjack SJ-46A | 94% | 48 hp | 13,300 lb (6,033 kg) | - |
| Skyjack SJ-46AJ | 94% | 48 hp | 13,300 lb (6,033 kg) | - |
| Genie 4390RT | 94% | 49 hp | 12,895 lb (5,849 kg) | - |
Documents
Full specifications
| Axle Oscillation | 4 in (10.2 cm) | ↗ |
| Gradeability | 45% | ↗ |
| Horizontal Outreach | 25 ft (7.6 m) | ↗ |
| Max Platform Height | 45 ft (13.7 m) | ↗ |
| Platform Capacity Unrestricted | 550 lb (249 kg) | ↗ |
| Swing | 355 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
