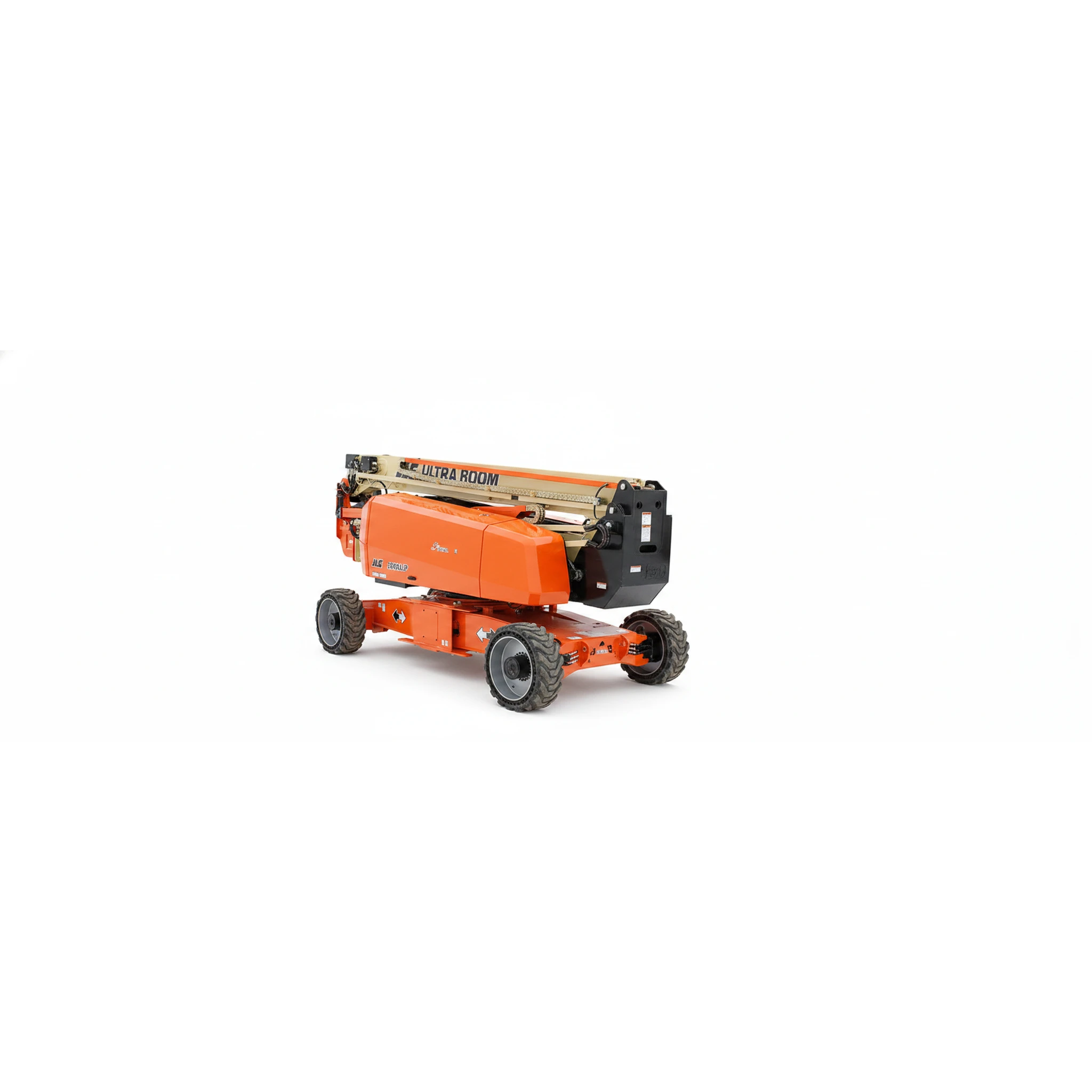

JLG
800AJ
25 hp
Engine power
51.8 ft (15.8 m)
Max reach
35,400 lb (16,057 kg)
Operating weight
500 lb (227 kg)
Platform capacity
80 ft (24.4 m)
Working height
4.8 km/h
drive speed
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max reach | Operating weight |
|---|---|---|---|---|
| Teupen LEO24GT | 95% | - | - | - |
| XCMG XGA60J-ANSI | 92% | - | - | - |
| Dingli BA28HRT | 88% | - | 63.6 ft (19.4 m) | 40,565 lb (18,400 kg) |
| Haulotte HA26 RTJ PRO | 87% | 49 hp | 57.4 ft (17.5 m) | 34,172 lb (15,500 kg) |
| Genie Z-80/60 Articulated Boom Lift | 87% | 78 hp | 60 ft (18.3 m) | 35,900 lb (16,284 kg) |
| Genie 2022-V2 | 87% | 58 hp | 60 ft (18.3 m) | 35,924 lb (16,295 kg) |
Documents
Full specifications
| Axle Oscillation | 8 in (20.3 cm) | ↗ |
| Gradeability | 45% | ↗ |
| Horizontal Outreach | 51 ft 10 in | ↗ |
| Max Platform Height | 80 ft 0 in | ↗ |
| Platform Capacity (ANSI) | 500 lb (227 kg) | ↗ |
| Platform Capacity Unrestricted | 500 lb (227 kg) | ↗ |
| Swing | 360 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
