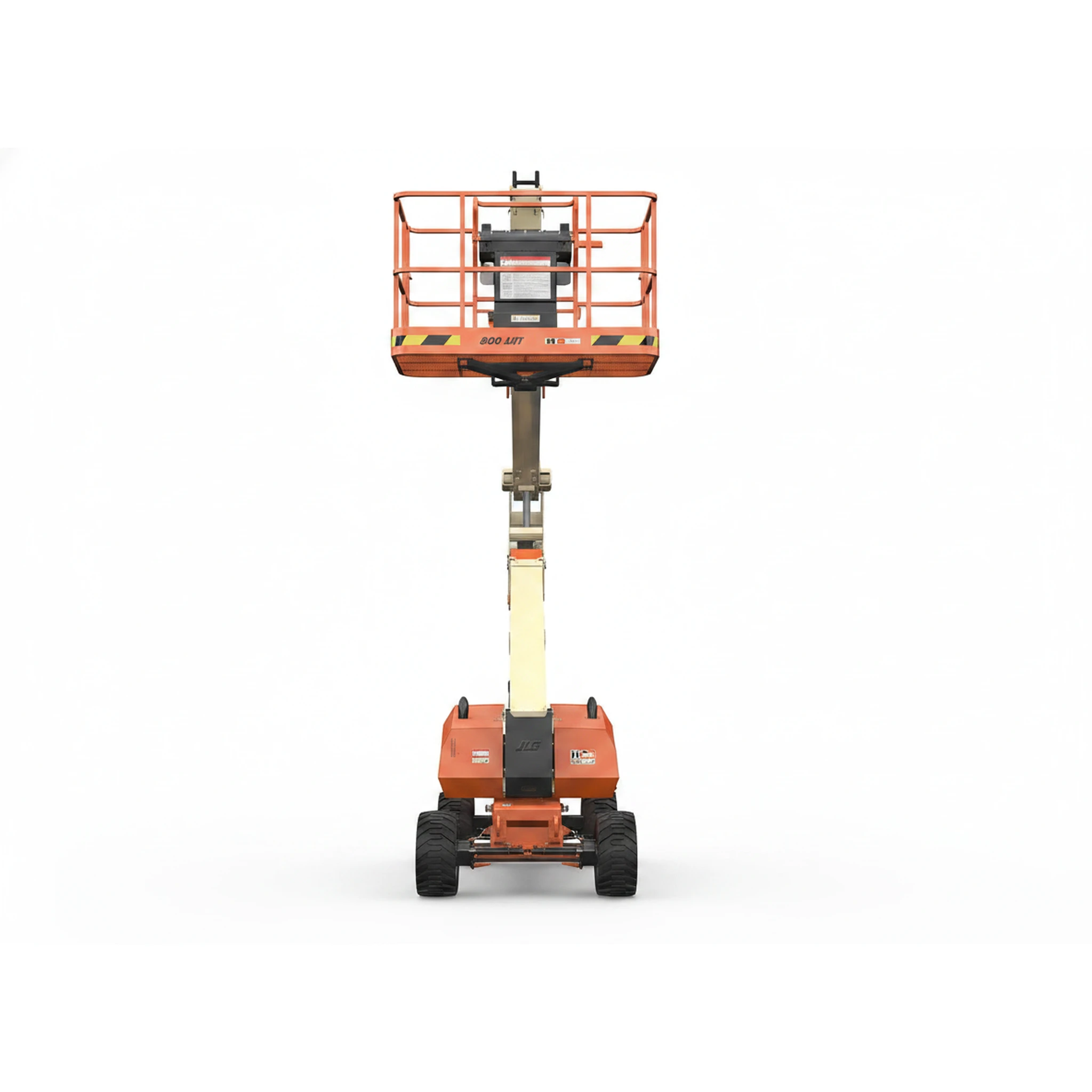

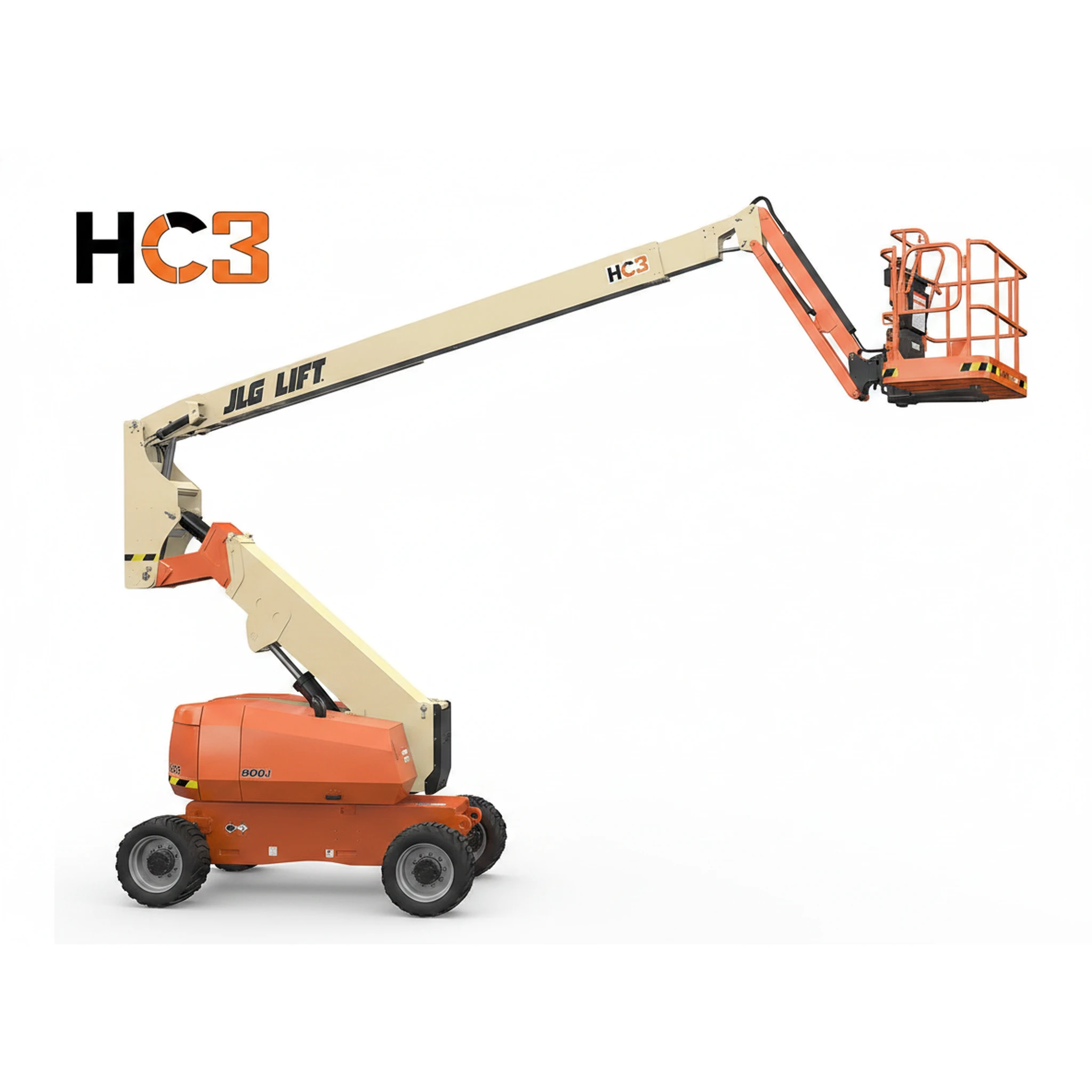

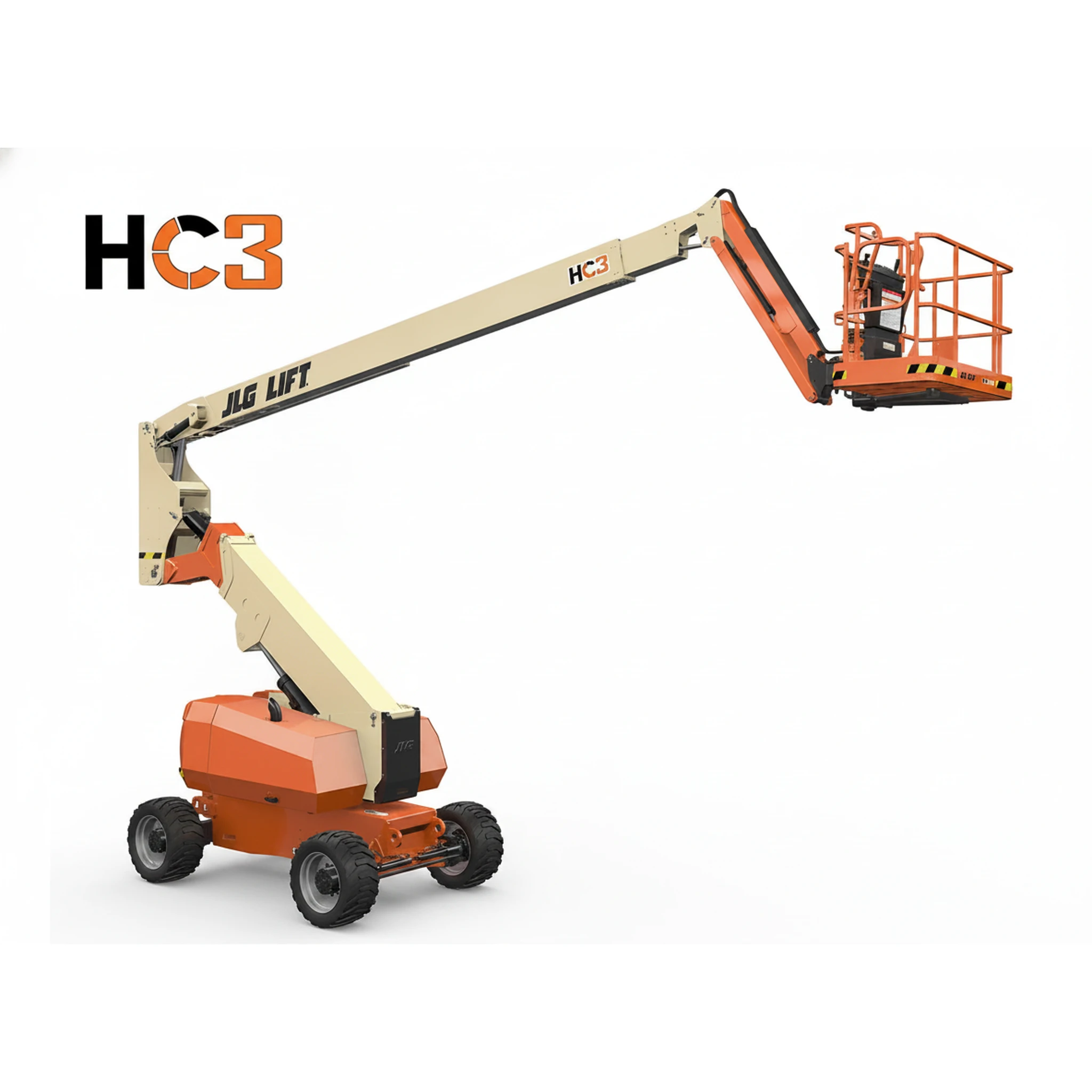

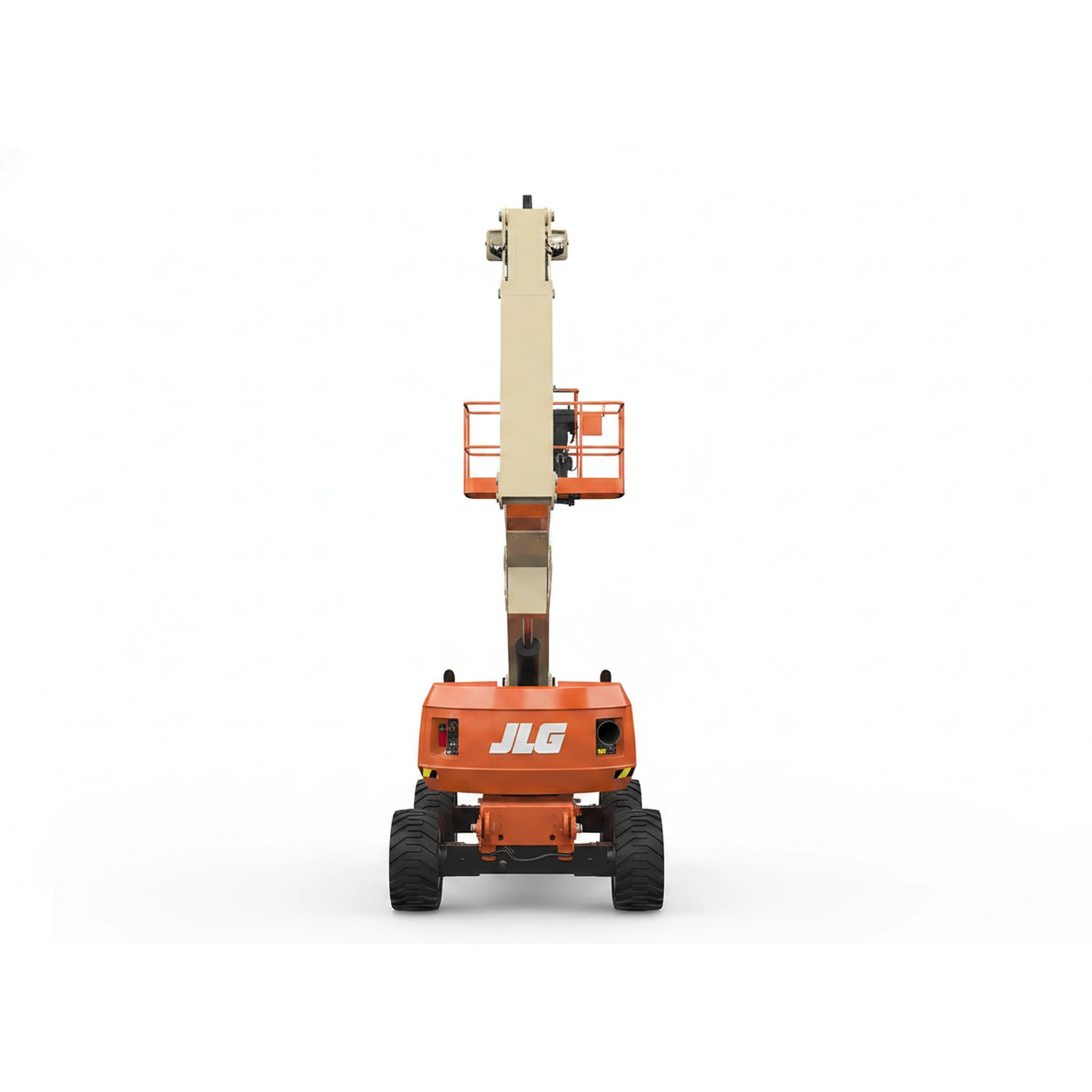

JLG
800AJ HC3
62 hp
Engine power
34,738 lb (15,757 kg)
Operating weight
80 ft (24.4 m)
Working height
4.8 km/hr
drive speed
147.6 L
fuel tank capacity
5.3 kg/cm2
ground clearance pressure
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight | Working height |
|---|---|---|---|---|
| Genie 2022-V2 | 94% | 58 hp | 35,924 lb (16,295 kg) | 84.5 ft (25.8 m) |
| Haulotte HA26 RTJ PRO | 93% | 49 hp | 34,172 lb (15,500 kg) | - |
| Genie Z-80/60 Articulated Boom Lift | 92% | 78 hp | 35,900 lb (16,284 kg) | 84 ft (25.6 m) |
| Genie ALC-1000 | 92% | 74 hp | 35,900 lb (16,284 kg) | 84.5 ft (25.8 m) |
| Genie S-80 | 92% | 74 hp | 37,000 lb (16,783 kg) | 86.5 ft (26.4 m) |
| Genie Z-80 | 92% | 74 hp | 35,924 lb (16,295 kg) | 84.5 ft (25.8 m) |
Documents
Full specifications
| Axle Oscillation | 8 in (20.3 cm) | ↗ |
| Gradeability | 45% | ↗ |
| Horizontal Outreach | 52-ft 3-in | ↗ |
| Max Platform Capacity | 1,000 lb (454 kg) | ↗ |
| Max Platform Height | 80-ft 4-in | ↗ |
| Swing | 360 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
