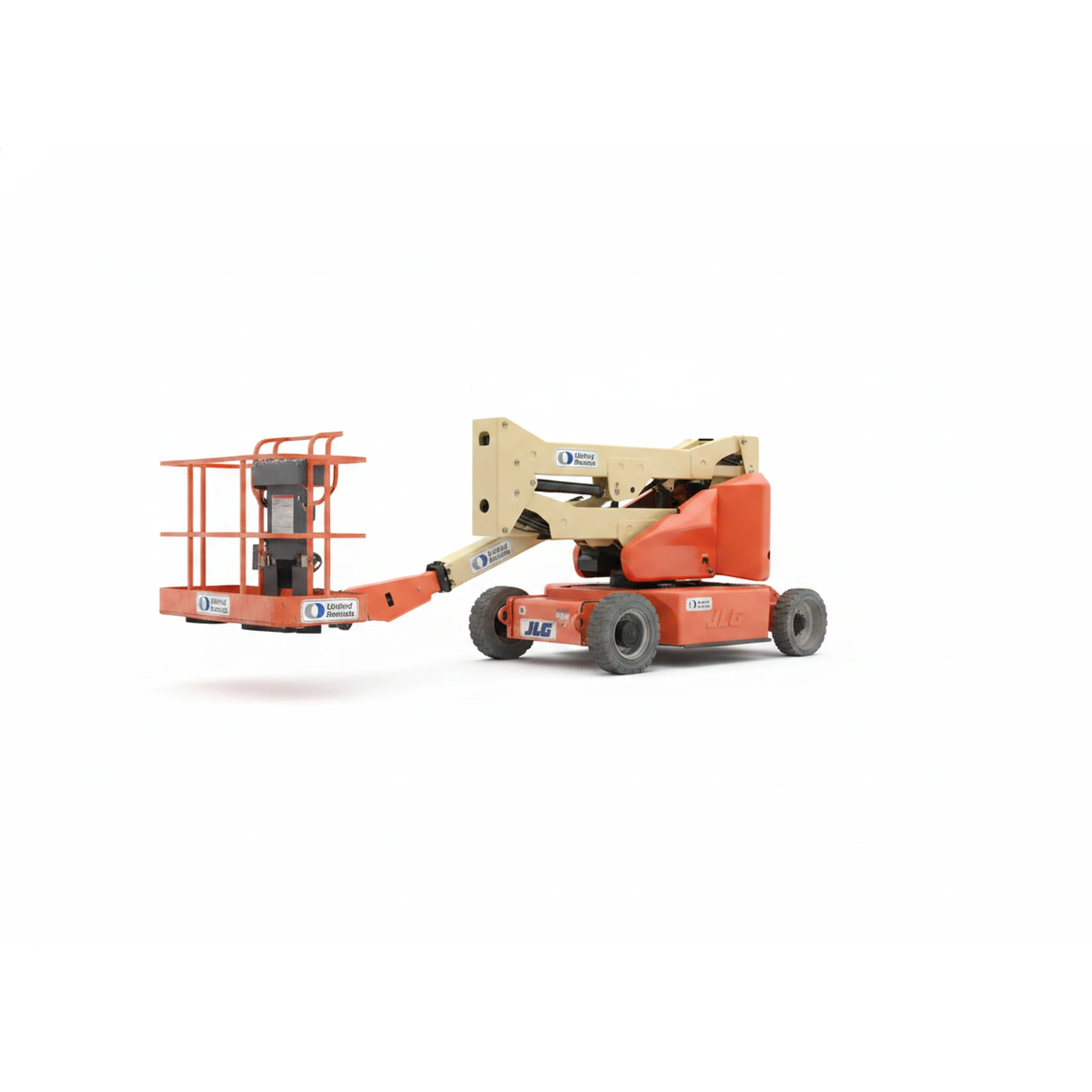

JLG
E400AN
13,100 lb (5,942 kg)
Operating weight
500 lb (227 kg)
Platform capacity
40 ft (12.2 m)
Working height
7.2 km/h
drive speed
15.2 L
fuel tank capacity
30%
gradeability
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Operating weight | Platform capacity | Working height |
|---|---|---|---|---|
| Niftylift TM40S | 100% | - | 500 lb (227 kg) | 40 ft (12.2 m) |
| Snorkel A46JE | 96% | 14,689 lb (6,663 kg) | 500 lb (227 kg) | - |
| XCMG XGA32ACJ-ANSI | 96% | - | 507 lb (230 kg) | 37 ft (11.3 m) |
| Genie Z-45/25 RT & Z-45/25J RT | 96% | - | 500 lb (227 kg) | - |
| Dingli BA16NE | 94% | 14,771 lb (6,700 kg) | - | - |
| Haulotte HA16 RTJ | 94% | 13,437 lb (6,095 kg) | 507 lb (230 kg) | - |
Documents
Full specifications
| Axle Oscillation | 0 in (0 mm) | ↗ |
| Gradeability | 30% | ↗ |
| Horizontal Outreach | 21 ft 2 in | ↗ |
| Max Platform Capacity | 500 lb (227 kg) | ↗ |
| Max Platform Height | 40 ft 0 in | ↗ |
| Swing | 360 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
