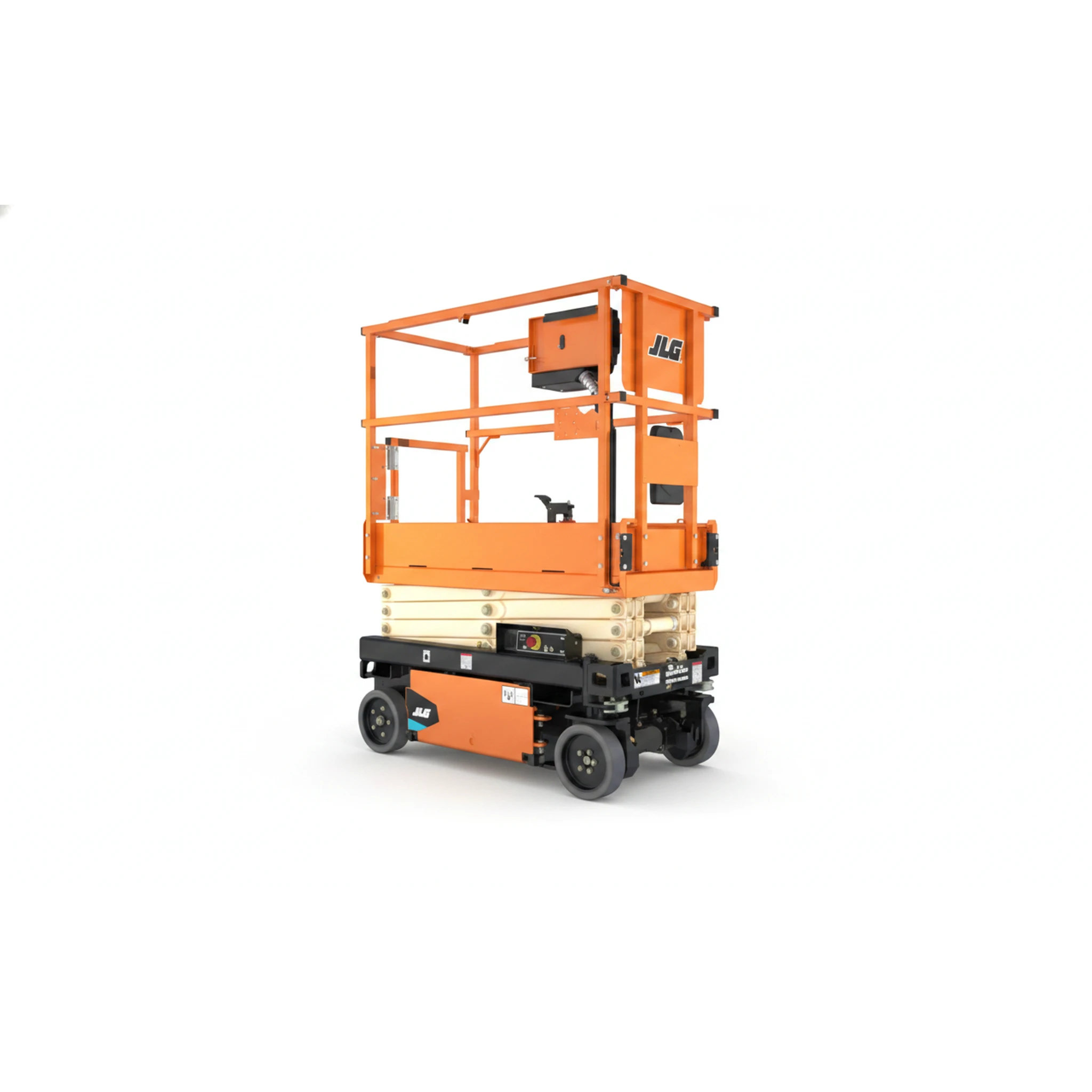

JLG
ES1330M
500 lb (227 kg)
Platform capacity
13 ft (4.0 m)
Working height
13 ft (4.0 m)
platform height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height | platform height |
|---|---|---|---|---|
| MEC Micro 13-XD | 100% | 500 lb (227 kg) | 13 ft (4.0 m) | 13 ft (4.0 m) |
| MEC 1330AE Micro | 98% | 529 lb (240 kg) | 13 ft (4.0 m) | 13 ft (4.0 m) |
| Dingli JCPT1612PA | 93% | 551 lb (250 kg) | 13.7 ft (4.2 m) | - |
| Custom Equipment HB-830 | 92% | 549 lb (249 kg) | 14 ft (4.3 m) | - |
| Dingli JCPT1208AC | 92% | 551 lb (250 kg) | 12 ft (3.7 m) | - |
| Custom Equipment PA-1030 | 88% | 529 lb (240 kg) | 16 ft (4.9 m) | - |
Documents
Full specifications
| Battery Voltage | 24 | ↗ |
| Drive Speed (Lowered) | 2.4 mph | ↗ |
| Drive Speed (Raised) | 0.5 mph | ↗ |
| Gradeability | 25 | ↗ |
| Machine Height | 5 ft 11 in | ↗ |
| Machine Weight | 1,984 lb (900 kg) | ↗ |
| Max Ground Bearing Pressure | 119 psi | ↗ |
| Max Platform Capacity | 500 lb (227 kg) | ↗ |
| Max Platform Height | 13 ft 0 in | ↗ |
| Max Tilt Rating | 1.75 Degree | ↗ |
| Number of Occupants | 2 | ↗ |
| Platform Capacity | 500 lb (227 kg) | ↗ |
| Platform Extension Capacity | 250 lb (113 kg) | ↗ |
| Platform Height | 13- ft | ↗ |
| Turning Radius | 0 in (0 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
