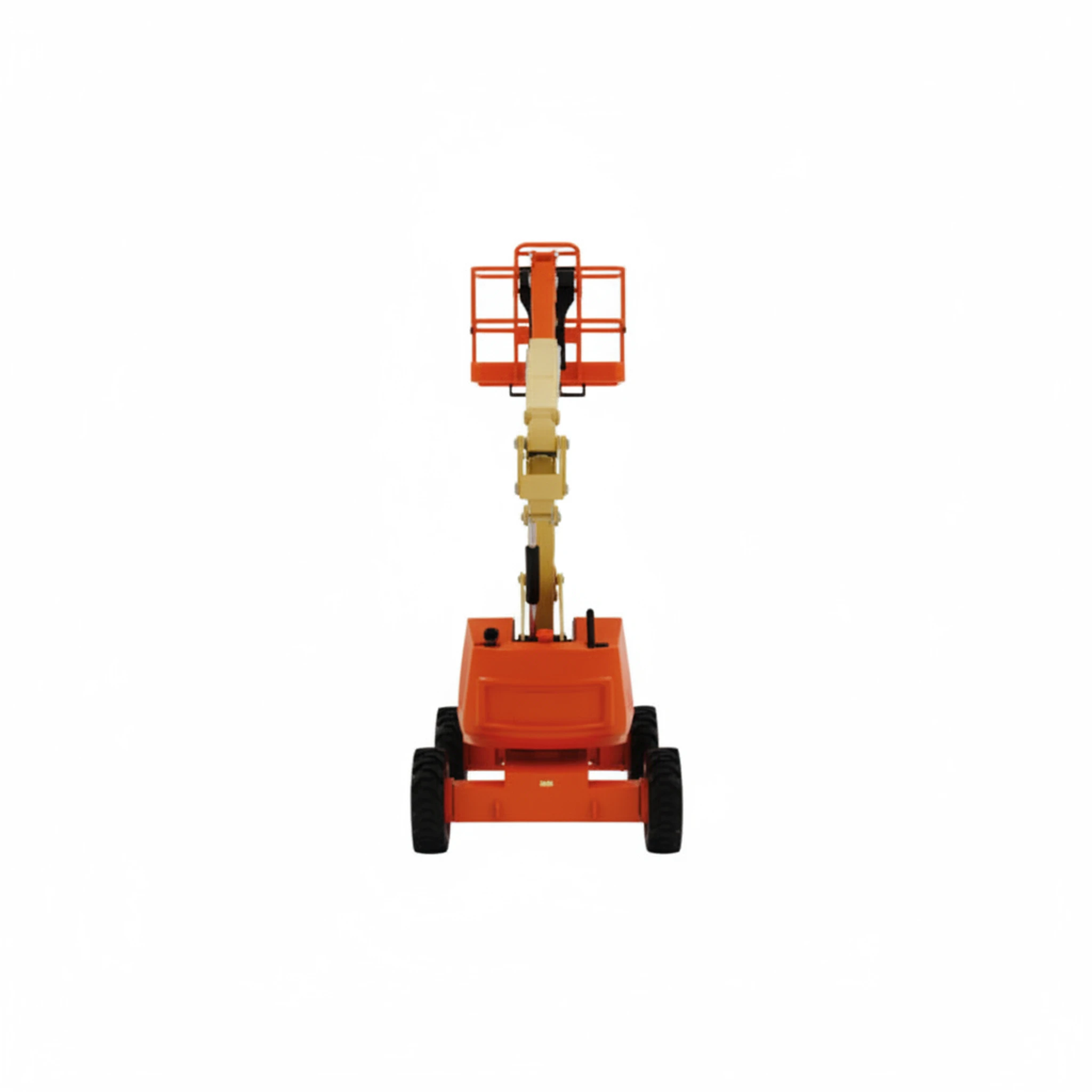

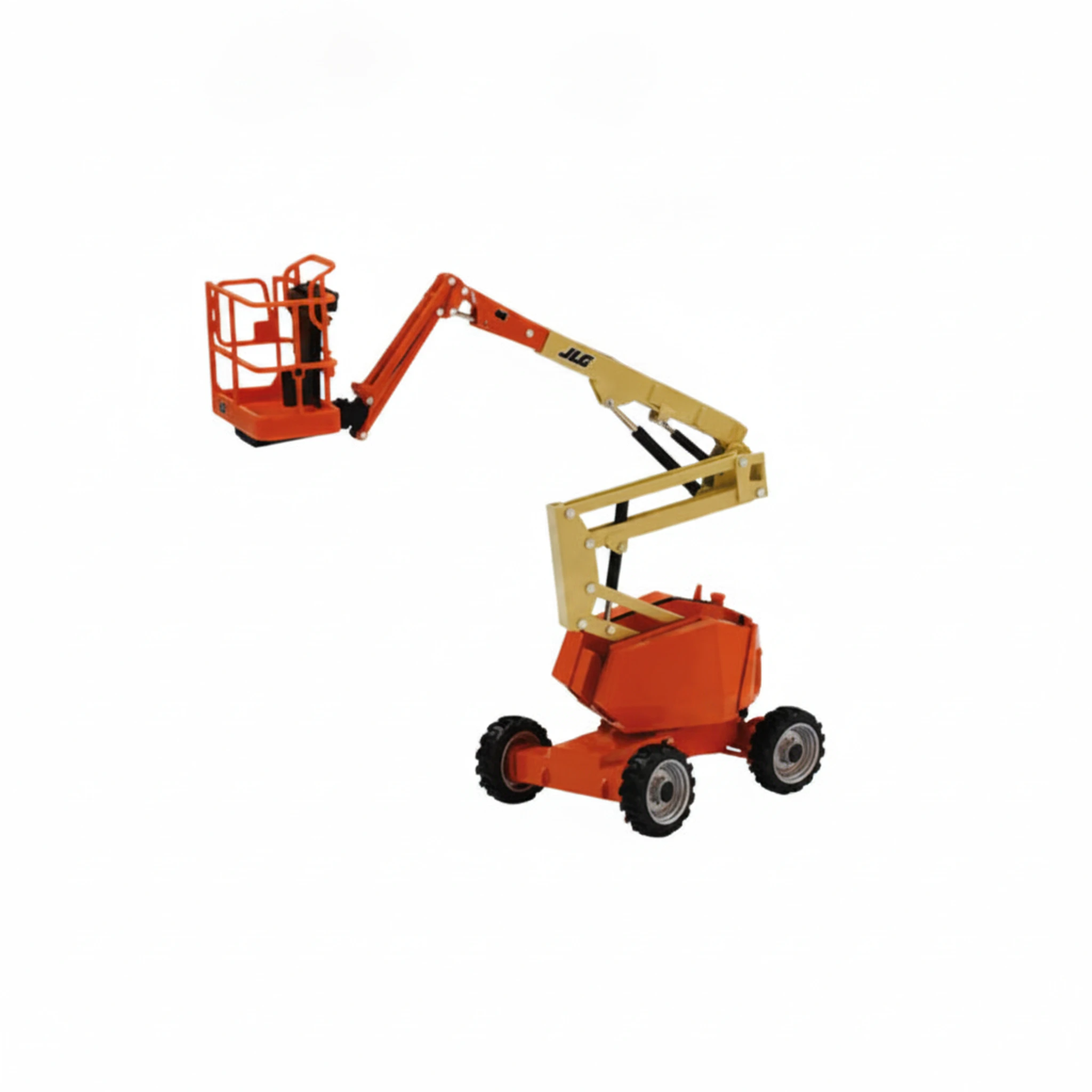

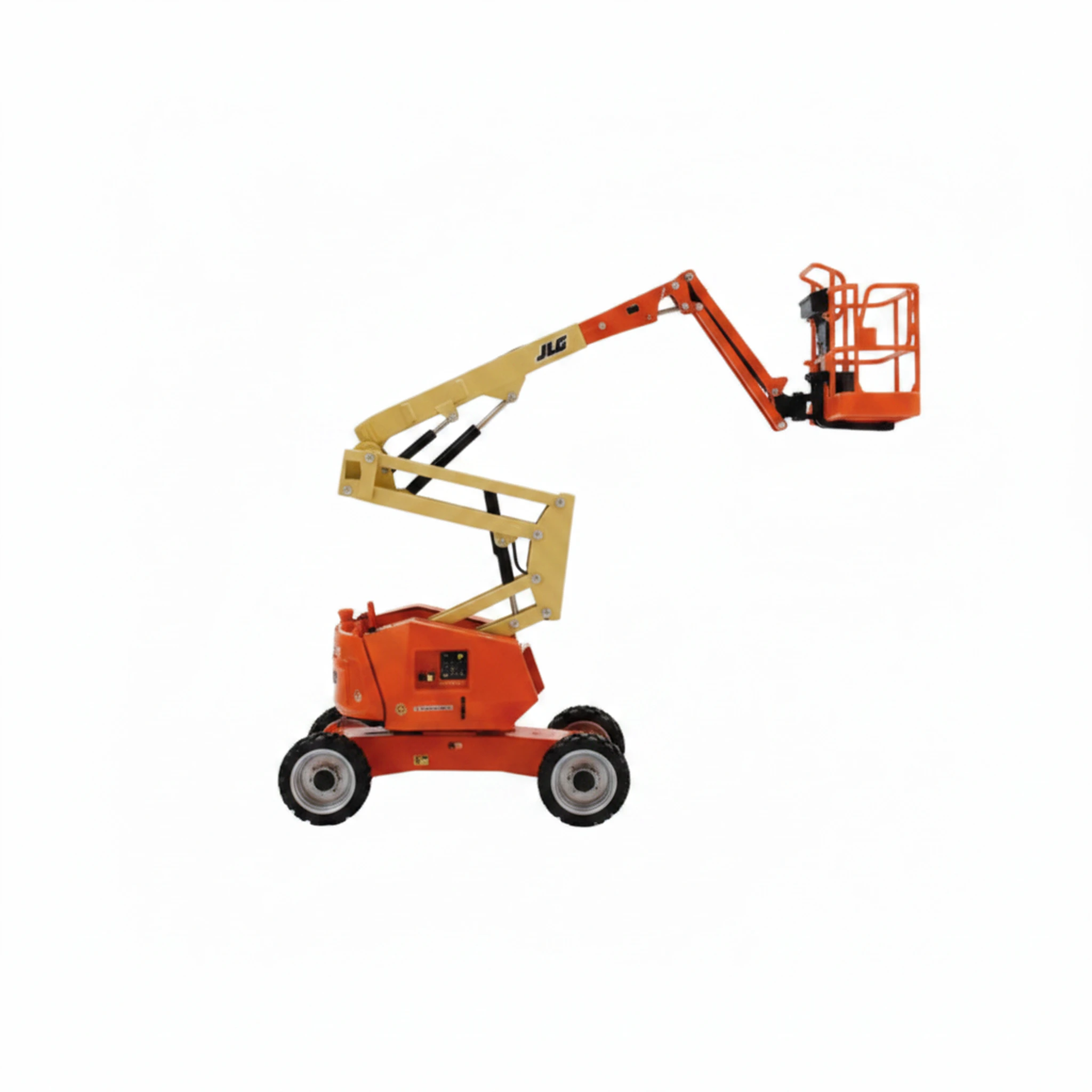

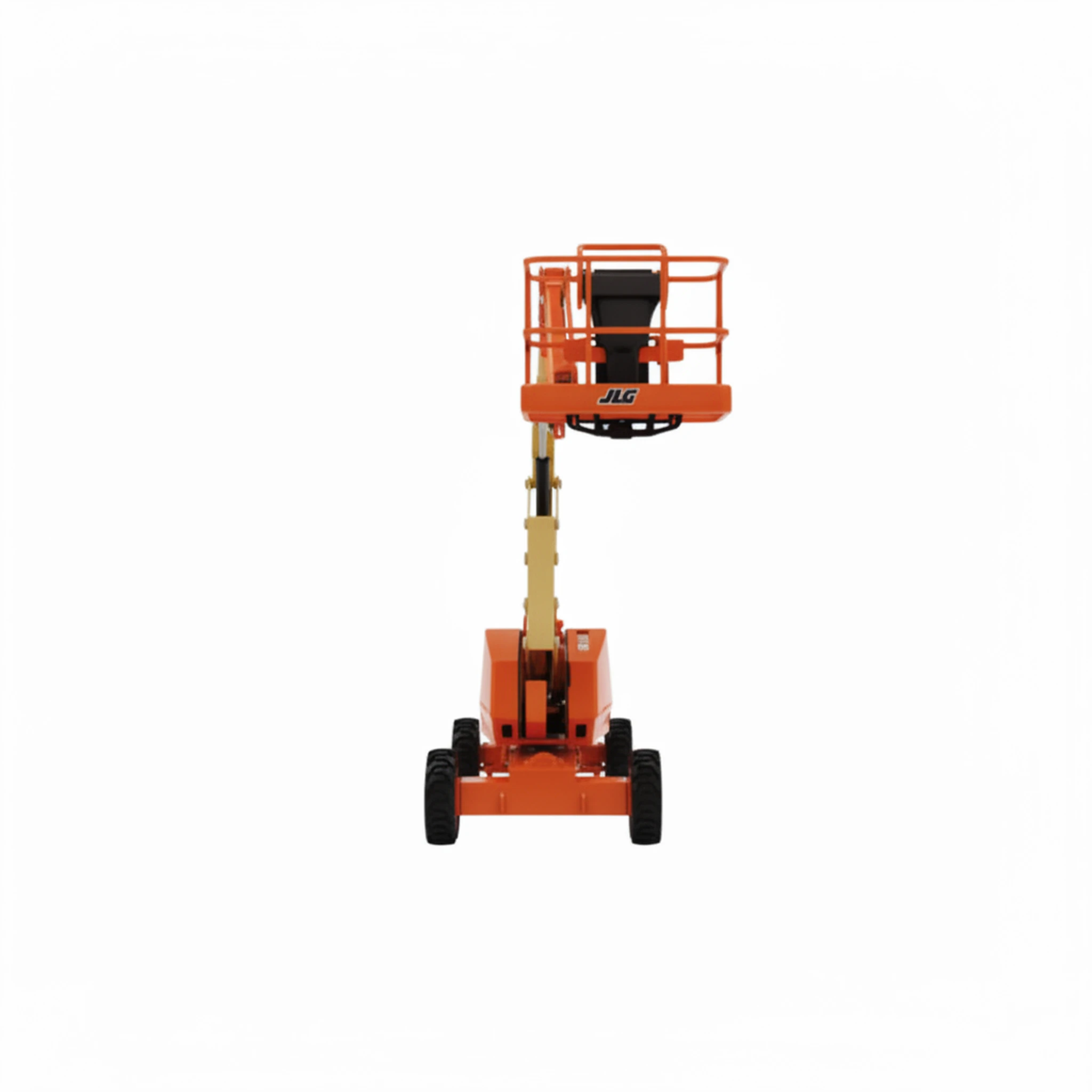

JLG
H340AJ
25 hp
Engine power
19.9 ft (6.1 m)
Max reach
9,700 lb (4,400 kg)
Operating weight
500 lb (227 kg)
Platform capacity
33 ft (10.1 m)
Working height
5.0 km/hr
drive speed
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max reach | Operating weight |
|---|---|---|---|---|
| Genie Z-34 | 95% | - | 20 ft (6.1 m) | - |
| XCMG XGA32ACJ-ANSI | 94% | - | - | - |
| Niftylift SP34N | 92% | - | - | 7,670 lb (3,479 kg) |
| Snorkel A38E | 92% | - | - | 8,554 lb (3,880 kg) |
| Niftylift IS-103 | 92% | - | 20 ft (6.1 m) | 7,650 lb (3,470 kg) |
| Niftylift IS-104 | 92% | - | 20 ft (6.1 m) | 7,573 lb (3,435 kg) |
Documents
Full specifications
| Axle Oscillation | 4 in (10.2 cm) | ↗ |
| Gradeability | 45% | ↗ |
| Horizontal Outreach | 19–ft 11–in | ↗ |
| Max Platform Capacity | 500 lb (227 kg) | ↗ |
| Max Platform Height | 33–ft 10–in | ↗ |
| Swing | 355 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
