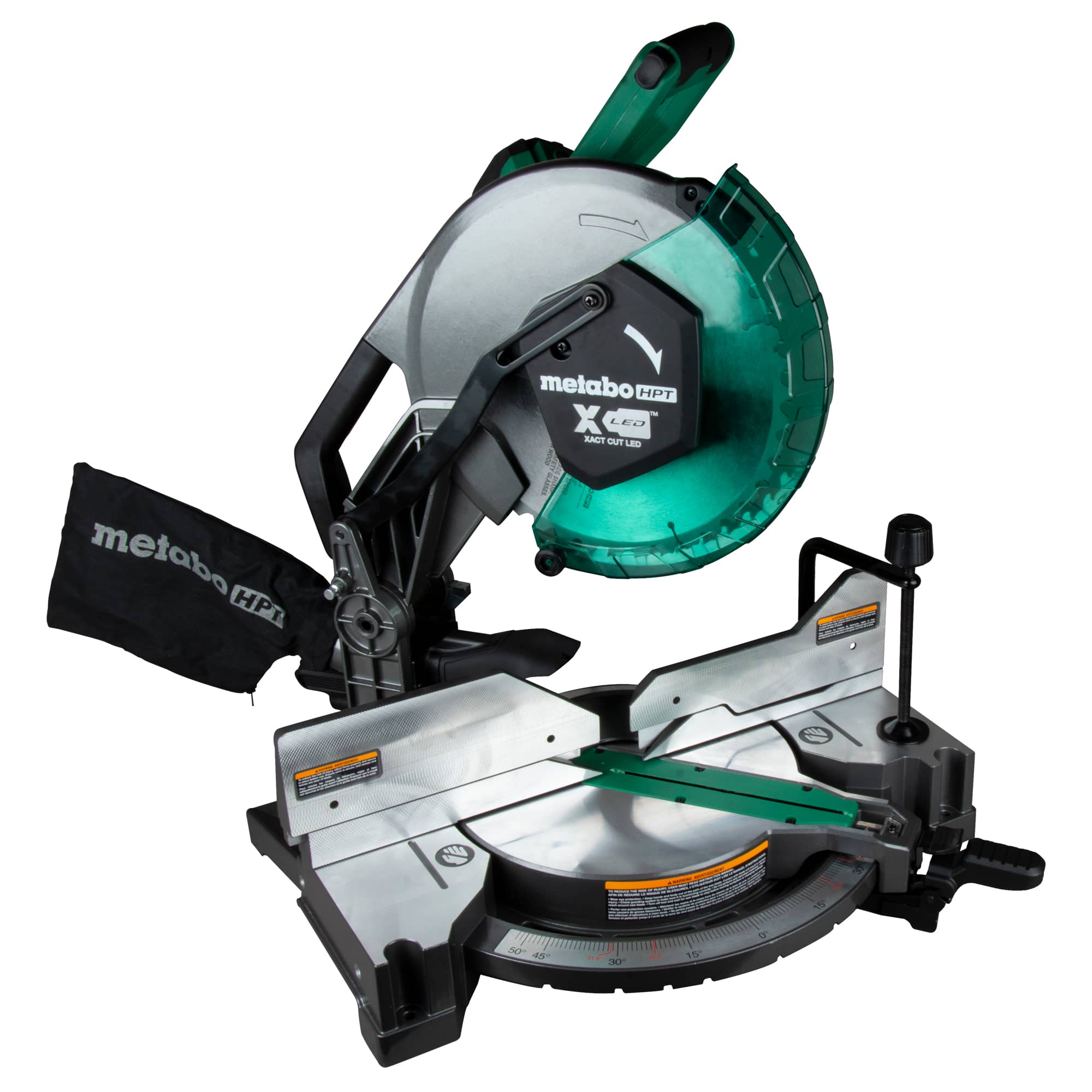

Metabo HPT
C12FDHB
12 in (30.5 cm)
blade diameter
Documents
Full specifications
| Amps | 15 | ↗ |
| Arbor | 1” | ↗ |
| Bevel Angle | 0-48˚ L & R | ↗ |
| Blade Diameter | 12” | ↗ |
| Cut Capacity at 90° | in 2-3/4 x 8 or 7-13/16 x 1-1/16 | ↗ |
| Cut at 45° Bevel (Left) | in 1-31/32 x 8 | ↗ |
| Cut at 45° Bevel (Right) | in 11/16 x 8 | ↗ |
| Cut at 45° Miter (Left) | in 2-3/4 x 5-11/16 or 4-13/16 x 1-3/16 | ↗ |
| Cut at 45° Miter (Right) | in 2-3/4 x 5-11/16 or 4-1/32 x 19/32 | ↗ |
| Cut at 45° Miter/Bevel (Left) | in 1-3/16 x 5-11/16 | ↗ |
| Cut at 45° Miter/Bevel (Right) | in 5-11/16 x 11/16 | ↗ |
| Miter Angle | 0-52˚ L & R | ↗ |
| No-Load Speed | 4,300 RPM | ↗ |
| Weight | 44.1 lbs (20.0 kg) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
