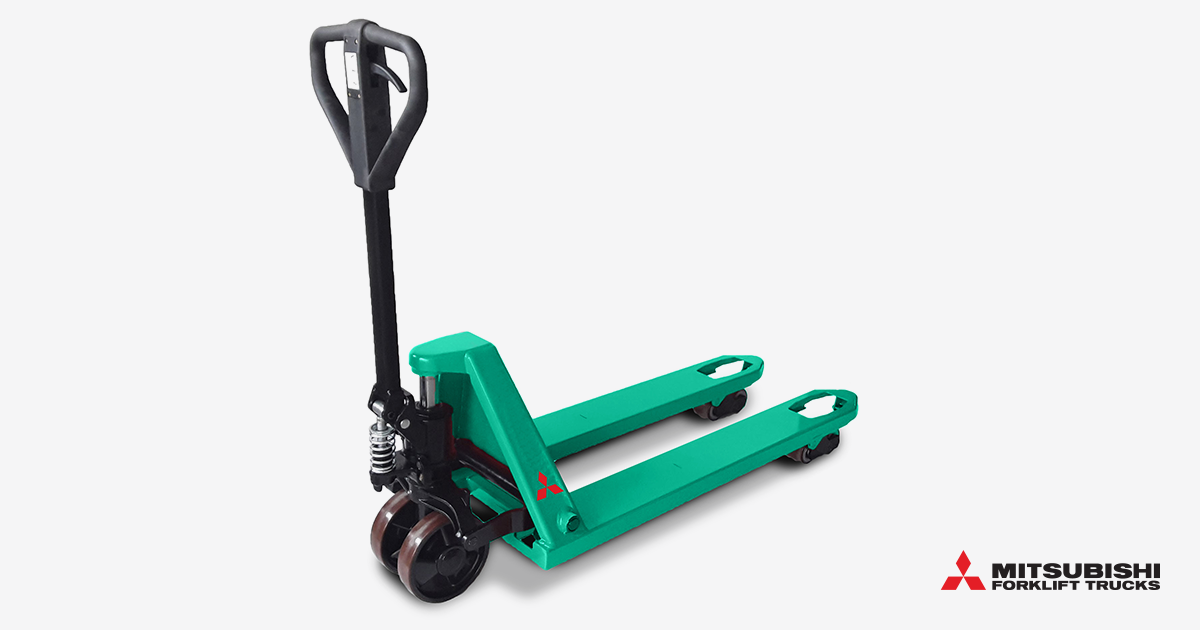

Mitsubishi
MV25HRTP
5,512 lb (2,500 kg)
Load capacity
Full specifications
| Fork dimensions (thickness, width, length) | 50, 160 & 1150 mm | ↗ |
| Fork height, fully lowered | 3.3 in (85 mm) | ↗ |
| Ground clearance at centre of wheelbase, with load (forks lowered) | 3.3 in (85 mm) | ↗ |
| Height of tiller arm/steering console (min./max.) | 550/1220 mm | ↗ |
| Length to fork face (includes fork thickness) | 45.3 in (1,150 mm) | ↗ |
| Lift height (see tables) | 4.5 in (115 mm) | ↗ |
| Load capacity | 5,512 lb (2,500 kg) | ↗ |
| Load centre distance | 23.6 in (600 mm) | ↗ |
| Load distance, axle to fork face (forks lowered) | 1.7 in (43 mm) | ↗ |
| Manufacturer's model designation | MV25HRTP | ↗ |
| Number of wheels, front/rear (x=driven) | 2/4 | ↗ |
| Operator type: pedestrian, (operator)-standing, -seated | Pedestrian | ↗ |
| Outside width over forks (minimum/maximum) | 27.0 in (685 mm) | ↗ |
| Overall length | 60.8 in (1,545 mm) | ↗ |
| Overall width | 27.0 in (685 mm) | ↗ |
| Track width (center of tyres), drive side | 4.7 in (120 mm) | ↗ |
| Track width (center of tyres), load side | 20.7 in (525 mm) | ↗ |
| Truck weight without load, with maximum battery weight | 154 lb (70 kg) | ↗ |
| Turning circle radius | 54.1 in (1,375 mm) | ↗ |
| Tyre dimensions, front | 180 | ↗ |
| Tyre dimensions, rear | 80 | ↗ |
| Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear | RTP | ↗ |
| Wheelbase | 46.7 in (1,186 mm) | ↗ |
| Working aisle width (Ast3) with 1000 × 1200 mm pallets, load crosswise, platform up/down | 92.5 in (2,350 mm) | ↗ |
| Working aisle width (Ast3) with 800 × 1200 mm pallets, load lengthwise, platform up/down | N/A mm | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
