Seacube

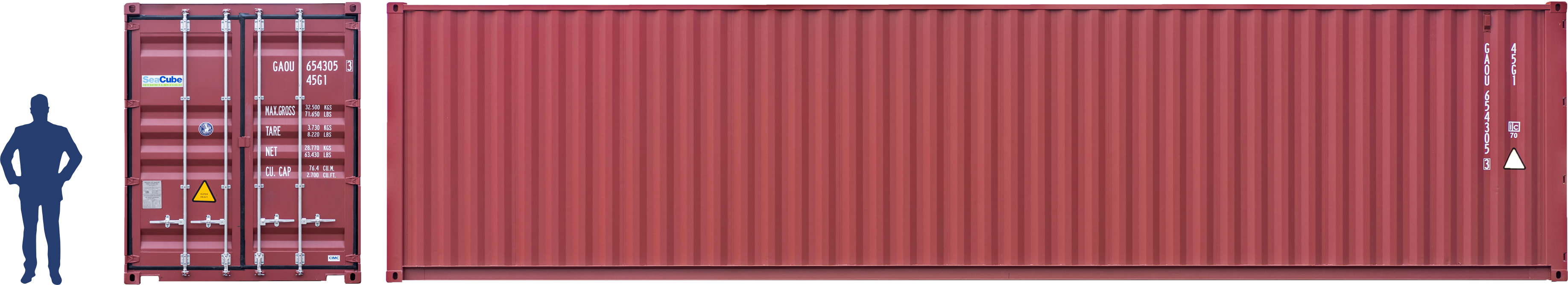

40 Foot Standard Dry
40 ft (12.2 m)
Max height
Documents
Full specifications
| Cubic Capacity | 67.7 m³ | ↗ |
| Door Opening Height | 89.8 in (2,280 mm) | ↗ |
| Door Opening Width | 92.1 in (2,340 mm) | ↗ |
| External Height | 102 in (2,591 mm) | ↗ |
| External Length | 480 in (12,192 mm) | ↗ |
| External Width | 96.0 in (2,438 mm) | ↗ |
| Gooseneck Tunnel Center Distance | 131 in (3,315 mm) | ↗ |
| Gooseneck Tunnel Length | 40.5 in (1,029 mm) | ↗ |
| Gooseneck Tunnel Width | 4.7 in (120 mm) | ↗ |
| Internal Height | 94.2 in (2,393 mm) | ↗ |
| Internal Length | 474 in (12,032 mm) | ↗ |
| Internal Width | 92.6 in (2,352 mm) | ↗ |
| Maximum Gross Weight (MGW) | 71,650 lb (32,500 kg) | ↗ |
| Payload Capacity | 63,625 lb (28,860 kg) | ↗ |
| Tare Weight | 8,025 lb (3,640 kg) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
