Sullair

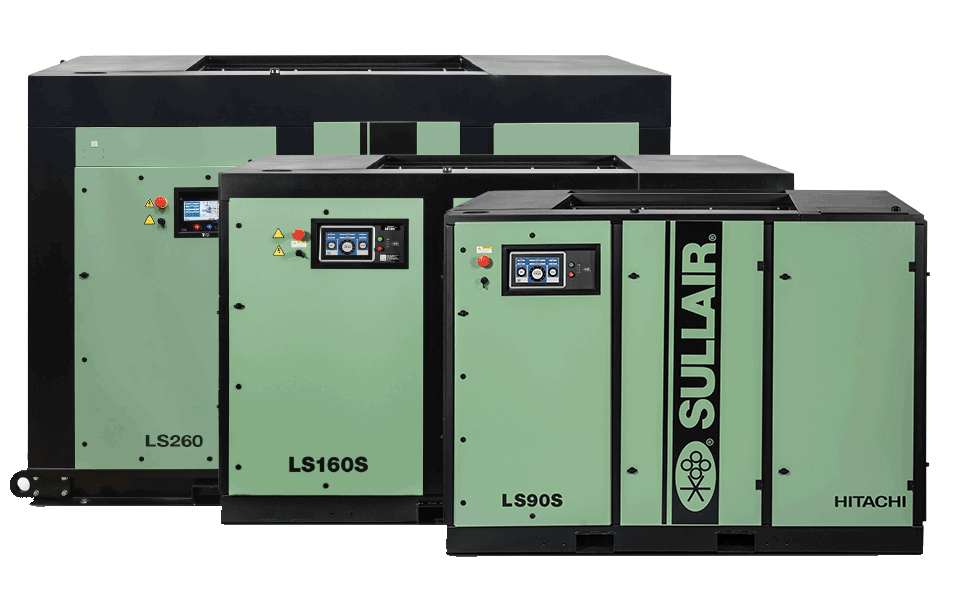

LS Series Industrial Compressors
Documents
Full specifications
| Flow | 459-1875 cfm | ↗ |
| LS110 | - 150 hp (110 kW), 568 to 763 cfm (16.1 to 21.6 m³/min), 110 to 175 psi (7.6 to 12 bar) | ↗ |
| LS110S | - 150 hp (110 kW), 568 to 763 cfm (16.1 to 21.6 m³/min), 110 to 175 psi (7.6 to 12 bar) | ↗ |
| LS110V | - 150 hp (110 kW), 559 to 743 cfm (15.8 to 21.1 m³/min), 110 to 175 psi (7.6 to 12 bar) | ↗ |
| LS160 | - 200 hp (160 kW), 734 to 1070 cfm (20.8 to 30.3 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS160S | - 200 hp (160 kW), 734 to 1070 cfm (20.8 to 30.3 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS160V | - 200 hp (160 kW), 729 to 1070 cfm (20.6 to 30.3 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS190 | - 250 hp (190 kW), 960 to 1360 cfm (27.2 to 38.5 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS190S | - 250 hp (190 kW), 960 to 1360 cfm (27.2 to 38.5 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS190V | - 250 hp (190 kW), 950 to 1300 cfm (27.2 to 36.8 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS220 | - 300 hp (220 kW), 1150 to 1620 cfm (32.6 to 45.9 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS220S | - 300 hp (220 kW), 1150 to 1620 cfm (32.6 to 45.9 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS220V | - 300 hp (220 kW), 1120 to 1620 cfm (31.7 to 45.9 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS260 | - 350 hp (260 kW), 1270 to 1875 cfm (36.0 to 53.1 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS260S | - 350 hp (260 kW), 1270 to 1875 cfm (36.0 to 53.1 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS260V | - 350 hp (260 kW), 1300 to 1875 cfm (36.8 to 53.1 m³/min), 100 to 200 psi (7.0 to 13.8 bar) | ↗ |
| LS90 | - 125 hp (90 kW), 469 to 634 cfm (13.3 to 18.0 m³/min), 110 to 175 psi (7.6 to 12 bar) | ↗ |
| LS90S | - 125 hp (90 kW), 469 to 634 cfm (13.3 to 18.0 m³/min), 110 to 175 psi (7.6 to 12 bar) | ↗ |
| LS90V | - 125 hp (90 kW), 459 to 625 cfm (13.0 to 17.7 m³/min), 110 to 175 psi (7.6 to 12 bar) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
