Sullair

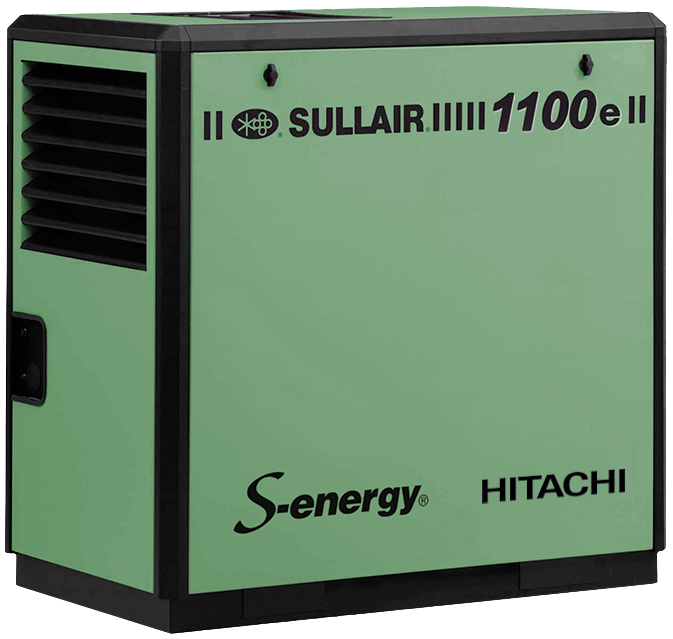

S-energy 15 – 25 hp Industrial Compressors
Documents
Full specifications
| 50 Hz — 1100e — performance | 15 hp (11 kW), 36.1 to 66.5 cfm (1.02 to 1.88 m³/min), 100 to 175 psi (7 to 12.1 bar) | ↗ |
| 50 Hz — 1100eV — performance | 15 hp (11 kW) Variable Speed Drive (VSD), 44.5 to 66 cfm (1.26 to 1.87 m³/min), 100 to 175 psi (7 to 12.1 bar) | ↗ |
| 50 Hz — 1500e — performance | 20 hp (15 kW), 60.6 to 83.8 cfm (1.72 to 2.37 m³/min), 125 to 175 psi (8.6 to 12.1 bar) | ↗ |
| 50 Hz — 1500eV — performance | 20 hp (15 kW) Variable Speed Drive (VSD), 58.9 to 86.6 cfm (1.67 to 2.49 m³/min), 100 to 175 psi (7 to 12.1 bar) | ↗ |
| 50 Hz — 1800e — performance | 25 hp (18 kW), 76.4 to 98.3 cfm (2.16 to 2.78 m³/min), 125 to 175 psi (8.6 to 12.1 bar) | ↗ |
| 60 Hz — 1100e — performance | 15 hp (11 kW), 43.7 to 68.5 cfm (1.23 to 1.93 m³/min), 100 to 175 psi (7 to 12.1 bar) | ↗ |
| 60 Hz — 1100eV — performance | 15 hp (11 kW) Variable Speed Drive (VSD), 46.4 to 69.2 cfm (1.31 to 1.95 m³/min), 100 to 175 psi (7 to 12.1 bar) | ↗ |
| 60 Hz — 1500e — performance | 20 hp (15 kW), 61.5 to 79.2 cfm (1.74 to 2.24 m³/min), 125 to 175 psi (8.6 to 12.1 bar) | ↗ |
| 60 Hz — 1500eV — performance | 20 hp (15 kW) Variable Speed Drive (VSD), 64.8 to 90.9 cfm (1.83 to 2.57 m³/min), 100 to 175 psi (7 to 12.1 bar) | ↗ |
| 60 Hz — 1800e — performance | 25 hp (18 kW), 78.5 to 99.3 cfm (2.22 to 2.81 m³/min), 125 to 175 psi (8.6 to 12.1 bar) | ↗ |
| 60 Hz — 1800eV — performance | 25 hp (18 kW) Variable Speed Drive (VSD), 81.3 to 107.8 cfm (2.30 to 3.05 m³/min), 100 to 175 psi (7 to 12.1 bar) | ↗ |
| Flow | 36.1 – 107.8 cfm | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
