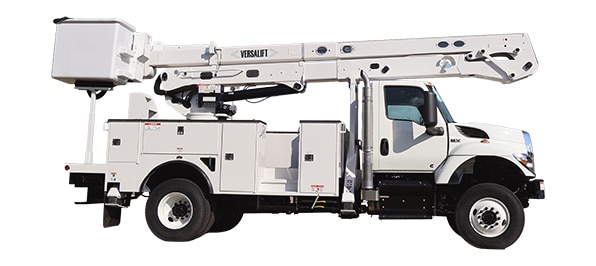

Versalift
VO-452/455/460
Documents
Full specifications
| Boom Rotation | Continuous | ↗ |
| Hydraulic Flow Rate | 8 gpm | ↗ |
| Hydraulic Operating Pressure | 3000 psi | ↗ |
| Hydraulic System Type | Open or Closed Center | ↗ |
| Jib & Winch Capacity | 2,000 lbs (907 kg) | ↗ |
| Lower Boom Articulation | 102-120 deg | ↗ |
| Lower Boom Insulation Gap | 24 in (61.0 cm) | ↗ |
| Lower Boom Lift Eye Capacity | 2,500 lbs (1,134 kg) | ↗ |
| Overcenter Reach (452) | 45.2 ft (13.8 m) | ↗ |
| Overcenter Reach (455) | 48.2 ft (14.7 m) | ↗ |
| Overcenter Reach (460) | 53.2 ft (16.2 m) | ↗ |
| Platform Capacity (452/455) | 700 lbs (318 kg) | ↗ |
| Platform Capacity (460) | 500 lbs (227 kg) | ↗ |
| Power Source | PTO Pump | ↗ |
| Stowed Travel Height | 13 ft (4.0 m) | ↗ |
| Upper Boom Articulation | 195 deg | ↗ |
| Upper Boom Insulation Gap | 188 in (479 cm) | ↗ |
| Working Height (452) | 57.4 ft (17.5 m) | ↗ |
| Working Height (455) | 60.6 ft (18.5 m) | ↗ |
| Working Height (460) | 65.6 ft (20.0 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
