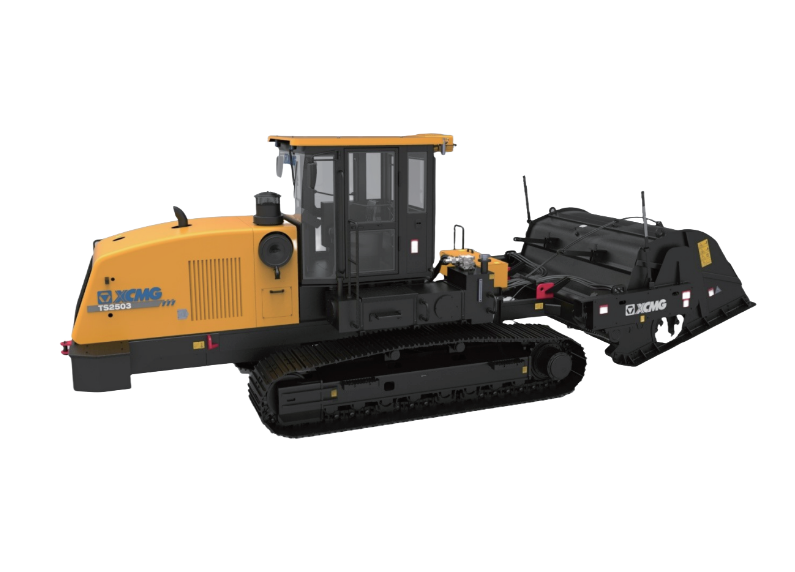

XCMG
TS2503(Cummins)
460 hp
Engine power
51,809 lb (23,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Bell G200 Motor Grader | 75% | 310 hp | 43,067 lb (19,535 kg) |
| Dynapac SD2500C | 71% | 200 hp | 51,368 lb (23,300 kg) |
| Dynapac SD2500CS | 71% | 200 hp | 51,368 lb (23,300 kg) |
| Bell G160 Motor Grader | 70% | 280 hp | 41,359 lb (18,760 kg) |
| Ammann ABG 8820 | 66% | 268 hp | 38,250 lb (17,350 kg) |
| Bell G140 Motor Grader | 65% | 240 hp | 40,589 lb (18,411 kg) |
Full specifications
| Diameter Mixing Rotor/with picks | 50.4 in (1,280 mm) | ↗ |
| Emission | EU Stage Ⅴ / | ↗ |
| Engine Model | X12 | ↗ |
| Engine Speed | 2100 rpm | ↗ |
| Machine Weight | 51,809 lb (23,500 kg) | ↗ |
| Maximum Milling Depth | 15.7 in (400 mm) | ↗ |
| Mechanical | 9100×3100×3450 L×W×H/mm | ↗ |
| Number of Picks | 198 pcs | ↗ |
| Rated Power | 343 kW | ↗ |
| Tool Spacing | 1.6 in (41 mm) | ↗ |
| Working Width | 98.4 in (2,500 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
