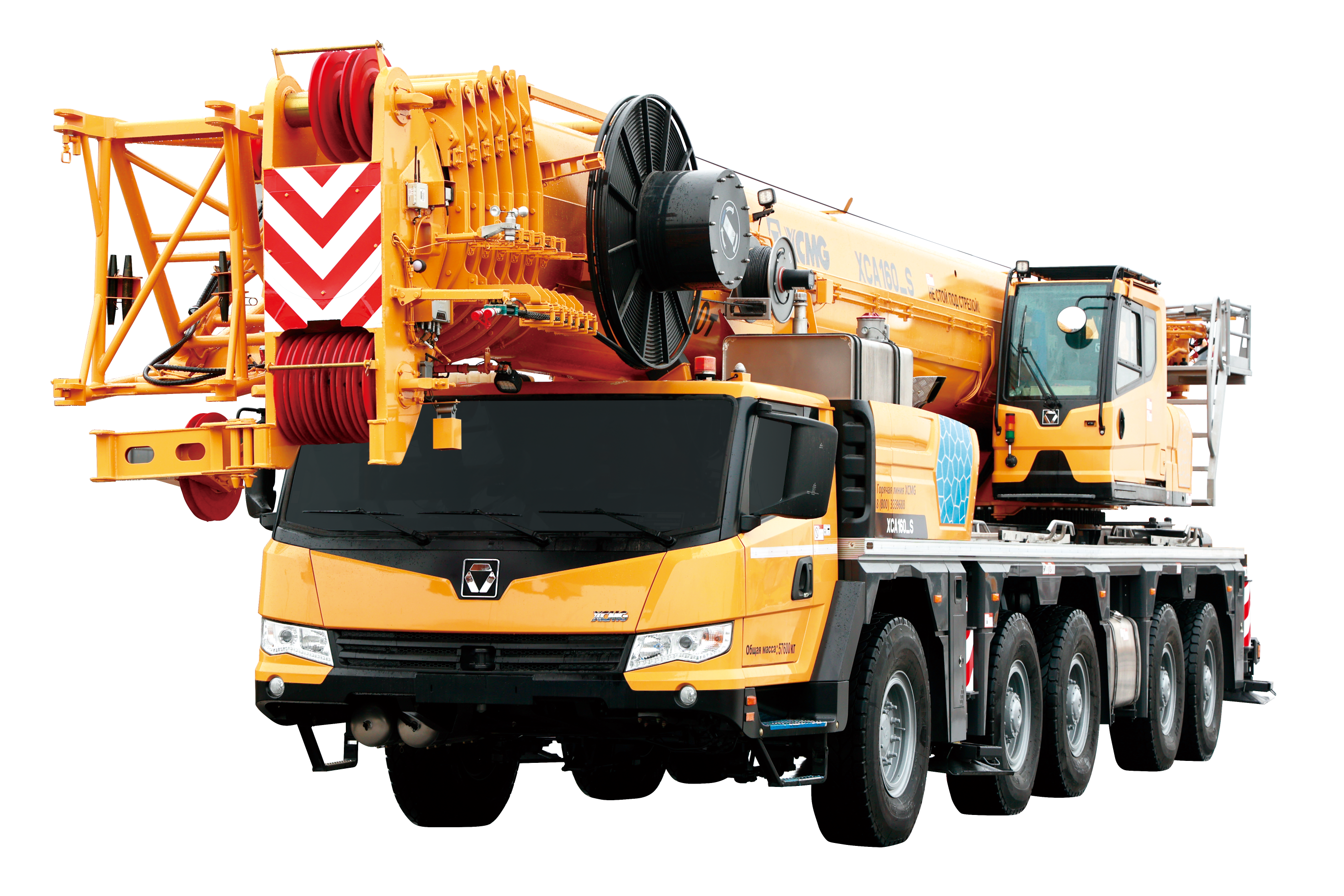

XCMG
XCA160_S
352,740 lb (160 t)
Lifting capacity
Documents
Full specifications
| Dead Weight in Travel State | 126,986 lb (57,600 kg) | ↗ |
| Dimensions | 15785×3000×3995 mm | ↗ |
| Drive engine model | WP12.460E50（Weichai） | ↗ |
| Drive engine power | 338 kw | ↗ |
| Drive/Steering | 10×8×10 | ↗ |
| Driving speed | 80 km/h | ↗ |
| Emission standard | Euro V emission standard | ↗ |
| Max. hoist height | 331 ft (101 m) | ↗ |
| Max. load capacity | 352,740 lb (160 t) | ↗ |
| Max.load moment | 4763 kN.m | ↗ |
| Number of axles | 5 | ↗ |
| Telescopic boom | 246 ft (75 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
