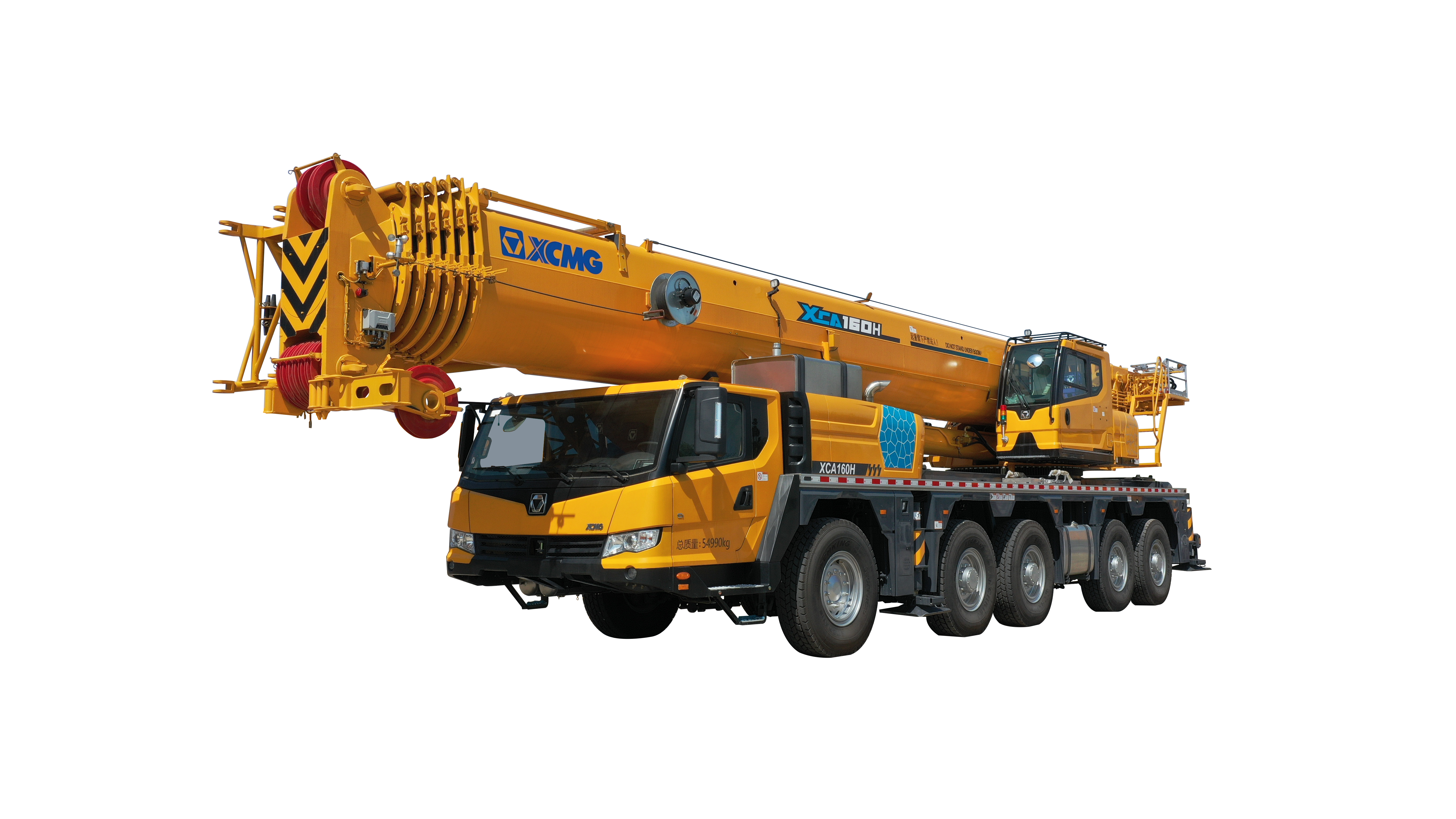

XCMG
XCA160H
352,740 lb (160 t)
Lifting capacity
Documents
Full specifications
| Dead Weight in Travel State | 121,232 lb (54,990 kg) | ↗ |
| Dimensions | 16225×3000×3995 mm | ↗ |
| Drive engine model | WP13.530E501 | ↗ |
| Drive engine power | 390 kw | ↗ |
| Drive/Steering | 10x8x10 | ↗ |
| Driving speed | 80 km/h | ↗ |
| Emission standard | EU Stage V | ↗ |
| Max. hoist height | 338 ft (103 m) | ↗ |
| Max. load capacity | 352,740 lb (160 t) | ↗ |
| Max.load moment | 5145 kN.m | ↗ |
| Number of axles | 5 | ↗ |
| Telescopic boom | 256 ft (78 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
