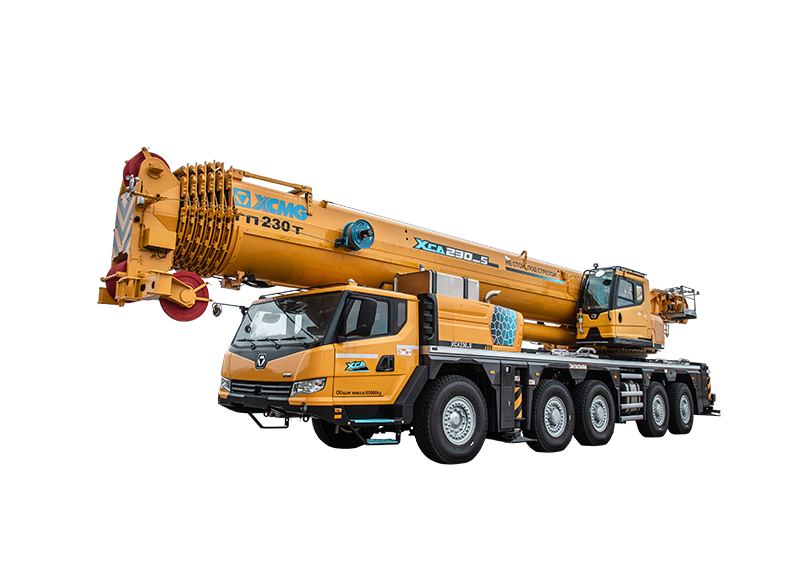

XCMG
XCA230_S
507,063 lb (230 t)
Lifting capacity
Full specifications
| Dead Weight in Travel State | 132,277 lb (60,000 kg) | ↗ |
| Dimensions | 15850x3000x3980 mm | ↗ |
| Drive engine model | WP13 | ↗ |
| Drive engine power | 390 kw | ↗ |
| Drive/Steering | 10x8x10 | ↗ |
| Driving speed | 80 km/h | ↗ |
| Emission standard | EU Stage V | ↗ |
| Max. hoist height | 374 ft (114 m) | ↗ |
| Max. load capacity | 507,063 lb (230 t) | ↗ |
| Max.load moment | 7393 kN.m | ↗ |
| Number of axles | 5 | ↗ |
| Telescopic boom | 246 ft (75 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
