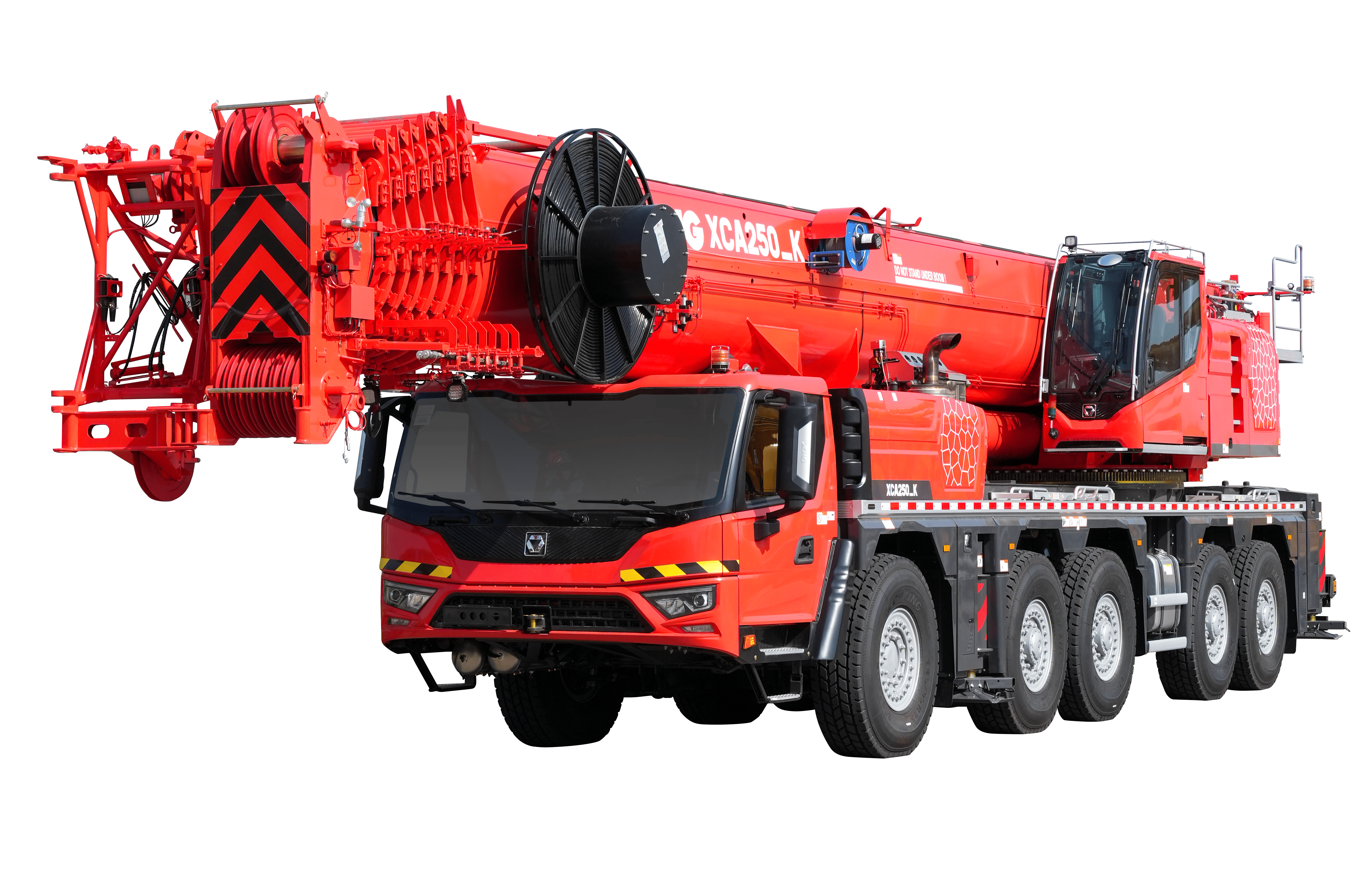

XCMG
XCA250_K
551,156 lb (250 t)
Lifting capacity
Full specifications
| Dead Weight in Travel State | 156,087 lb (70,800 kg) | ↗ |
| Dimensions | 17280×3000×4050 mm | ↗ |
| Drive engine model | OM471LA.E5-1 | ↗ |
| Drive engine power | 390 kw | ↗ |
| Drive/Steering | 10×8 | ↗ |
| Driving speed | 60 km/h | ↗ |
| Emission standard | EU Stage V、EPA /CARB Tier 4 final | ↗ |
| Max. hoist height | 377 ft (115 m) | ↗ |
| Max. load capacity | 551,156 lb (250 t) | ↗ |
| Max.load moment | 6586 kN.m | ↗ |
| Number of axles | 5 | ↗ |
| Telescopic boom | 289 ft (88 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
