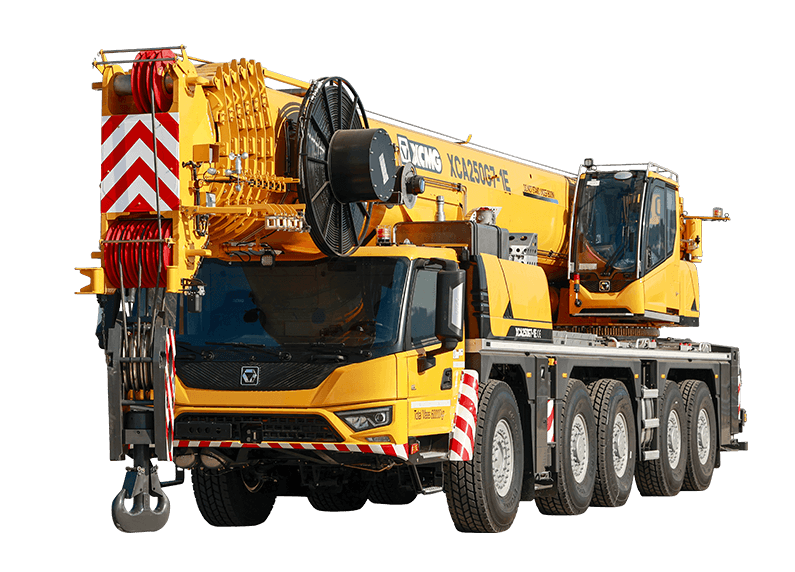

XCMG
XCA250G7-1E
551,156 lb (250 t)
Lifting capacity
Documents
Full specifications
| Dead Weight in Travel State | 132,277 lb (60,000 kg) | ↗ |
| Dimensions | 16235×3000×4000 mm | ↗ |
| Drive engine model | OM471LA | ↗ |
| Drive engine power | 390 kw | ↗ |
| Drive/Steering | 10×6×10 | ↗ |
| Driving speed | 80 km/h | ↗ |
| Emission standard | EU Stage V | ↗ |
| Max. hoist height | 376 ft (114 m) | ↗ |
| Max. load capacity | 551,156 lb (250 t) | ↗ |
| Max.load moment | 6769 kN.m | ↗ |
| Number of axles | 5 | ↗ |
| Telescopic boom | 249 ft (76 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
