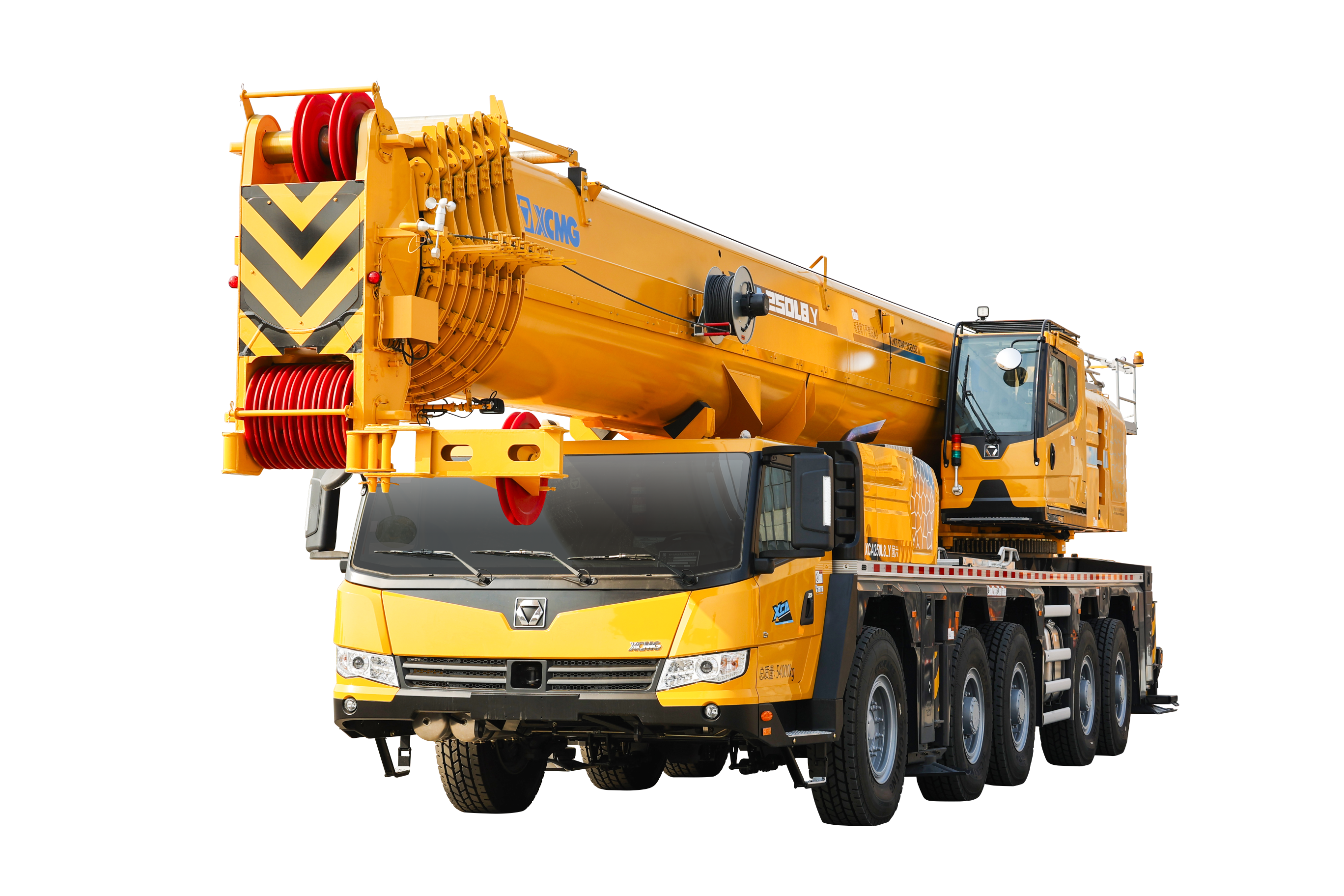

XCMG
XCA250L8_Y
551,156 lb (250 t)
Lifting capacity
Full specifications
| Dead Weight in Travel State | 119,050 lb (54,000 kg) | ↗ |
| Dimensions | 16203×3000×4000 mm | ↗ |
| Drive engine model | WP13.550E62（Weichai） | ↗ |
| Drive engine power | 405 kw | ↗ |
| Drive/Steering | 10x8 | ↗ |
| Driving speed | 80 km/h | ↗ |
| Emission standard | China VI emission standard | ↗ |
| Max. hoist height | 377 ft (115 m) | ↗ |
| Max. load capacity | 551,156 lb (250 t) | ↗ |
| Max.load moment | 6586 kN.m | ↗ |
| Number of axles | 5 | ↗ |
| Telescopic boom | 289 ft (88 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
