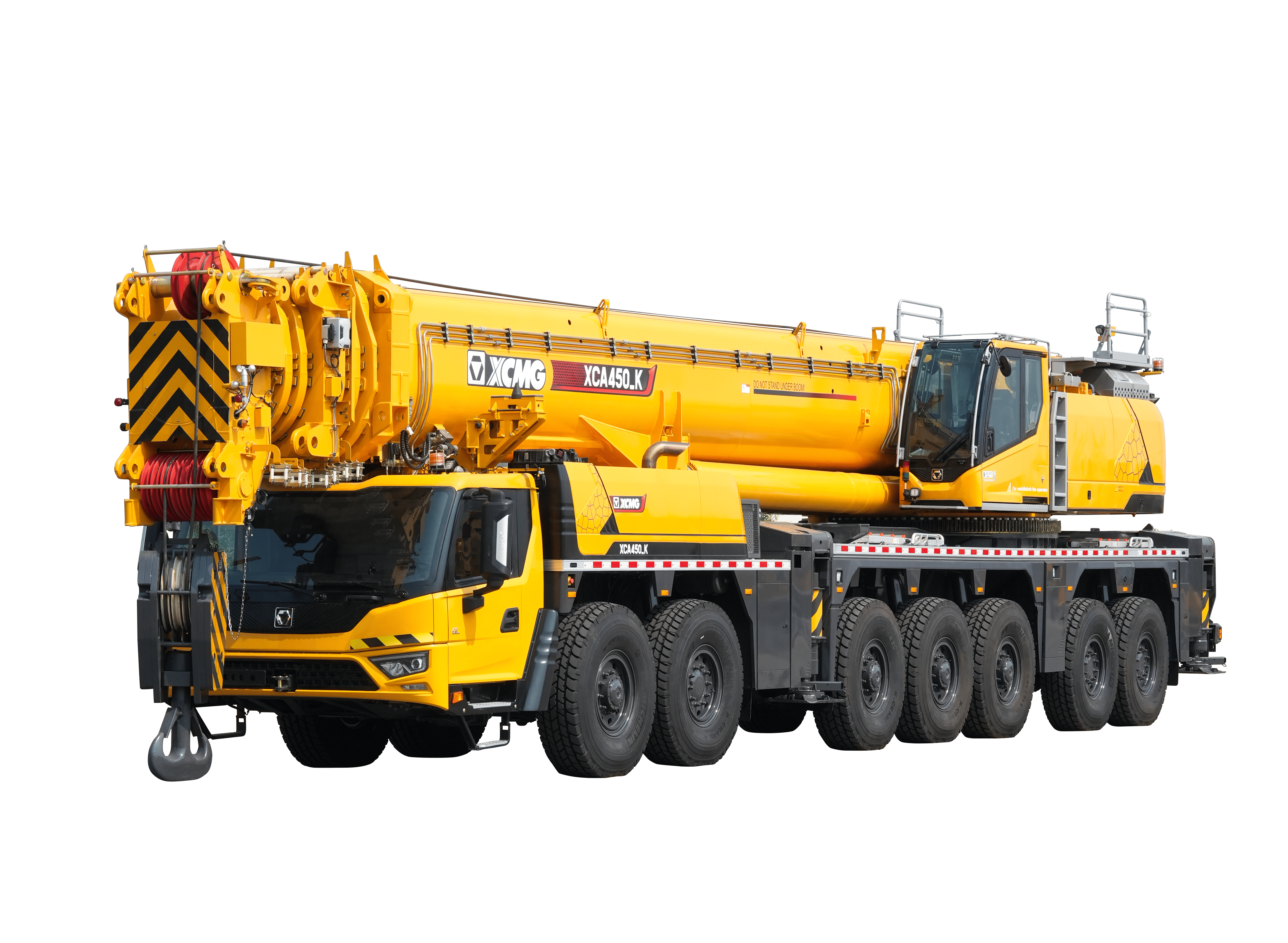

XCMG
XCA450_K
992,080 lb (450 t)
Lifting capacity
Full specifications
| Dead Weight in Travel State | 216,494 lb (98,200 kg) | ↗ |
| Dimensions | 19608×3000×4000 mm | ↗ |
| Drive engine model | OM473LA.E5-1 | ↗ |
| Drive engine power | 480 kw | ↗ |
| Drive/Steering | 14×8×14 | ↗ |
| Driving speed | 60 km/h | ↗ |
| Emission standard | EU Stage V | ↗ |
| Max. hoist height | 436 ft (133 m) | ↗ |
| Max. load capacity | 992,080 lb (450 t) | ↗ |
| Max.load moment | 12348 kN.m | ↗ |
| Number of axles | 7 | ↗ |
| Telescopic boom | 305 ft (93.1 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
