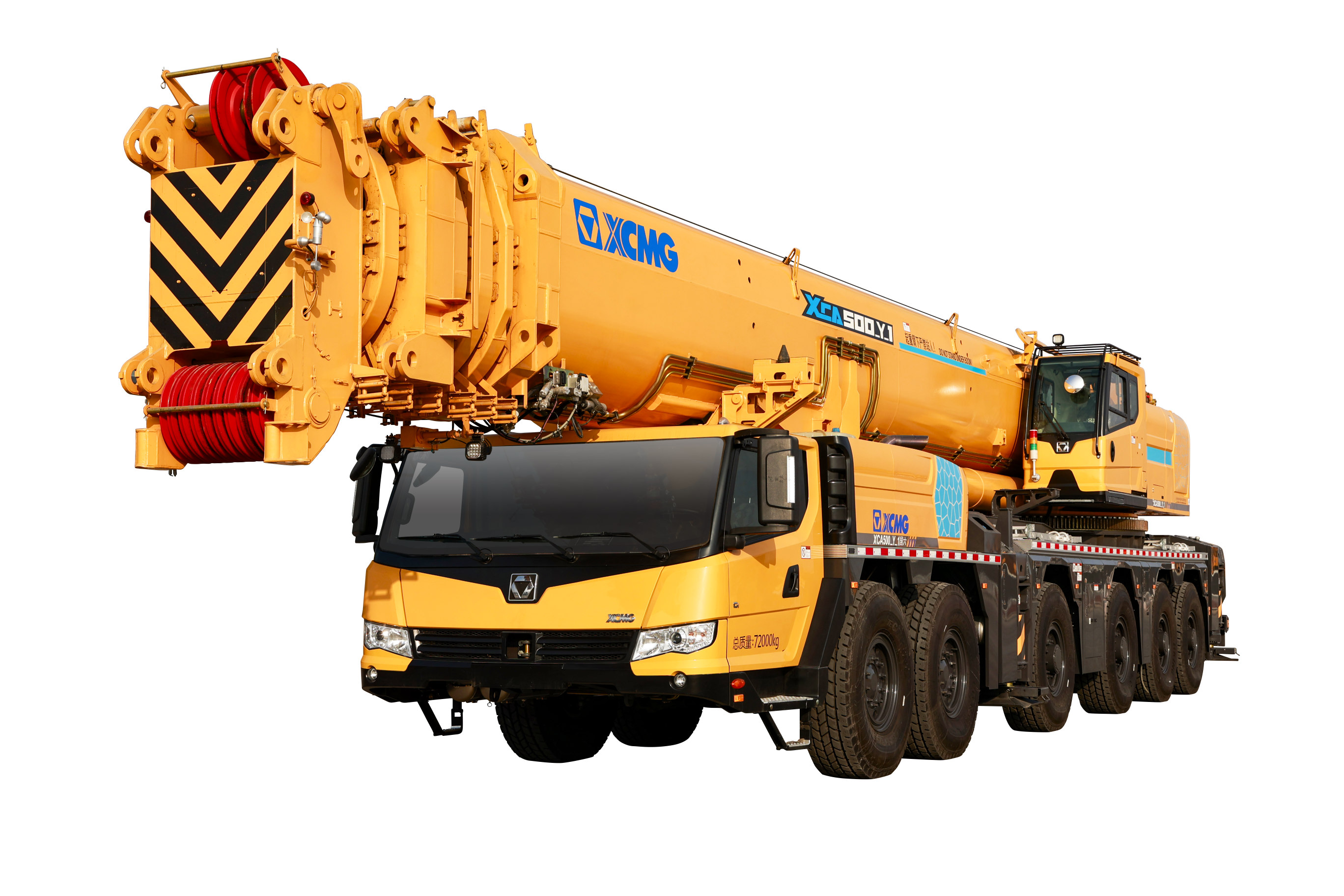

XCMG
XCA500_Y_1
1,102,311 lb (500 t)
Lifting capacity
Full specifications
| Dead Weight in Travel State | 158,733 lb (72,000 kg) | ↗ |
| Dimensions | 16835×3000×4000 mm | ↗ |
| Drive engine model | WP15H660E61（Weichai） | ↗ |
| Drive engine power | 485 kw | ↗ |
| Drive/Steering | 12×8×12 | ↗ |
| Driving speed | 80 km/h | ↗ |
| Emission standard | China VI emission standard | ↗ |
| Max. hoist height | 449 ft (137 m) | ↗ |
| Max. load capacity | 1,102,311 lb (500 t) | ↗ |
| Max.load moment | 13800 kN.m | ↗ |
| Number of axles | 6 | ↗ |
| Telescopic boom | 279 ft (85 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
