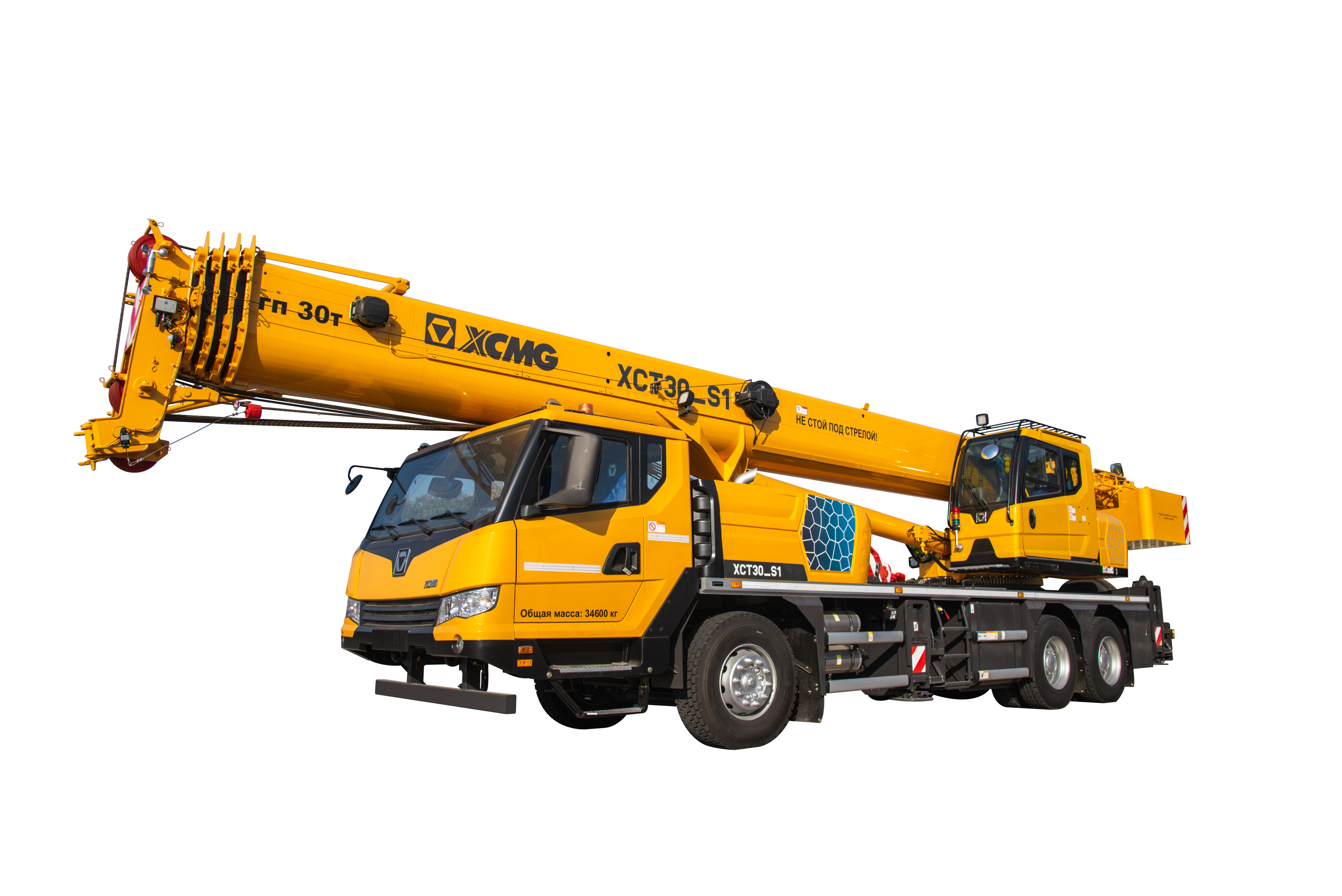

XCMG
XCT30_S1
66,139 lb (30 t)
Lifting capacity
Full specifications
| Dead Weight in Travel State | 76,280 lb (34,600 kg) | ↗ |
| Dimensions | 13748×2550×3460 mm | ↗ |
| Drive engine model | SC9DF340Q5 | ↗ |
| Drive engine power | 251 kw | ↗ |
| Drive/Steering | 6x4x2 | ↗ |
| Driving speed | 90 km/h | ↗ |
| Emission standard | Euro V | ↗ |
| Max. hoist height | 168 ft (51.1 m) | ↗ |
| Max. load capacity | 66,139 lb (30 t) | ↗ |
| Max.load moment | 1240 kN.m | ↗ |
| Number of axles | 3 | ↗ |
| Telescopic boom | 144 ft (44 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
