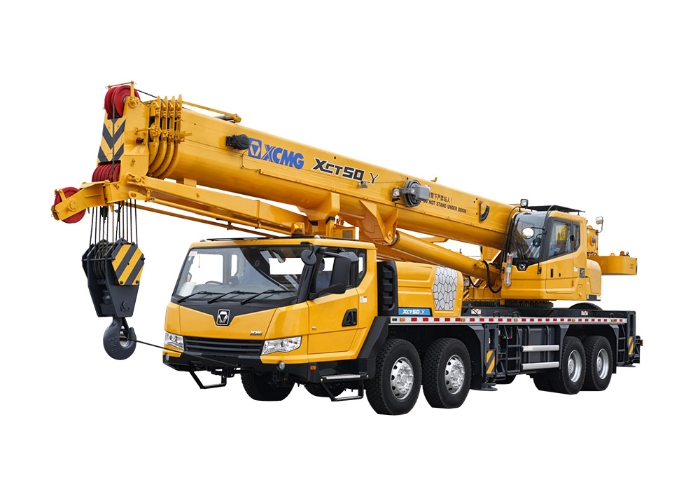

XCMG
XCT50_Y
110,231 lb (50 t)
Lifting capacity
Full specifications
| Dead Weight in Travel State | 88,405 lb (40,100 kg) | ↗ |
| Dimensions | 14045x2790x3615 mm | ↗ |
| Drive engine model | WP9H336E62 | ↗ |
| Drive engine power | 247 kw | ↗ |
| Drive/Steering | 8x4x4 | ↗ |
| Driving speed | 48 km/h | ↗ |
| Emission standard | BS-IV | ↗ |
| Max. hoist height | 197 ft (60 m) | ↗ |
| Max. load capacity | 110,231 lb (50 t) | ↗ |
| Max.load moment | 2050 kN.m | ↗ |
| Number of axles | 4 | ↗ |
| Telescopic boom | 146 ft (44.5 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
