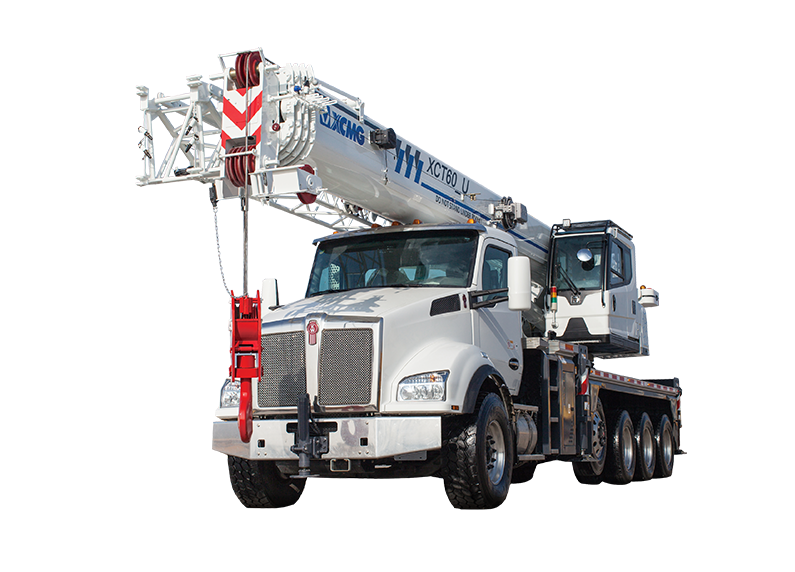

XCMG
XCT60_U
119,050 lb (54 t)
Lifting capacity
Documents
Full specifications
| Dead Weight in Travel State | 79366lb kg | ↗ |
| Dimensions | 548.8x102x153.5in mm | ↗ |
| Drive engine model | MX-13 | ↗ |
| Drive engine power | 455HP kw | ↗ |
| Drive/Steering | 10x8x2 | ↗ |
| Driving speed | 65mile/h km/h | ↗ |
| Emission standard | EPA2021 | ↗ |
| Max. hoist height | 208ft m | ↗ |
| Max. load capacity | 60USt | ↗ |
| Max.load moment | 1172000lbf*ft kN.m | ↗ |
| Number of axles | 5 | ↗ |
| Telescopic boom | 154ft m | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
