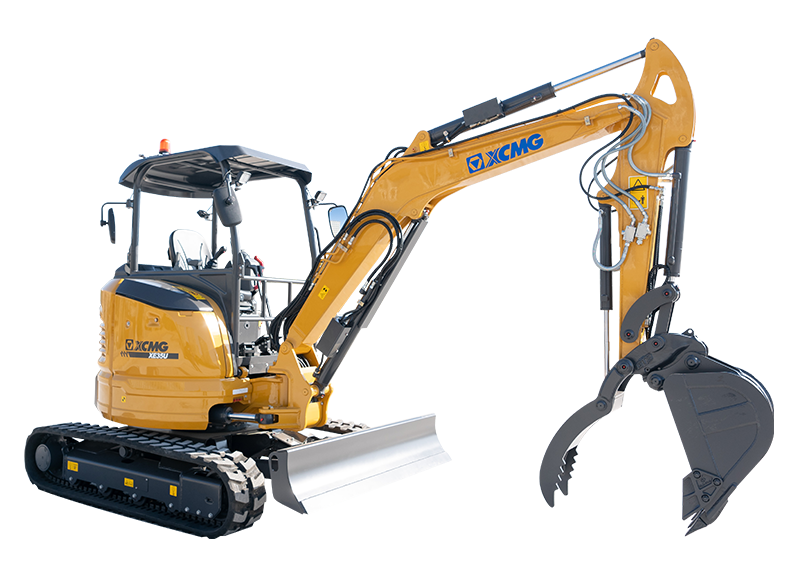

XCMG
XE35U(Canopy)
24 hp
Engine power
9,259 lb (4,200 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Hitachi ZX38U-6 | 98% | 25 hp | 9,370 lb (4,250 kg) |
| Hitachi ZX33U-6 | 95% | 25 hp | 8,664 lb (3,930 kg) |
| Hyundai Construction Equipment HX35AZ | 95% | 25 hp | 8,554 lb (3,880 kg) |
| Hyundai Construction Equipment R35Z-9AK | 93% | 25 hp | 8,025 lb (3,640 kg) |
| Kioti MX350AE | 93% | 22 hp | 9,105 lb (4,130 kg) |
| Case CX36 | 93% | 23 hp | 8,569 lb (3,887 kg) |
Documents
Full specifications
| Arm digging force | 20.3 kN | ↗ |
| Bucket capacity | 0.12 m³ | ↗ |
| Bucket digging force | 28.6 kN | ↗ |
| Displacement | 1.642 L | ↗ |
| Emission standard | Tier 4 Final | ↗ |
| Engine model | Yanmr 3TNV88F | ↗ |
| Maximum torque/speed | 85.3-94.2/1320 N.m | ↗ |
| Operating weight | 9,259 lb (4,200 Kg) | ↗ |
| Rated power | 18.2 kW/rpm | ↗ |
| Swing speed | 9 r/min | ↗ |
| Travel speed | 3.6/2.2 km/h | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
