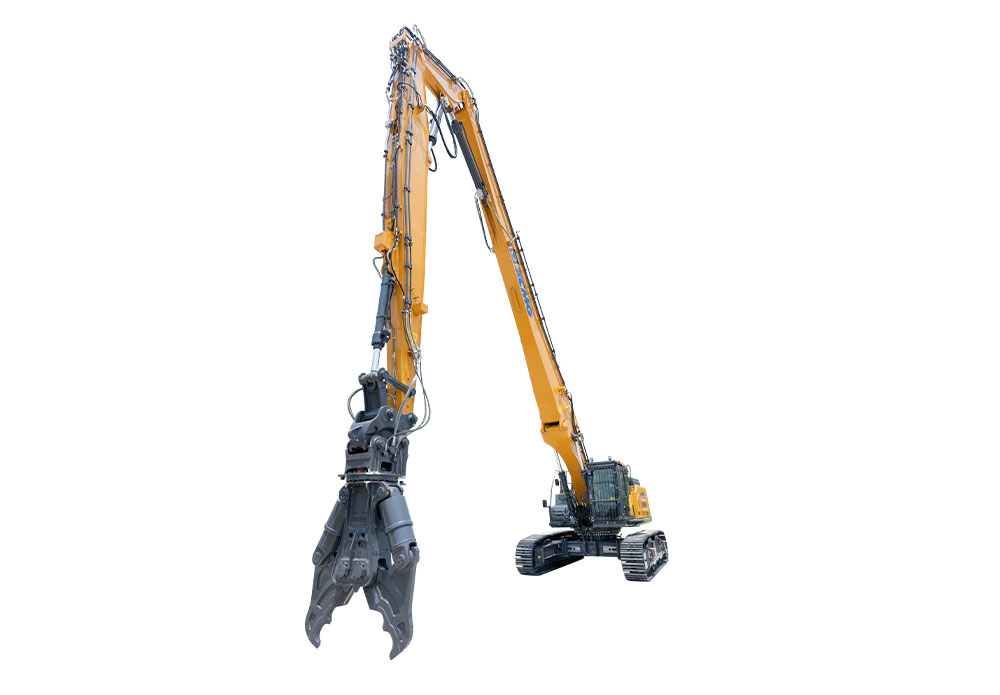

XCMG
XE500DHR
430 hp
Engine power
110,231 lb (50,000 kg)
Max reach
134,482 lb (61,000 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max reach | Operating weight |
|---|---|---|---|---|
| Volvo EC500 High Reach | 99% | 423 hp | 110,231 lb (50,000 kg) | 135,139 lb (61,298 kg) |
| Volvo EC480E HR | 94% | 381 hp | 105,822 lb (48,000 kg) | 140,038 lb (63,520 kg) |
| Hitachi ZX490-7 SLF | 89% | 397 hp | - | 115,081 lb (52,200 kg) |
| Hitachi ZX600MC-7 Demolition | 87% | 397 hp | - | 165,457 lb (75,050 kg) |
| Volvo EC400 High Reach | 79% | 344 hp | 88,185 lb (40,000 kg) | 105,381 lb (47,800 kg) |
| Volvo EC380E HR | 77% | 308 hp | 83,776 lb (38,000 kg) | 112,436 lb (51,000 kg) |
Full specifications
| Arm digging force | / kN | ↗ |
| Bucket capacity | / m³ | ↗ |
| Bucket digging force | / kN | ↗ |
| Displacement | 11.8 L | ↗ |
| Emission standard | National Stage Ⅲ | ↗ |
| Engine model | Cummins QSX12 | ↗ |
| Maximum torque/speed | 1898/1400 N.m | ↗ |
| Operating weight | 127,868–141,096 lb (58,000–64,000 Kg) | ↗ |
| Rated power | 321 kW/rpm | ↗ |
| Swing speed | 9 r/min | ↗ |
| Travel speed | 5.6/2.9 km/h | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
