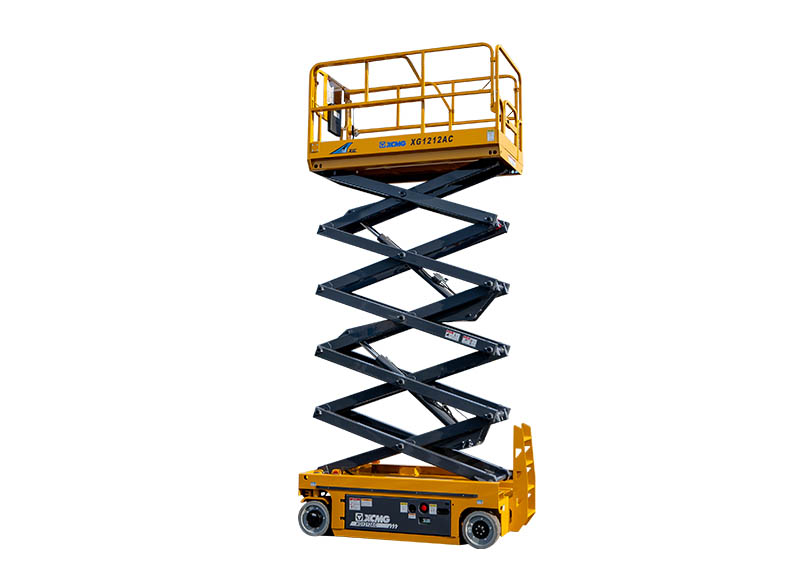

XCMG
XG1212AC
705 lb (320 kg)
Platform capacity
38.9 ft (11.9 m)
Working height
39.4 ft (working_height)
platform height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height | platform height |
|---|---|---|---|---|
| Haulotte C12 | 100% | 705 lb (320 kg) | 38.5 ft (11.7 m) | 39.4 ft (working_height) |
| Haulotte Compact 12 | 100% | 705 lb (320 kg) | 38.5 ft (11.7 m) | 39.4 ft (working_height) |
| JCB S3246E | 100% | 705 lb (320 kg) | 38.9 ft (11.9 m) | - |
| Noblelift SC3345E | 100% | 701 lb (318 kg) | 39 ft (11.9 m) | - |
| Genie GS-3246 E-Drive Scissor Lift | 99% | 701 lb (318 kg) | 38.5 ft (11.7 m) | - |
| MEC 4046SEAC Compact | 97% | 750 lb (340 kg) | 39 ft (11.9 m) | - |
Full specifications
| Max. Grade Ability | 25 % | ↗ |
| Max. Platform Height | 32.3 ft (9.8 m) | ↗ |
| Max. Working Height | 38.9 ft (11.8 m) | ↗ |
| Max.Lift capacity | 705 lb (320 kg) | ↗ |
| Max.driving speed | 4（stowed) 0.8（raised） km/h | ↗ |
| Min. ground clearance | 20（pothole protection support） 100（retraction） mm | ↗ |
| Min. turning radius | 2.3（outside） m | ↗ |
| Total Weight | 6,614 lb (3,000 kg) | ↗ |
| Wheel Base | 73.9 in (1,877 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
