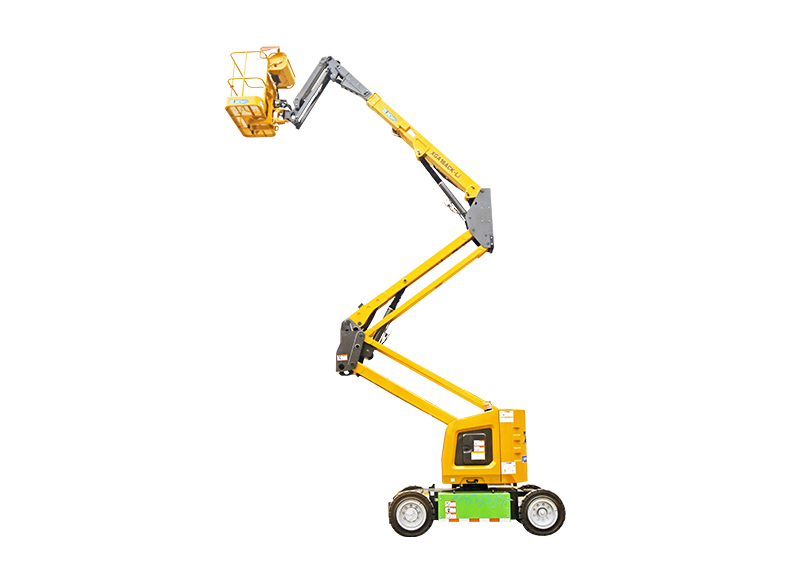

XCMG
XGA16ACKII
507 lb (230 kg)
Platform capacity
52.5 ft (16.0 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Haulotte HA16 RTJ | 100% | 507 lb (230 kg) | 52.5 ft (16.0 m) |
| Haulotte HA16 RTJ O | 100% | 507 lb (230 kg) | 52.5 ft (16.0 m) |
| Haulotte HA16 RTJ PRO | 100% | 507 lb (230 kg) | 52.5 ft (16.0 m) |
| Haulotte SIGMA16 | 100% | 507 lb (230 kg) | 52.8 ft (16.1 m) |
| Snorkel A46JE | 99% | 500 lb (227 kg) | 52 ft (15.8 m) |
| Snorkel A46JRT | 99% | 500 lb (227 kg) | 52.9 ft (16.1 m) |
Documents
Full specifications
| 1st Boom luffing range | -12°~ +65° | ↗ |
| 2nd Boom luffing range | -5°～73° | ↗ |
| Dimension of working platform | 1400x700x1150 mm | ↗ |
| Drive speed | 4.8 stowed | ↗ |
| Fly jib length | 48.8 in (1,240 mm) | ↗ |
| Flying jib luffing range | -65°～70° | ↗ |
| Ground clearance | 9.8 in (250 mm) | ↗ |
| Lift capacity | 507 lb (230 kg) | ↗ |
| Max.Gradeability | 30 % | ↗ |
| Max.Occupants | 2 | ↗ |
| Max.Platform height | 45.9 ft (14 m) | ↗ |
| Max.Working range | 26.6 ft (8.1 m) | ↗ |
| Max.Working slope | X-3°/Y-3° | ↗ |
| Max.up and over clearance | 24.9 ft (7.6 m) | ↗ |
| Min.Turning radius | 1100/3300 inside/outside | ↗ |
| Overall dimension-Stowed | 6560x1750x2000 mm | ↗ |
| Overall dimension-Transportation | 5650x1750x2400 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Turntable rotation | 355° | ↗ |
| Turntable tailswing | 0 stowed | ↗ |
| Weight | 14,771 lb (6,700 kg) | ↗ |
| Wheelbase | 79.1 in (2,010 mm) | ↗ |
| Working Height | 630 in (16,000 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
