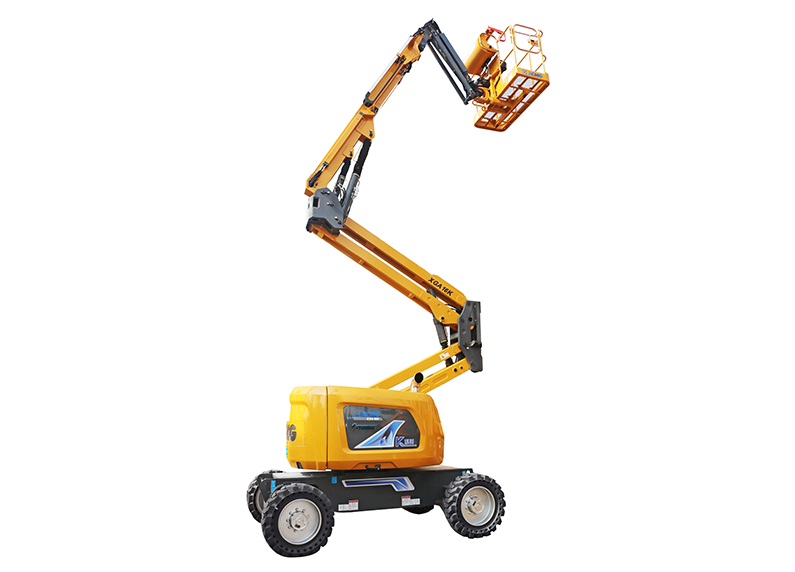

XCMG
XGA16K
564 lb (256 kg)
Platform capacity
54.6 ft (16.6 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Snorkel A46JRTE | 96% | 600 lb (272 kg) | 52.9 ft (16.1 m) |
| JLG 520AJ | 95% | 551 lb (250 kg) | 59.1 ft (18.0 m) |
| Versalift VST-5000/5500/6000 Series | 94% | 624 lb (283 kg) | 56.1 ft (17.1 m) |
| Haulotte HA16 RTJ | 93% | 507 lb (230 kg) | 52.5 ft (16.0 m) |
| Haulotte HA16 RTJ O | 93% | 507 lb (230 kg) | 52.5 ft (16.0 m) |
| Haulotte HA16 RTJ PRO | 93% | 507 lb (230 kg) | 52.5 ft (16.0 m) |
Documents
Full specifications
| 1st Boom luffing range | 0°～65° | ↗ |
| 2nd Boom luffing range | -11°～75° | ↗ |
| Dimension of working platform | 1830x760x1150 mm | ↗ |
| Drive speed | 5.5 stowed | ↗ |
| Fly jib length | 55.9 in (1,420 mm) | ↗ |
| Flying jib luffing range | -65°～70° | ↗ |
| Ground clearance | 11.8 in (300 mm) | ↗ |
| Lift capacity | 256(unlimited)/350(limited) kg | ↗ |
| Max.Gradeability | 0.45 % | ↗ |
| Max.Occupants | 2/3 | ↗ |
| Max.Platform height | 48.0 ft (14.6 m) | ↗ |
| Max.Working range | 28.9 ft (8.8 m) | ↗ |
| Max.Working slope | X-5°/Y-5° | ↗ |
| Max.up and over clearance | 25.3 ft (7.7 m) | ↗ |
| Min.Turning radius | 3200/4700 inside/outside | ↗ |
| Overall dimension-Stowed | 6850x2320x2380 mm | ↗ |
| Overall dimension-Transportation | 5600x2320x2650 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Turntable rotation | 355° | ↗ |
| Turntable tailswing | 0 stowed | ↗ |
| Weight | 16,755 lb (7,600 kg) | ↗ |
| Wheelbase | 92.9 in (2,360 mm) | ↗ |
| Working Height | 655 in (16,630 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
