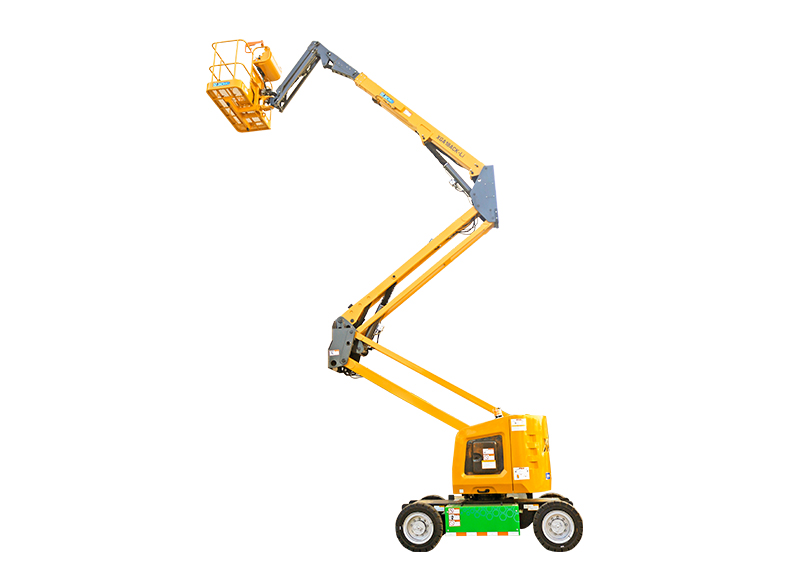

XCMG
XGA18ACKII
564 lb (256 kg)
Platform capacity
58.4 ft (17.8 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| JLG 520AJ | 98% | 551 lb (250 kg) | 59.1 ft (18.0 m) |
| Genie Z-51/30J RT | 94% | 500 lb (227 kg) | 57.7 ft (17.6 m) |
| JLG 600AJ | 93% | 500 lb (227 kg) | 60 ft (18.3 m) |
| Versalift VST-5000/5500/6000 Series | 93% | 624 lb (283 kg) | 56.1 ft (17.1 m) |
| Haulotte HA20 E | 92% | 551 lb (250 kg) | 67.3 ft (20.5 m) |
| Haulotte HA20 E PRO | 92% | 551 lb (250 kg) | 67.3 ft (20.5 m) |
Documents
Full specifications
| 1st Boom luffing range | -11°~ +65° | ↗ |
| 2nd Boom luffing range | -4°～73° | ↗ |
| Dimension of working platform | 1830x760x1150 mm | ↗ |
| Drive speed | 4.8 stowed | ↗ |
| Fly jib length | 55.9 in (1,420 mm) | ↗ |
| Flying jib luffing range | -65°～70° | ↗ |
| Ground clearance | 9.8 in (250 mm) | ↗ |
| Lift capacity | 564 lb (256 kg) | ↗ |
| Max.Gradeability | 45 % | ↗ |
| Max.Occupants | 2 | ↗ |
| Max.Platform height | 51.8 ft (15.8 m) | ↗ |
| Max.Working range | 30.5 ft (9.3 m) | ↗ |
| Max.Working slope | X-3°/Y-3° | ↗ |
| Max.up and over clearance | 27.6 ft (8.4 m) | ↗ |
| Min.Turning radius | 1100/3900 inside/outside | ↗ |
| Overall dimension-Stowed | 7250x1950x2020 mm | ↗ |
| Overall dimension-Transportation | 6000x1950x2600 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Turntable rotation | 355° | ↗ |
| Turntable tailswing | 0 stowed | ↗ |
| Weight | 16,755 lb (7,600 kg) | ↗ |
| Wheelbase | 81.1 in (2,060 mm) | ↗ |
| Working Height | 701 in (17,800 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
