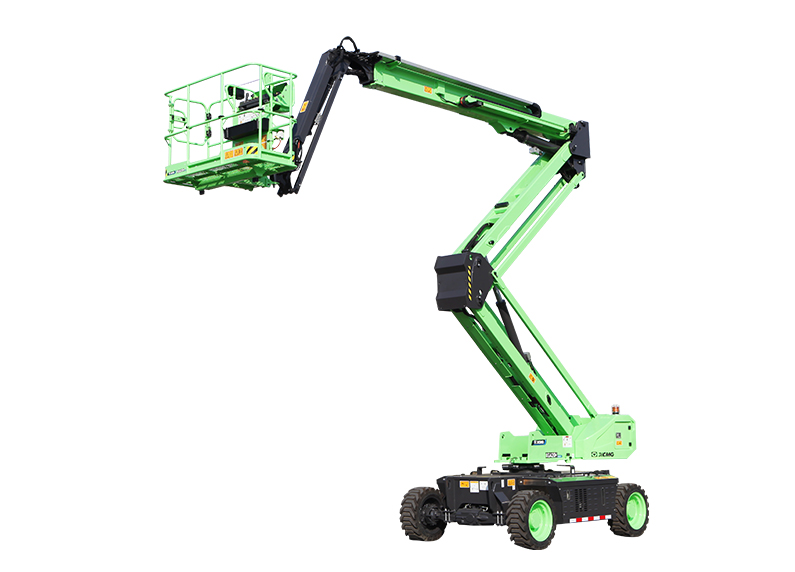

XCMG
XGA20H
705 lb (320 kg)
Platform capacity
59.6 ft (18.2 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Versalift VO-452/455/460 | 98% | 701 lb (318 kg) | 57.4 ft (17.5 m) |
| JCB A60E | 97% | 661 lb (300 kg) | 60 ft (18.3 m) |
| Haulotte HA16 E | 91% | 661 lb (300 kg) | 52.5 ft (16.0 m) |
| Haulotte HA16 E PRO | 91% | 661 lb (300 kg) | 52.5 ft (16.0 m) |
| Versalift VST-6300/6600/7100 Series | 91% | 750 lb (340 kg) | 68.2 ft (20.8 m) |
| Versalift VST-5000/5500/6000 Series | 91% | 624 lb (283 kg) | 56.1 ft (17.1 m) |
Documents
Full specifications
| Dimension of working platform | 1830×760×1150 mm | ↗ |
| Drive speed | 6 stowed | ↗ |
| Fly jib length | 72.8 in (1,850 mm) | ↗ |
| Flying jib luffing range | -65°～70° | ↗ |
| Ground clearance | 12.6 in (320 mm) | ↗ |
| Lift capacity | 320(unlimited) kg | ↗ |
| Max.Gradeability | 40% (22°) | ↗ |
| Max.Occupants | 2 | ↗ |
| Max.Platform height | 59.6 ft (18.2 m) | ↗ |
| Max.Working range | 36.5 ft (11.1 m) | ↗ |
| Max.Working slope | X-5°/ Y-5° | ↗ |
| Overall dimension-Stowed | 8067×2300×2570 mm | ↗ |
| Overall dimension-Transportation | 7215×2300×3000 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Turntable rotation | 360° | ↗ |
| Turntable tailswing | 750 Axle retracted/Axle extended | ↗ |
| Weight | 20,944 lb (9,500 kg) | ↗ |
| Wheelbase | 98.4 in (2,500 mm) | ↗ |
| Working Height | 7.9 in (202 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
