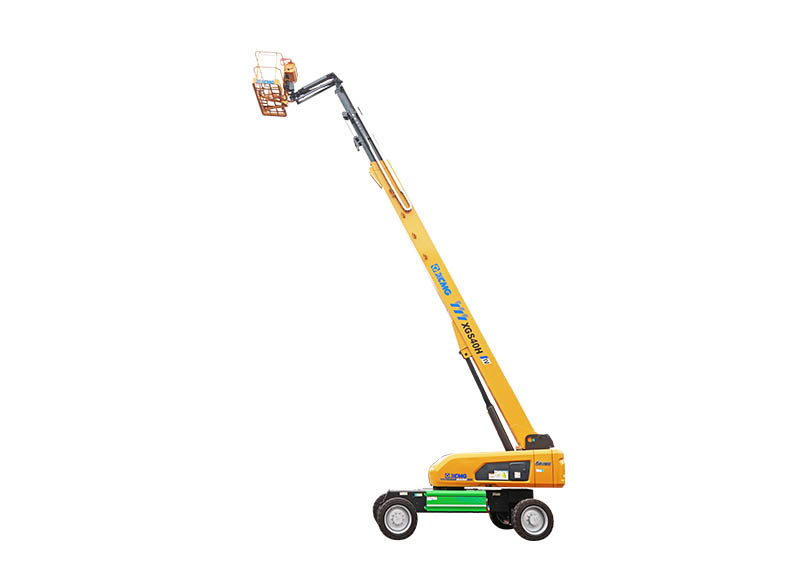

XCMG
XGS40H
661 lb (300 kg)
Platform capacity
132 ft (40.2 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Haulotte HA41 RTJ PRO | 87% | 507 lb (230 kg) | 136 ft (41.5 m) |
| Teupen LEO39GTplus | 85% | 882 lb (400 kg) | 127 ft (38.6 m) |
| JLG 1250AJP | 83% | 1,001 lb (454 kg) | 132 ft (40.3 m) |
| MEC 135-RJ | 83% | 899 lb (408 kg) | 142 ft (43.2 m) |
| Niftylift HR28 4x4 | 82% | 617 lb (280 kg) | 91.9 ft (28.0 m) |
| Haulotte HA32 RTJ PRO | 81% | 551 lb (250 kg) | 104 ft (31.8 m) |
Documents
Full specifications
| Dimension of working platform | 2400x900x1150 mm | ↗ |
| Drive speed | 5.0 km/h stowed | ↗ |
| Fly jib length | 55.9 in (1,420 mm) | ↗ |
| Flying jib luffing range | -60°~+70° | ↗ |
| Ground clearance | 11.8 in (300 mm) | ↗ |
| Lift capacity | 300kg (unlimited)/460kg(limited) | ↗ |
| Max.Gradeability | 40% (21°) | ↗ |
| Max.Occupants | 3 | ↗ |
| Max.Platform height | 125 ft (38.2 m) | ↗ |
| Max.Working range | 81.7 ft (24.9 m) | ↗ |
| Max.Working slope | X-3°/ Y-3° | ↗ |
| Min.Turning radius-Axle extended | 3300mm/8200mm(2-wheel) 2400mm/5800mm(4-wheel) inside/outside | ↗ |
| Min.Turning radius-Axle retracted | 7700mm/10800mm(2-wheel) 3300mm/6800mm(4-wheel) inside/outside | ↗ |
| Overall Width | 2490mm/3800mm Axle retracted/Axle extended | ↗ |
| Overall dimension-Stowed | 14060x2490x3000 mm | ↗ |
| Overall dimension-Transportation | 12500x2490x3000 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Telescopic boom luffing range | -6.5～+75° | ↗ |
| Turntable rotation | 360° | ↗ |
| Turntable tailswing | 2350mm/1700 mm Axle retracted/Axle extended | ↗ |
| Weight | 49,163 lb (22,300 kg) | ↗ |
| Wheelbase | 150 in (3,800 mm) | ↗ |
| Working Height | 1,583 in (40,200 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
