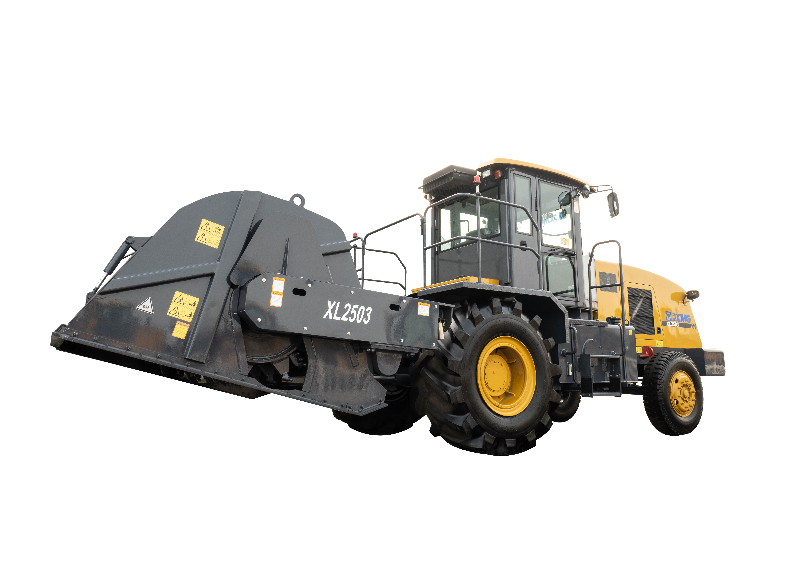

XCMG
XL2503
424 hp
Engine power
36,376 lb (16,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Ammann ABG 8820 | 79% | 268 hp | 38,250 lb (17,350 kg) |
| Bell G200 Motor Grader | 79% | 310 hp | 43,067 lb (19,535 kg) |
| Bell G160 Motor Grader | 77% | 280 hp | 41,359 lb (18,760 kg) |
| Dynapac F1000T | 75% | 230 hp | 37,997 lb (17,235 kg) |
| Ammann ABG 7820 | 73% | 235 hp | 32,849 lb (14,900 kg) |
| Bell G140 Motor Grader | 73% | 240 hp | 40,589 lb (18,411 kg) |
Full specifications
| Diameter Mixing Rotor/with picks | 50.4 in (1,280 mm) | ↗ |
| Emission | China Stage Ⅲ / | ↗ |
| Engine Model | WP12G430E300 | ↗ |
| Engine Speed | 1900 rpm | ↗ |
| Machine Weight | 36,376 lb (16,500 kg) | ↗ |
| Maximum Milling Depth | 0–15.7 in (0–400 mm) | ↗ |
| Mechanical | 8740x3060x3450 L×W×H/mm | ↗ |
| Number of Picks | 184 pcs | ↗ |
| Rated Power | 316 kW | ↗ |
| Tool Spacing | / mm | ↗ |
| Working Width | 98.4 in (2,500 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
