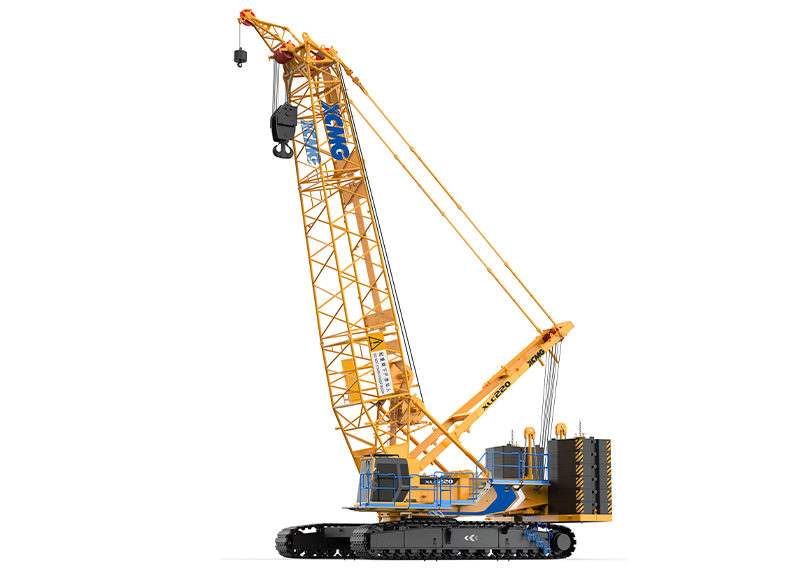

XCMG
XLC220
485,017 lb (220 t)
Lifting capacity
55.8 ft (17.0 m)
Max reach
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Lifting capacity | Max reach |
|---|---|---|---|
| Xcmg Cranes XLC200M | 95% | 440,925 lb (200 t) | 55.8 ft (17.0 m) |
| Tadano GTC-2000 | 79% | 399,037 lb (181 t) | 42.3 ft (12.9 m) |
| Xcmg Cranes XLC150M | 79% | 330,693 lb (150 t) | 62.3 ft (19.0 m) |
| Xcmg Cranes XGTC160 | 77% | 352,740 lb (160 t) | 45.6 ft (13.9 m) |
| Tadano GTC-1600 | 71% | 319,670 lb (145 t) | 42.8 ft (13.0 m) |
| Xcmg Cranes XGTC130 | 70% | 286,601 lb (130 t) | 45.6 ft (13.9 m) |
Full specifications
| Boom length | 55.8–272 ft (17–83 m) | ↗ |
| Boom working condition max. rated lifting capacity | 485,017 lb (220 t) | ↗ |
| Engine model | weichai | ↗ |
| Fixed jib length | 29.5–98.4 ft (9–30 m) | ↗ |
| Hoist winch max. single line speed | / m/min | ↗ |
| Light boom length | / | ↗ |
| Max. dimension of single unit in transport state:L×W×H | 9.0×3.0×3.3 m | ↗ |
| Max. load moment | 1239 t.m | ↗ |
| Max. mass of single unit in transport state | 72,532 lb (32.9 t) | ↗ |
| Max.boom length | / m | ↗ |
| Rated power | 247 kw | ↗ |
| Total vehicle mass | 191 Main hook block, 19m boom | ↗ |
| Tower jib length | / | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
