Load Trail

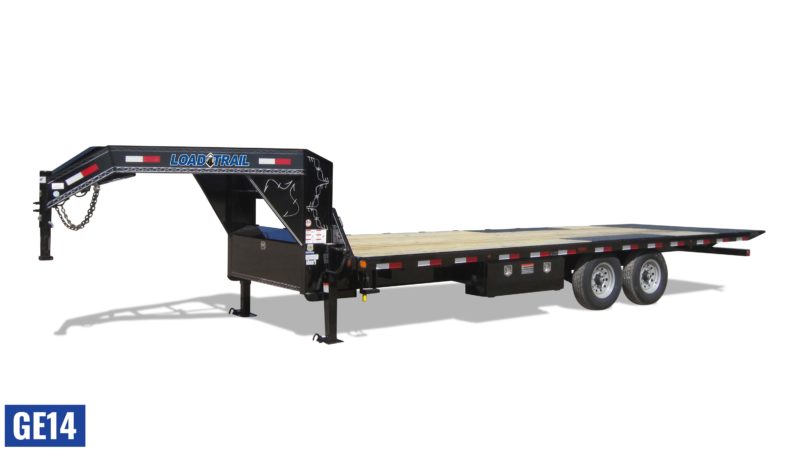

GE14 Gooseneck Equipment Tilt
13,999 lb (6,350 kg)
Capacidad de carga
Documentos
Especificaciones completas
| Axles | (2/3) 7,000 lb Dexter Electric Brake (Forward Self Adjusting) | ↗ |
| Coupler | 2-5/16" Adjustable Gooseneck | ↗ |
| Crossmembers | 3" Channel, 16" On-center | ↗ |
| Deck Frame | 6" I-Beam | ↗ |
| Deck Height | 36 in (91.4 cm) | ↗ |
| Deck Length | 22–32 ft (6.7–9.8 m) | ↗ |
| Deck Width | 102 in (259 cm) | ↗ |
| Floor | Treated Wood Flooring | ↗ |
| Frame | 10" I-Beam | ↗ |
| GAWR | 7,000 lbs/axle | ↗ |
| GVWR | 14,000 lbs (6,350 kg) | ↗ |
| Hydraulic Cylinder | 5" x 15.75" x 2" + Scissor Hoist | ↗ |
| Jacks | (2) 10,000 lb Drop-Leg | ↗ |
| Lights | LED Stop, Tail, & Clearance | ↗ |
| Neck | 10" I-Beam | ↗ |
| Paint | Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss | ↗ |
| Safety Chains | (2) 5/16" Grade 70 | ↗ |
| Suspension | Multi-Leaf Spring | ↗ |
| Tilt System | Power Up/Power Down w/12v Battery + 5amp Charger | ↗ |
| Tires | ST235/80 R16 LRE | ↗ |
| Wheels | 16" 8-Hole | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
