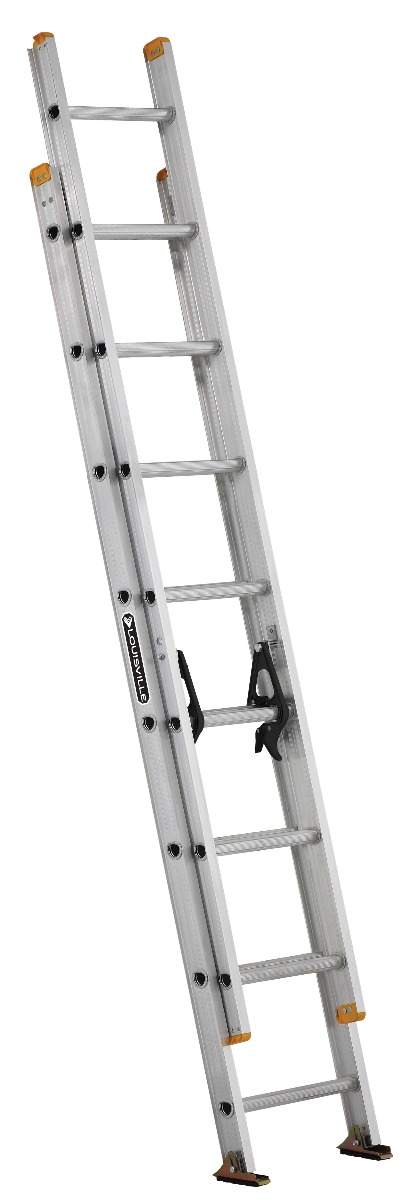

Louisville Ladder
AE3216
551 lb (250 kg)
Capacidad de carga
13 ft (4.0 m)
Altura máx
Documentos
Especificaciones completas
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6.625 | ↗ |
| Closed Height | 100 | ↗ |
| Closed Volume (cu. ft.) | 6.949 | ↗ |
| Closed Width (in) | 18.125 | ↗ |
| Duty Rating | Type I | ↗ |
| Inside Width Base (in) | 15.25 | ↗ |
| Inside Width Fly (in) | 13.875 | ↗ |
| Load Capacity (lbs) | 250 | ↗ |
| Material | Aluminum | ↗ |
| Max. Extended Length (ft) | 13 | ↗ |
| Maximum Standing Height (in) | 13’ | ↗ |
| Number of Steps | 16 | ↗ |
| Outside Width Base (in) | 17.5 | ↗ |
| Outside Width Fly (in) | 16.125 | ↗ |
| Rail Depth (in) | 3 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | AE3216 | ↗ |
| Section Length (ft) | 8 | ↗ |
| Size | 16 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 16 | ↗ |
| Weight | 27 | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
