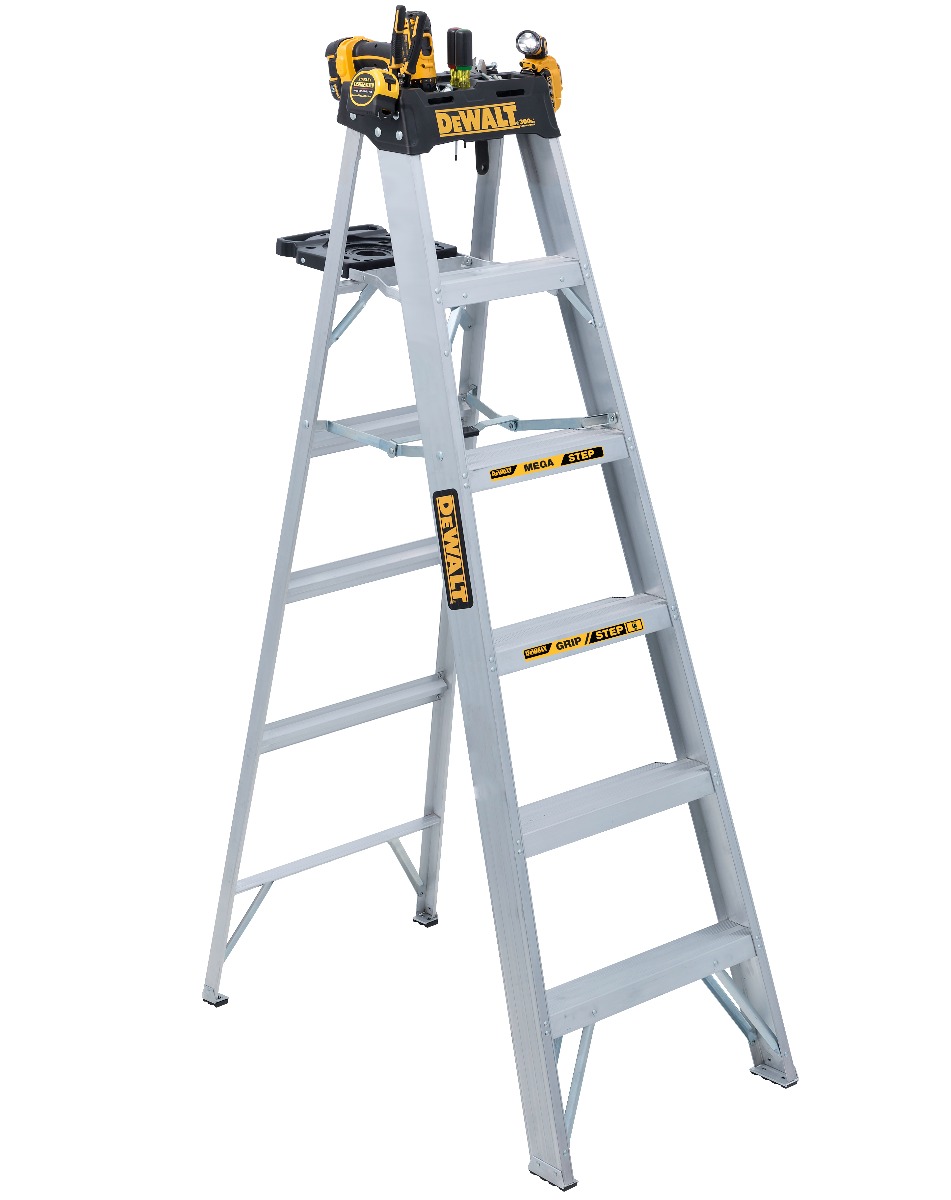

Louisville Ladder
DXL2010-10
661 lb (300 kg)
Capacidad de carga
10 ft (3.0 m)
Altura máx
Documentos
Especificaciones completas
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 7 | ↗ |
| Closed Height | 120 | ↗ |
| Closed Volume (cu. ft.) | 15.65009223 | ↗ |
| Closed Width (in) | 31 | ↗ |
| Duty Rating | Type IA | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Aluminum | ↗ |
| Maximum Reach (in) | 170 | ↗ |
| Maximum Standing Height (in) | 91 | ↗ |
| Number of Steps | 9 | ↗ |
| Open Depth (in) | 64.75 | ↗ |
| Open Height (in) | 114.06 | ↗ |
| Open Volume (cu. ft.) | 11.36 | ↗ |
| Open Volume (cu. m.) | 3.71 | ↗ |
| Open Width (in) | 30.6875 | ↗ |
| Rung Type | Mega Step | ↗ |
| SKU | DXL2010-10 | ↗ |
| Size | 10 | ↗ |
| Step Depth | 3 | ↗ |
| Style | Standard | ↗ |
| Top Width Closed (in) | 13.875 | ↗ |
| Weight | 31.51 | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
