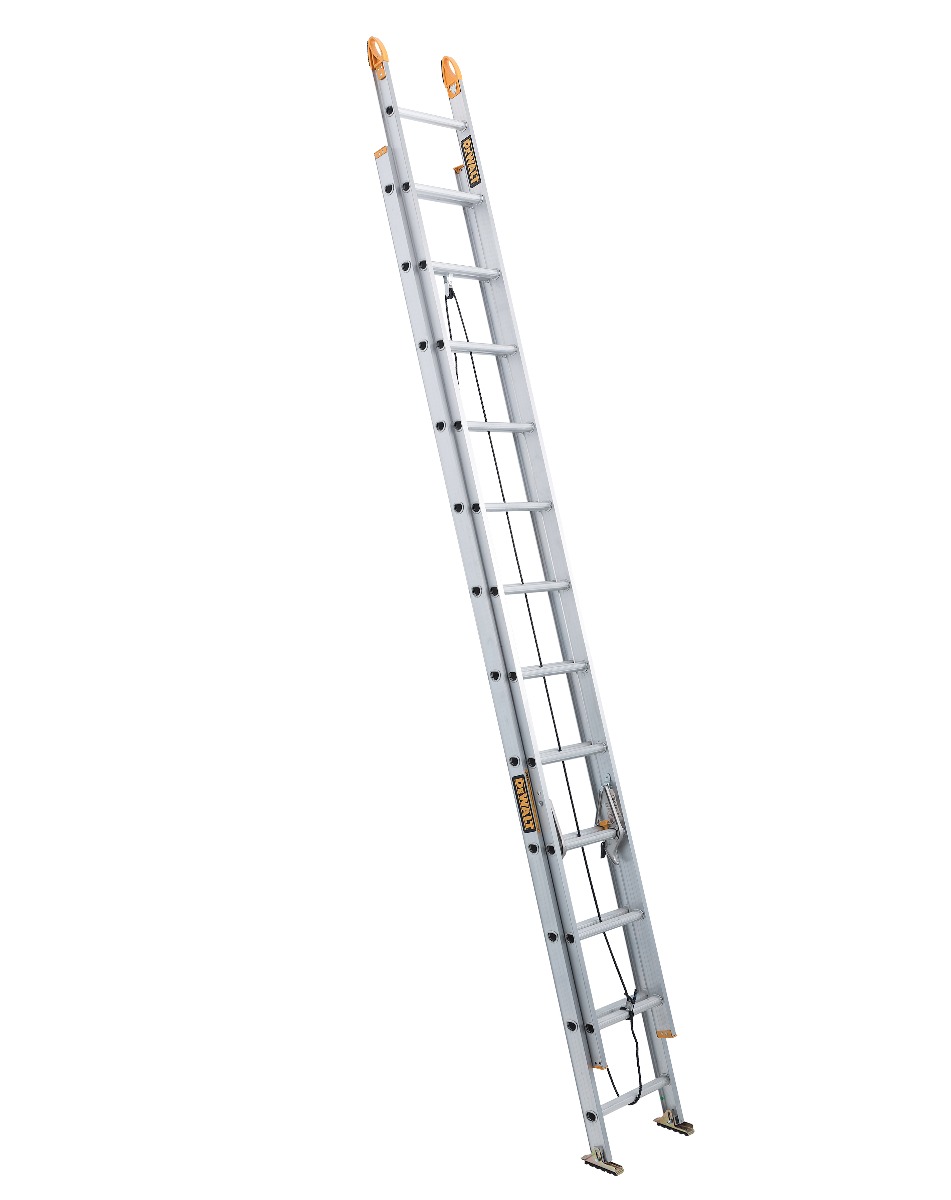

Louisville Ladder
DXL2220-16
496 lb (225 kg)
Capacidad de carga
13 ft (4.0 m)
Altura máx
Documentos
Especificaciones completas
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 5 | ↗ |
| Closed Height | 96 | ↗ |
| Closed Volume (cu. ft.) | 4.757 | ↗ |
| Closed Width (in) | 17.125 | ↗ |
| Duty Rating | Type II | ↗ |
| Inside Width Base (in) | 15.25 | ↗ |
| Inside Width Fly (in) | 14.375 | ↗ |
| Load Capacity (lbs) | 225 | ↗ |
| Material | Aluminum | ↗ |
| Max. Extended Length (ft) | 13 | ↗ |
| Maximum Standing Height (in) | 9.166 | ↗ |
| Number of Steps | 16 | ↗ |
| Open Depth (in) | 5 | ↗ |
| Open Height (in) | 156 | ↗ |
| Open Volume (cu. ft.) | 7.73 | ↗ |
| Open Volume (cu. m.) | 0.22 | ↗ |
| Open Width (in) | 17.125 | ↗ |
| Outside Width Base (in) | 17.125 | ↗ |
| Outside Width Fly (in) | 16.125 | ↗ |
| Rail Depth (in) | 3 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | DXL2220-16 | ↗ |
| Section Length (ft) | 8 | ↗ |
| Size | 16 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 16 | ↗ |
| Weight | 26 | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
