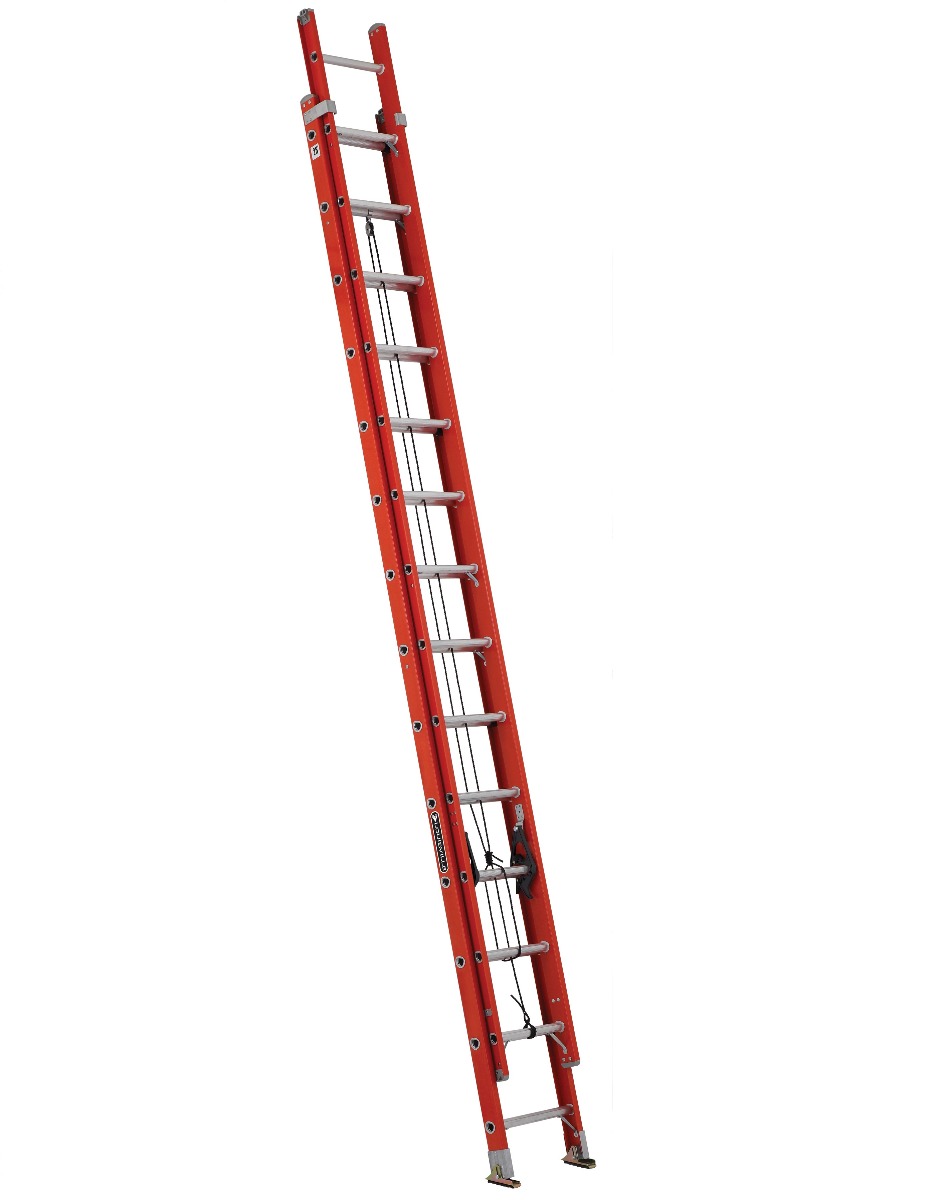

Louisville Ladder
FE3228
661 lb (300 kg)
Capacidad de carga
21.2 ft (6.5 m)
Altura máx
Documentos
Especificaciones completas
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6.25 | ↗ |
| Closed Height | 173.5 | ↗ |
| Closed Volume (cu. ft.) | 11.178 | ↗ |
| Closed Width (in) | 17.812 | ↗ |
| Duty Rating | Type IA | ↗ |
| Inside Width Base (in) | 14.645 | ↗ |
| Inside Width Fly (in) | 13.688 | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Max. Extended Length (ft) | 25 | ↗ |
| Maximum Standing Height (in) | 21.166 | ↗ |
| Number of Steps | 28 | ↗ |
| Outside Width Base (in) | 17.063 | ↗ |
| Outside Width Fly (in) | 16.088 | ↗ |
| Rail Depth (in) | 3.25 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | FE3228 | ↗ |
| Section Length (ft) | 14 | ↗ |
| Size | 28 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 28 | ↗ |
| Weight | 58 | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
