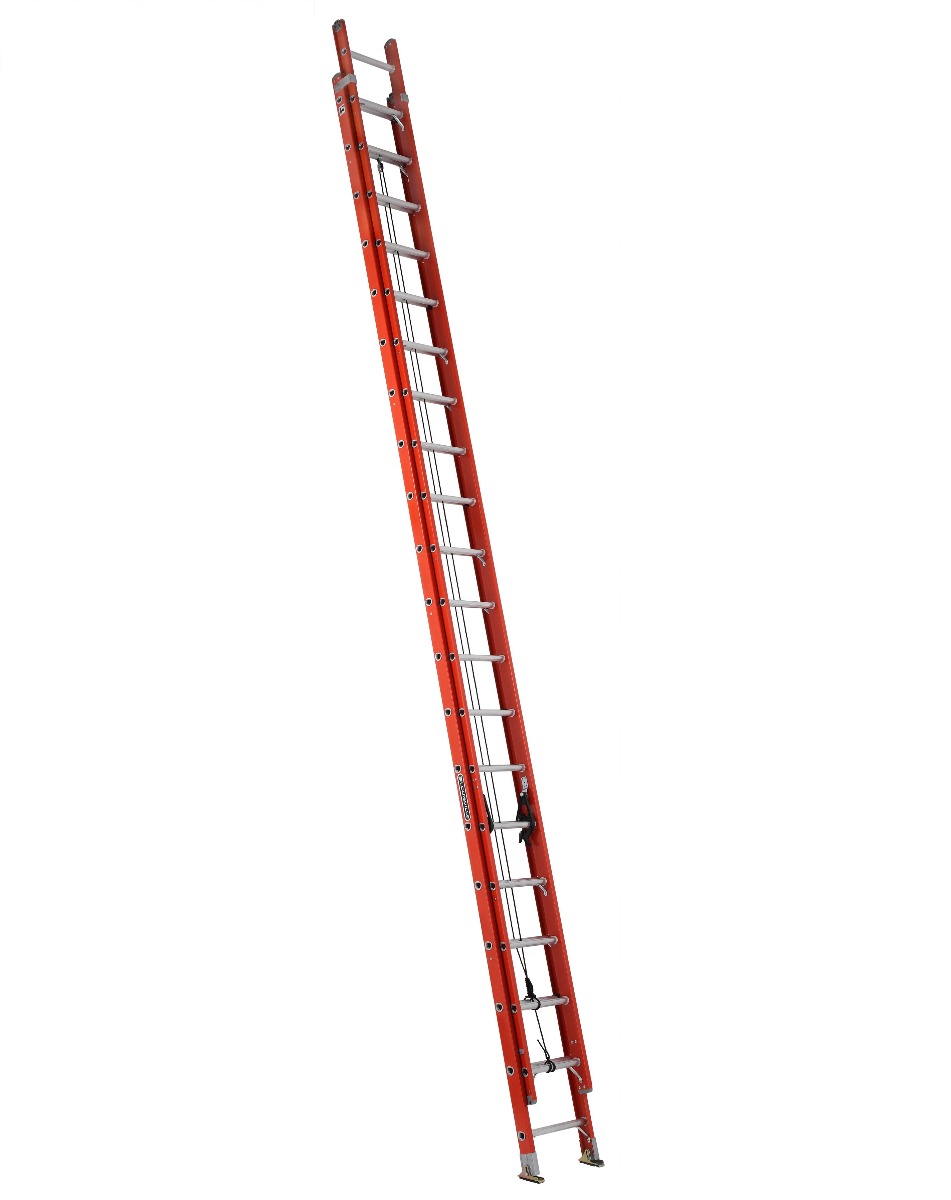

Louisville Ladder
FE3240
661 lb (300 kg)
Capacidad de carga
30.8 ft (9.4 m)
Altura máx
Documentos
Especificaciones completas
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6.25 | ↗ |
| Closed Height | 245.5 | ↗ |
| Closed Volume (cu. ft.) | 16.375 | ↗ |
| Closed Width (in) | 18.437 | ↗ |
| Duty Rating | Type IA | ↗ |
| Inside Width Base (in) | 15.27 | ↗ |
| Inside Width Fly (in) | 14.313 | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Max. Extended Length (ft) | 35 | ↗ |
| Maximum Standing Height (in) | 30.833 | ↗ |
| Number of Steps | 40 | ↗ |
| Outside Width Base (in) | 17.688 | ↗ |
| Outside Width Fly (in) | 16.713 | ↗ |
| Rail Depth (in) | 3.34375 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | FE3240 | ↗ |
| Section Length (ft) | 20 | ↗ |
| Size | 40 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 40 | ↗ |
| Weight | 93 | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
