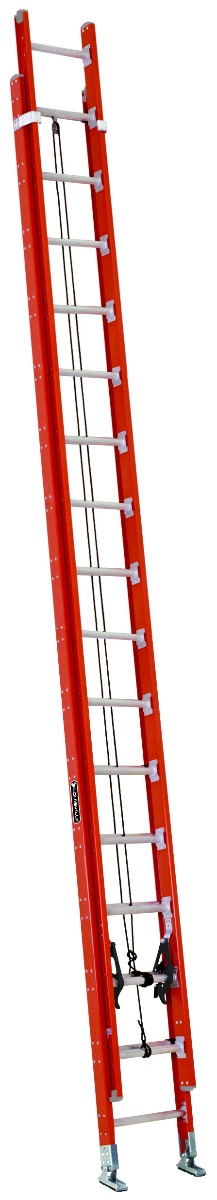

Louisville Ladder
FE7232
661 lb (300 kg)
Capacidad de carga
29 ft (8.8 m)
Altura máx
Documentos
Especificaciones completas
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6.5 | ↗ |
| Closed Height | 196.75 | ↗ |
| Closed Volume (cu. ft.) | 13.692 | ↗ |
| Closed Width (in) | 18.5 | ↗ |
| Duty Rating | Type IA | ↗ |
| Inside Width Base (in) | 6.25 | ↗ |
| Inside Width Fly (in) | 13.688 | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Max. Extended Length (ft) | 29 | ↗ |
| Maximum Standing Height (in) | 29’ | ↗ |
| Number of Steps | 32 | ↗ |
| Outside Width Base (in) | 17.375 | ↗ |
| Outside Width Fly (in) | 16.063 | ↗ |
| Rail Depth (in) | 3.3125 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | FE7232 | ↗ |
| Section Length (ft) | 16 | ↗ |
| Size | 32 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 32 | ↗ |
| Weight | 73 | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
