10-20 cfm Electric Air Compressor
The 10-20 cfm electric air compressor class delivers intermediate output suited to single pneumatic tools with moderate air consumption. This size sits between entry-level units (up to 10 cfm) and higher-output rotary models (20-50 cfm), occupying the middle rung of the electric air compressor ladder. These machines typically run on single-phase electric motors and provide sufficient capacity for continuous operation of framing nailers or small impact wrenches.
Cat classes
Choisissez une classe de taille — la capacité et la portée varient selon la gamme.
Spécifications clés
| Spécification | Plage typique | Signification |
|---|---|---|
| Free air delivery | 10–19.5 cfm | Continuous air volume output measured at standard atmospheric conditions; defines tool compatibility |
| Engine power | 5–7.5 hp | Electric motor rating required to sustain rated cfm output over extended runtime |
| Max pressure | 116–175 psi | Peak tank pressure; most pneumatic tools operate at regulated 90 psi regardless of compressor maximum |
Comment choisir
This size class is appropriate when the work involves continuous operation of a single framing nailer, brad nailer, or small impact wrench on electric power. For finish nailers, small die grinders, or intermittent light-duty fastening, the Up to 10 cfm Electric Air Compressor band provides adequate capacity with lower power draw. When multiple tools run simultaneously, when spray guns or sandblasters are required, or when cfm demand exceeds 15 cfm continuously, the 20-50 cfm Electric Air Compressor class becomes necessary to avoid pressure drop and duty-cycle interruptions.
Ce que cette taille peut gérer
- Residential framing with pneumatic nailers on single-phase shop power
- Interior trim and millwork installation requiring sustained nailer operation
- Light automotive work using small impact wrenches and ratchets
- HVAC ductwork fastening with pneumatic staplers and fastening tools
- Furniture assembly or cabinet installation with brad nailers and pin drivers
- Small fabrication shops running one air tool at a time on 220V circuits
Sécurité et opération
- Regular condensate drainage from receiver tanks prevents moisture contamination of pneumatic tools and controls corrosion
- Pressure relief valves and pressure switches are safety-critical components requiring periodic inspection per manufacturer schedules
- Electric motors generate heat during extended duty cycles; adequate ventilation around cooling fans prevents thermal shutdown
- Hoses, couplers, and fittings must be rated for maximum compressor pressure to prevent separation under load
Transport et logistique
- Most units in this class feature wheeled frames or dolly-style bases for manual repositioning within the work area
- Weight and footprint allow transport in pickup beds or vans without lift equipment; permanent installation in workshops is common
Alimentation
- Units in the 5 hp range typically operate on 220V single-phase circuits; larger 7.5 hp models may require upgraded service
- Electric operation eliminates exhaust emissions, making this class suitable for enclosed spaces with adequate electrical service
- Sustained full-load operation requires dedicated branch circuits sized to motor nameplate amperage
Questions fréquentes
What differentiates a 10-20 cfm electric compressor from smaller units for nail gun use?
Can this size class operate two pneumatic tools simultaneously?
How does tank size relate to the cfm rating in this class?
Comparer les modèles populaires
Chercher par spécification →Normalisé aux mêmes unités. Un tiret signifie que la valeur n'a pas été publiée.
| Modèle | Débit d’air libre | Pression max | Puissance moteur |
|---|---|---|---|
| Gardner Denver EnviroAire ES Series ES5-ES40 | 14 cfm | 116 psi | 5 hp |
| California Air Tools CALAIR 80050BD | 18 cfm | 150 psi | 5 hp |

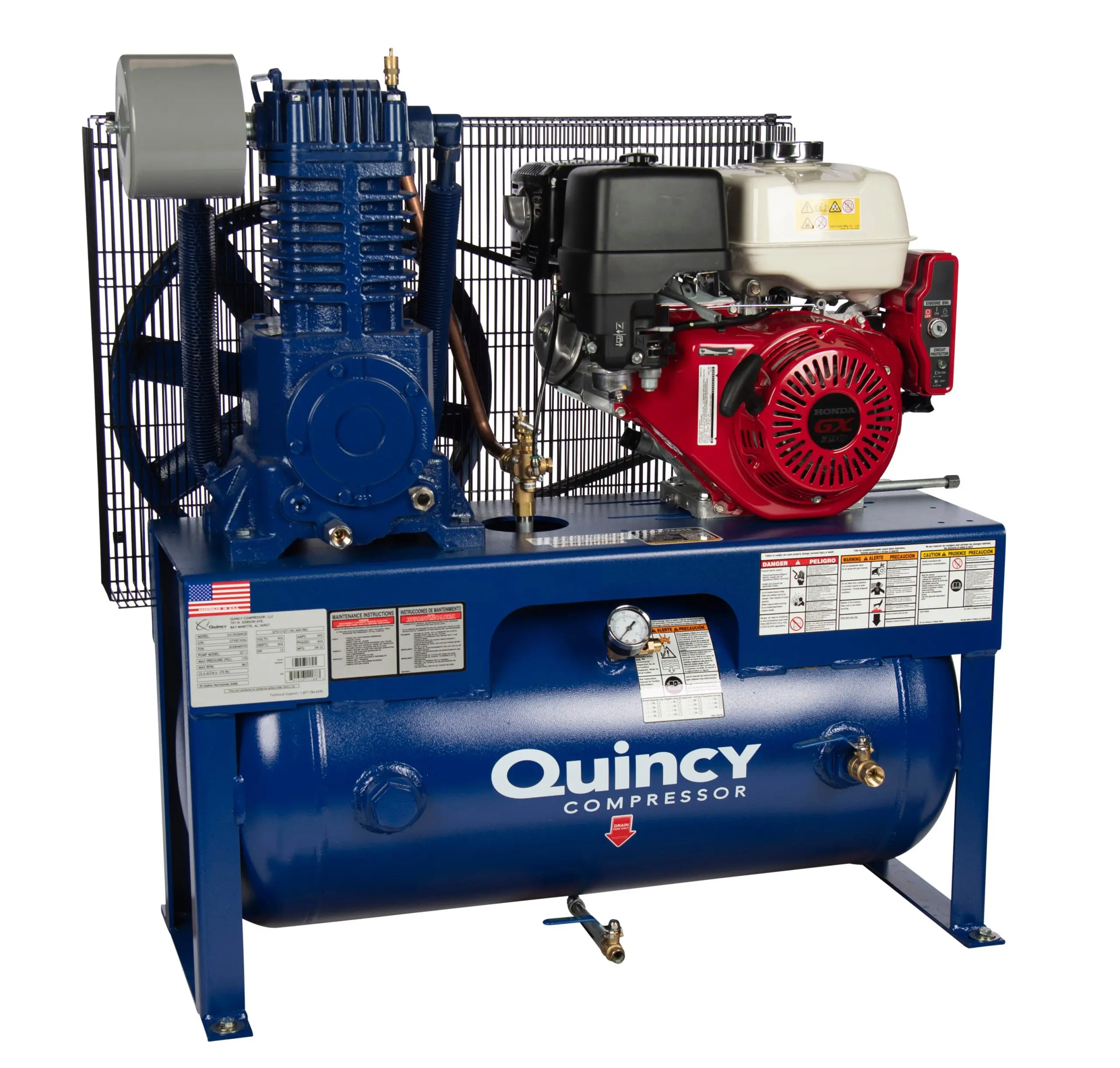

| Quincy QT-5 | 15 cfm | 175 psi | 5 hp |
| Quincy QP-5 | 17 cfm | 175 psi | 5 hp |
| Gardner Denver Hydrovane Simplex V/VR Series | 20 cfm | - | 8 hp |
| California Air Tools 20060CAD | 19 cfm | - | 6 hp |
