CAT CLASS: HQ-10375

18-26 ft Material Lift

The 18–26 ft material lift represents the tallest reach in the material lift category, designed for high-bay industrial and commercial work where ceiling heights, signage, and mechanical systems sit between 20 and 25 feet. This size class bridges the gap between mid-height lifts and scissor or boom platforms, offering vertical transport without the footprint or cost of mobile elevating work platforms. It is the final rung on the material lift ladder, with 12–18 ft lifts serving lower-ceiling work.

134

Models

Brands

Cat classes

Pick a size class — capacity and reach differ across the range.

Key specifications

Specification	Typical range	What it means
Lift height	18–25 ft (5.5–7.6 m)	Maximum vertical reach for positioning materials at high-bay ceiling or mezzanine level.
Load capacity	650–2,000 lb (295–907 kg)	Safe working load across models; heavier-duty frames in this class handle HVAC units and structural materials.
Platform size	Varies by model	Work surface dimensions determine whether tools, ductwork, or signage panels can be staged effectively.

How to choose

The 18–26 ft material lift is specified when work heights exceed 18 feet and the task involves positioning materials rather than supporting personnel aloft. High-bay warehouse ceilings, retail signage above mezzanines, and mechanical system tie-ins at 20–25 ft are typical applications. When ceiling or installation heights fall below 18 feet, the 12–18 ft Material Lift offers easier handling and lower transport height. For tasks requiring workers to perform extended assembly or finishing at height, a scissor lift or vertical mast lift may be more appropriate than any material lift.

What this size handles

Installing HVAC ductwork and diffusers in 22 ft warehouse ceilings
Hanging retail signage and lighting fixtures above mezzanine sales floors
Positioning electrical conduit and junction boxes for 20–24 ft industrial ceiling grids
Delivering materials to second-story commercial build-outs without elevator access
Staging drywall sheets and ceiling panels for high-bay interior fit-outs
Mounting security cameras and cable trays in distribution center interiors

Safety & operation

Outriggers or stabilizing base required on most models to prevent tipping when lifting loads above 18 ft
Material lifts are not rated for personnel; ANSI and OSHA standards prohibit riding the platform during lift operation
Load must be secured and balanced on platform; eccentric or overhanging loads increase tip risk at maximum height
Floor surface must be level and capable of supporting combined weight of lift, load, and dynamic forces during raising and lowering

Transport & logistics

Manual or powered base allows movement through standard commercial doorways when mast is lowered; check stowed height against truck bed or trailer clearance
Weight typically permits loading onto utility trailers or flatbed trucks with ramps or liftgate; some models require forklift for safe loading
Tall stowed height may require enclosed trailer or vertical clearance planning for transport under overhead obstacles

Power & supply

Most models in this class operate on 110V or 120V single-phase AC power, compatible with standard jobsite circuits
Electric winch or chain-drive systems; no fuel or emissions, suitable for indoor high-bay environments
Cord length and extension requirements depend on mast height and proximity to outlets in high-ceiling spaces

Frequently asked

What distinguishes an 18–26 ft material lift from a scissor lift at the same height?

Material lifts are designed solely to raise and lower tools and materials, not personnel. Scissor lifts are rated for workers to occupy the platform during elevation and include guardrails and controls aloft. Material lifts have smaller footprints and lower cost but cannot legally support workers at height.

Can this size class navigate through standard doorways and freight elevators?

When the mast is lowered, most 18–26 ft material lifts fit through 36-inch doorways and onto freight elevators, though stowed height may exceed 7 feet. Confirm dimensions against site access constraints, especially ceiling height in loading docks and corridors.

How does load capacity change as lift height increases?

Many models derate capacity at maximum extension due to increased lever arm and tip moment. The specified 295–907 kg range reflects maximum safe loads; operators must consult the manufacturer's load chart to determine allowable weight at each height increment.

Compare popular models

Find by spec →

Normalised to the same units. A dash means the figure was not published.

Model	Load capacity	Lift height	Engine power

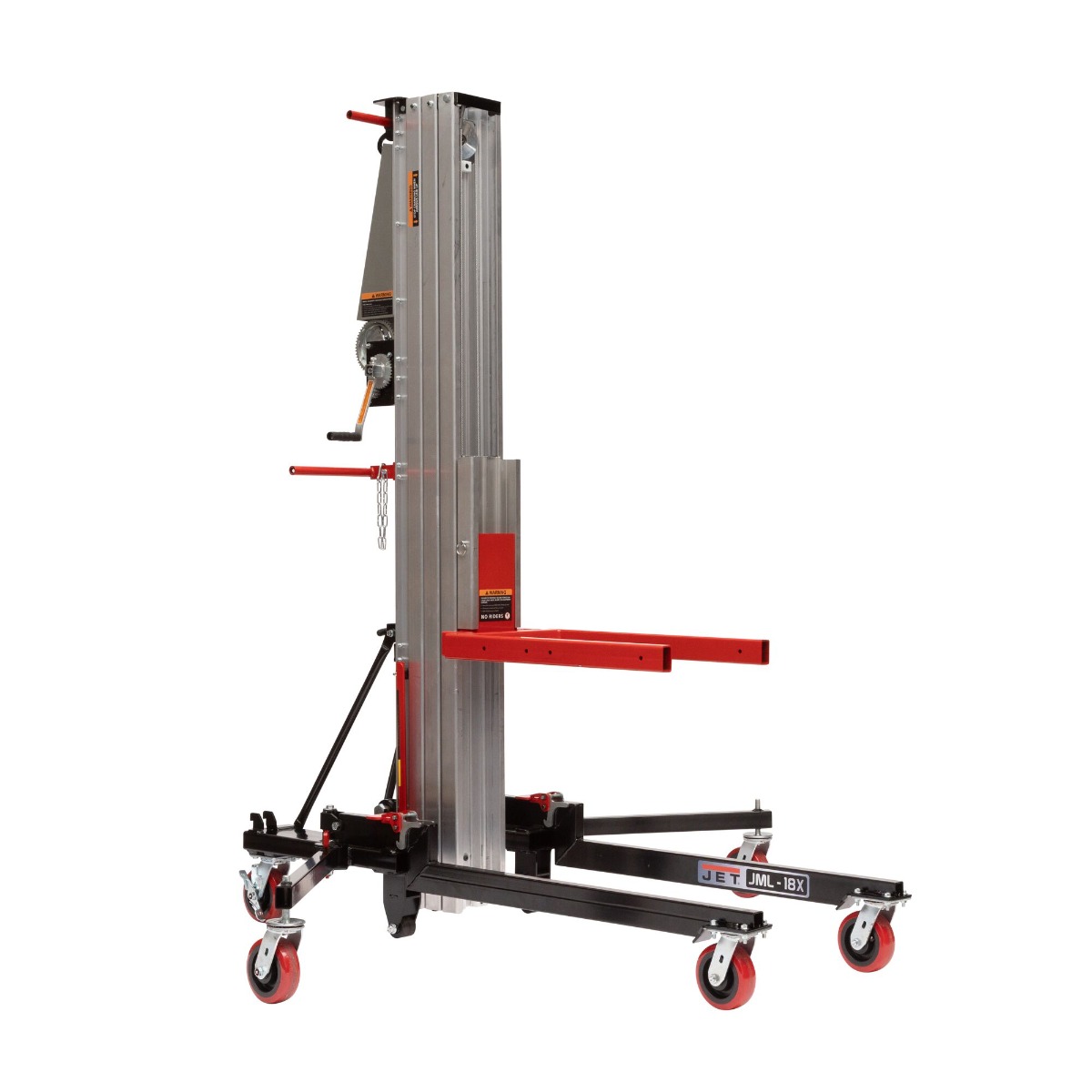

Jet JML-18X	650 lb (295 kg)	18 ft (5.5 m)	-

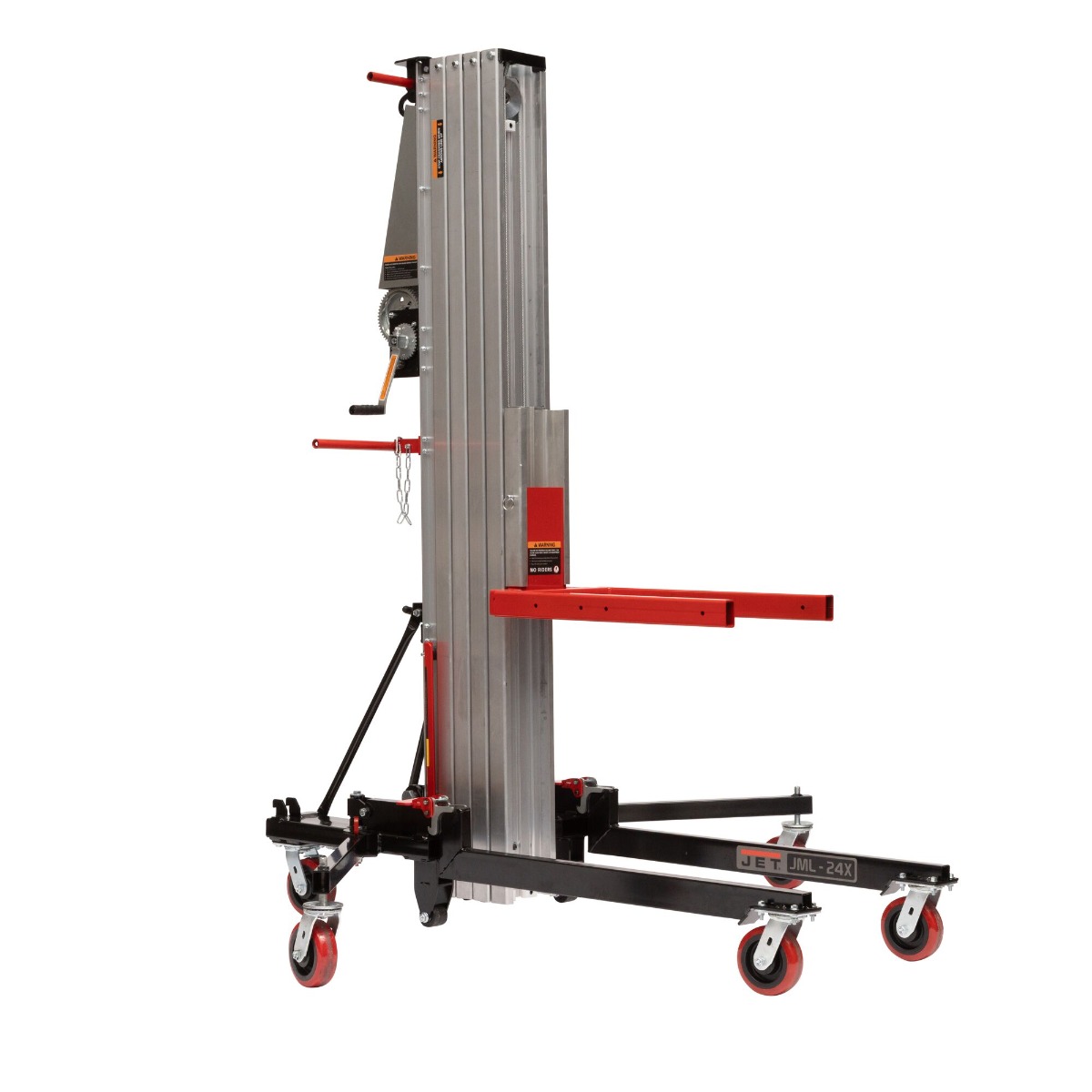

Jet JML-24X	650 lb (295 kg)	24 ft (7.3 m)	-
Jet SKY25	2,000 lb (907 kg)	25 ft (7.6 m)	-
Sumner ROUST-A-BOUT Lift	1,499 lb (680 kg)	20 ft (6.1 m)	-
