Elliott

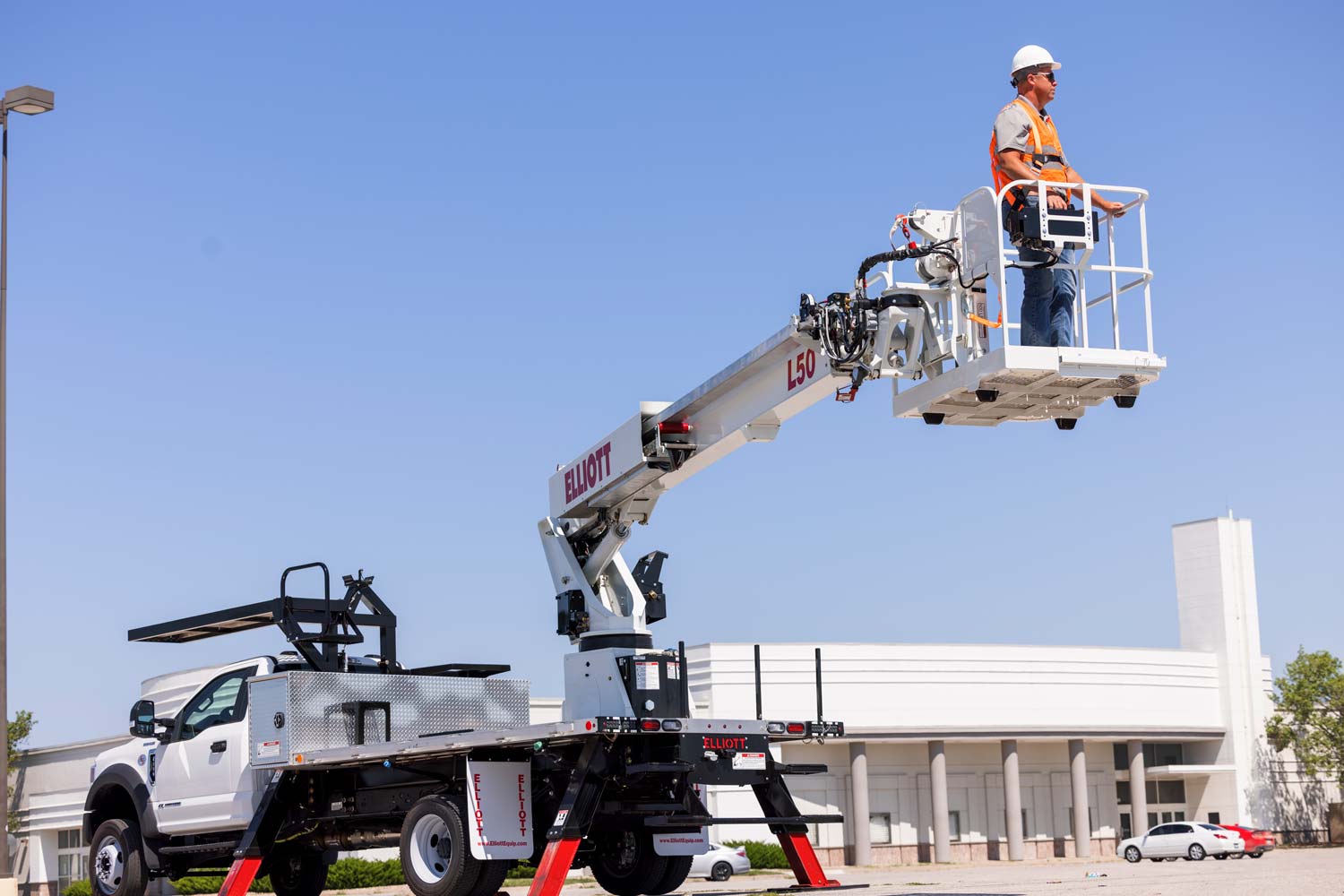

L50 HiReach
600 lb (272 kg)
Platform capacity
50 ft (15.2 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| MEC 45-J Telescopic Diesel | 99% | 600 lb (272 kg) | 50.9 ft (15.5 m) |
| JLG 460SJ | 98% | 600 lb (272 kg) | 52.1 ft (15.9 m) |
| Snorkel 460SJ | 98% | 600 lb (272 kg) | 52 ft (15.8 m) |
| JLG 460SJC | 95% | 600 lb (272 kg) | 45 ft (13.7 m) |
| Genie S-45 XC Telescopic Boom Lift | 94% | 659 lb (299 kg) | 51.6 ft (15.7 m) |
| Haulotte HT16 RTJ PRO | 93% | 551 lb (250 kg) | 52.8 ft (16.1 m) |
Documents
Full specifications
| Boom Sections | 2 | ↗ |
| Jib Winch Capacity | 500 lb (227 kg) | ↗ |
| Main Winch Capacity | 2,000 lb (907 kg) | ↗ |
| Outrigger Spread Front | 10 ft (3.0 m) | ↗ |
| Outrigger Spread Rear | 10 ft (3.0 m) | ↗ |
| Outrigger Type Front | A-Frame | ↗ |
| Outrigger Type Rear | A-Frame | ↗ |
| Overall Height | 11.6 ft (3.5 m) | ↗ |
| Platform Capacity | 600 lb (272 kg) | ↗ |
| Platform Size | 40x60 in | ↗ |
| Platform Type | EZR Removable | ↗ |
| Recommended Cab to Axle | 108 in (274 cm) | ↗ |
| Recommended GVWR | 19,500 lb (8,845 kg) | ↗ |
| Unit Weight (Bare) | 8,400 lb (3,810 kg) | ↗ |
| Working Height | 50 ft (15.2 m) | ↗ |
| Working Side Reach | 40 ft (12.2 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
