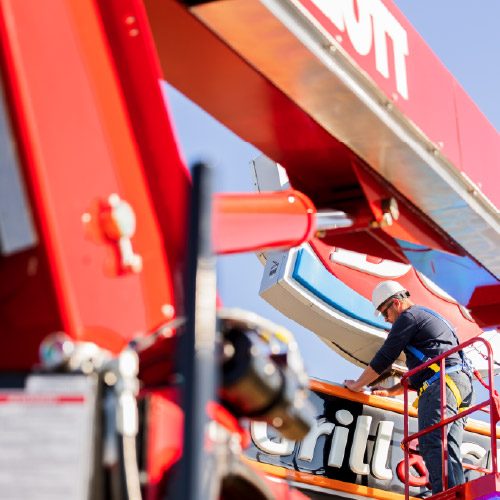

Elliott
L65 HiReach
600 lb (272 kg)
Platform capacity
65 ft (19.8 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| MEC 65-J Telescopic Diesel | 100% | 600 lb (272 kg) | 65 ft (19.8 m) |
| Snorkel 600S All Terrain | 98% | 600 lb (272 kg) | 67.3 ft (20.5 m) |
| MEC 60-J Telescopic Diesel | 96% | 600 lb (272 kg) | 60 ft (18.3 m) |
| Niftylift SP65SE | 94% | 619 lb (281 kg) | 71 ft (21.6 m) |
| XCMG XGS20ACK | 94% | 661 lb (300 kg) | 67.3 ft (20.5 m) |
| XCMG XGS20K | 94% | 661 lb (300 kg) | 67.3 ft (20.5 m) |
Documents
Full specifications
| Boom Sections | 3 | ↗ |
| Jib Winch Capacity | 500 lb (227 kg) | ↗ |
| Main Winch Capacity | 5,900 lb (2,676 kg) | ↗ |
| Outrigger Spread Front | 12 ft (3.7 m) | ↗ |
| Outrigger Spread Rear | 17 ft (5.2 m) | ↗ |
| Outrigger Type Front | Out-Down | ↗ |
| Outrigger Type Rear | Out-Down | ↗ |
| Overall Height | 12 ft (3.7 m) | ↗ |
| Platform Capacity | 600 lb (272 kg) | ↗ |
| Platform Rotation | 160 deg | ↗ |
| Platform Size | 40x60 in | ↗ |
| Platform Type | EZR Removable | ↗ |
| Recommended Cab to Axle | 132 in (335 cm) | ↗ |
| Recommended GVWR | 25,999 lb (11,793 kg) | ↗ |
| Unit Weight (Bare) | 13,500 lb (6,123 kg) | ↗ |
| Working Height | 65 ft (19.8 m) | ↗ |
| Working Side Reach | 59 ft (18.0 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
